Transmission Insulator and Retainer
Transmission Insulator and RetainerRemoval

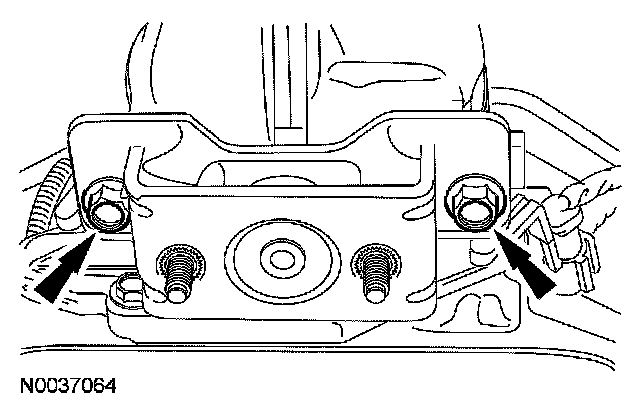

1. Remove the transmission support crossmember.

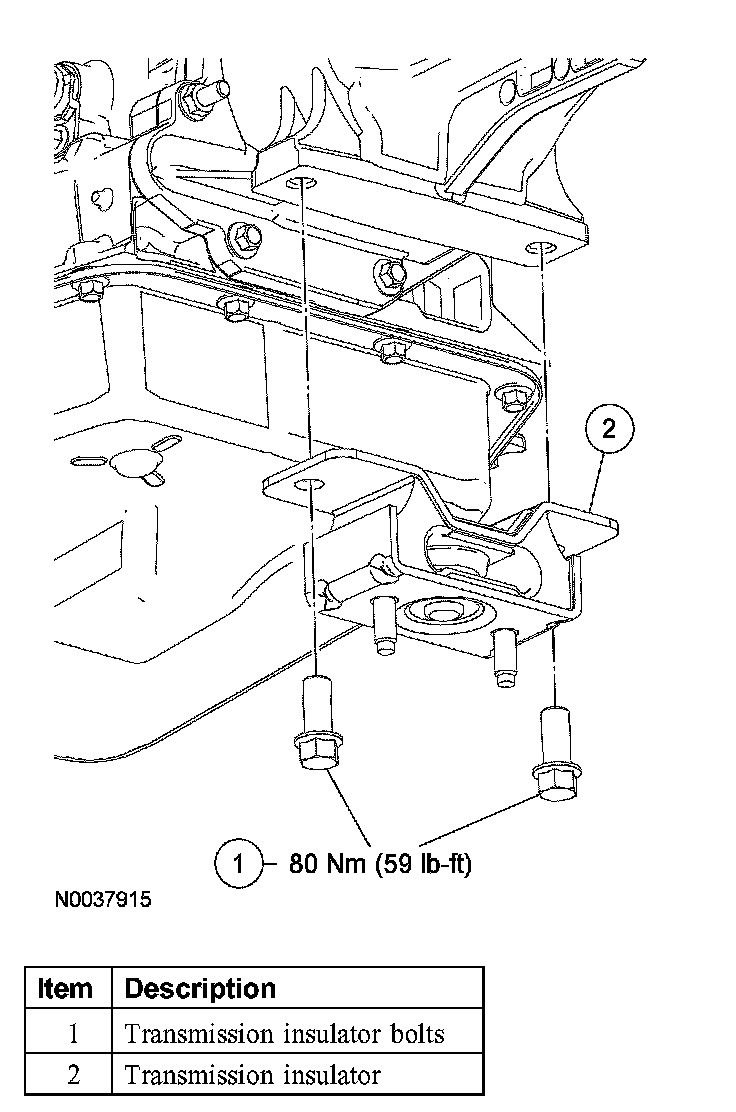

2. Remove the transmission support Insulator.

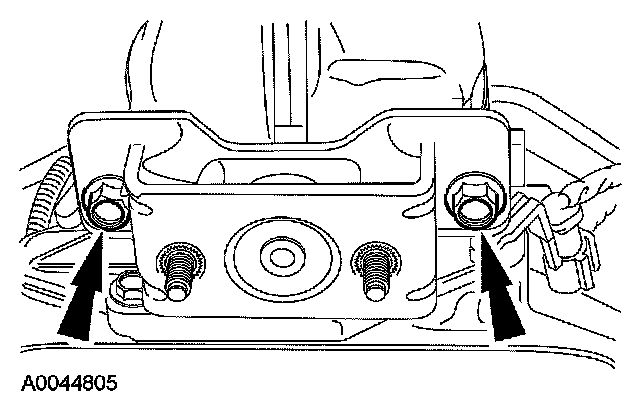

3. To install, reverse the removal procedure.
^ Tighten to 80 Nm (59 ft.lbs.).
