Transmission Filler Tube Removal and Installation

Transmission Filler Tube





Removal and Installation

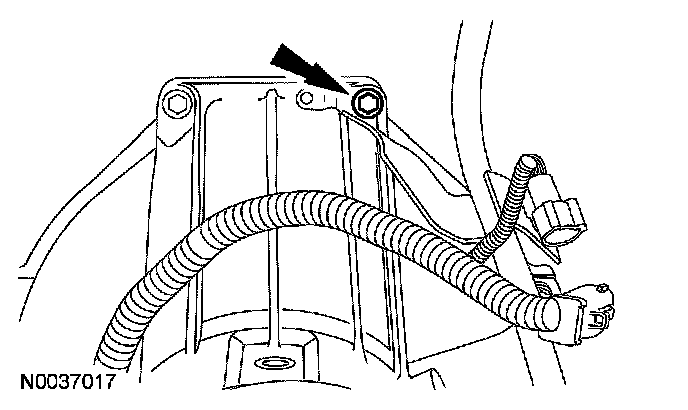

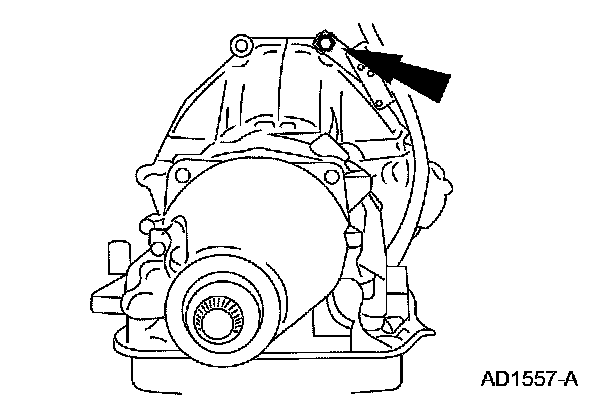

1. Remove the bolt.

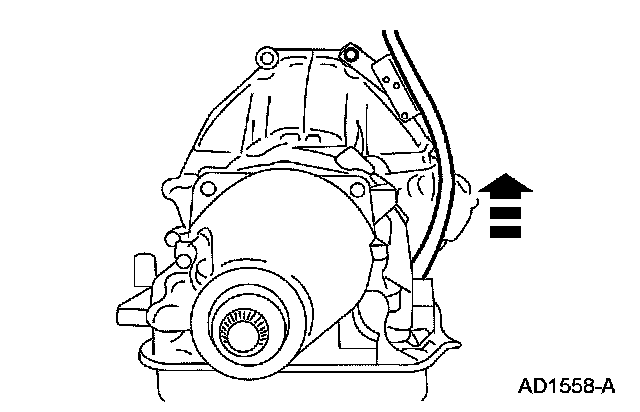

2. Remove the fluid filler tube.

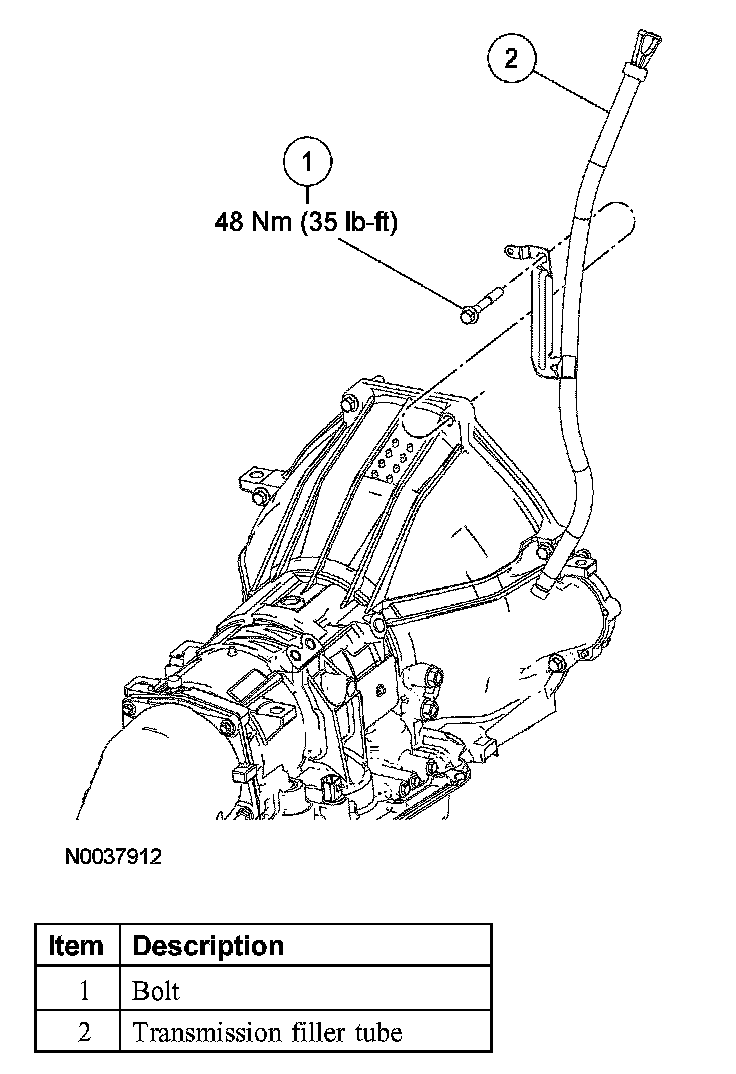

3. To install, reverse the removal procedure.
^ Tighten to 48 Nm (35 ft. lbs.).
