Test A: The Ignition Switch is Inoperative
Test A: The Ignition Switch Is InoperativeNormal Operation
Fused battery voltage is provided to the ignition switch from battery junction box (BJB) fuses 1 (20A) and 2 (25A) along circuits 1050 (LG/VT) and 1715 (RD) respectively. The ignition switch then provides power to the central junction box (CJB), the driver door module and the lighting control module through several different circuits depending on the ignition switch state of operation. The ignition switch has 4 possible states of operation:
^ OFF No power on any circuits.
^ ACC Power on circuit 296 (WH/VT).
^ RUN - Power on circuits:
- 296 (WH/VT)
- 1717 (VT/OG)
- 687 (GY/YE)
- 294 (WH/LB)
^ START - Power on circuits:
- 1717 (VT/OG)
- 1522 (DG)
Possible Causes
^ Fuse(s)
^ Circuit open
^ Circuit shorted
^ Ignition switch

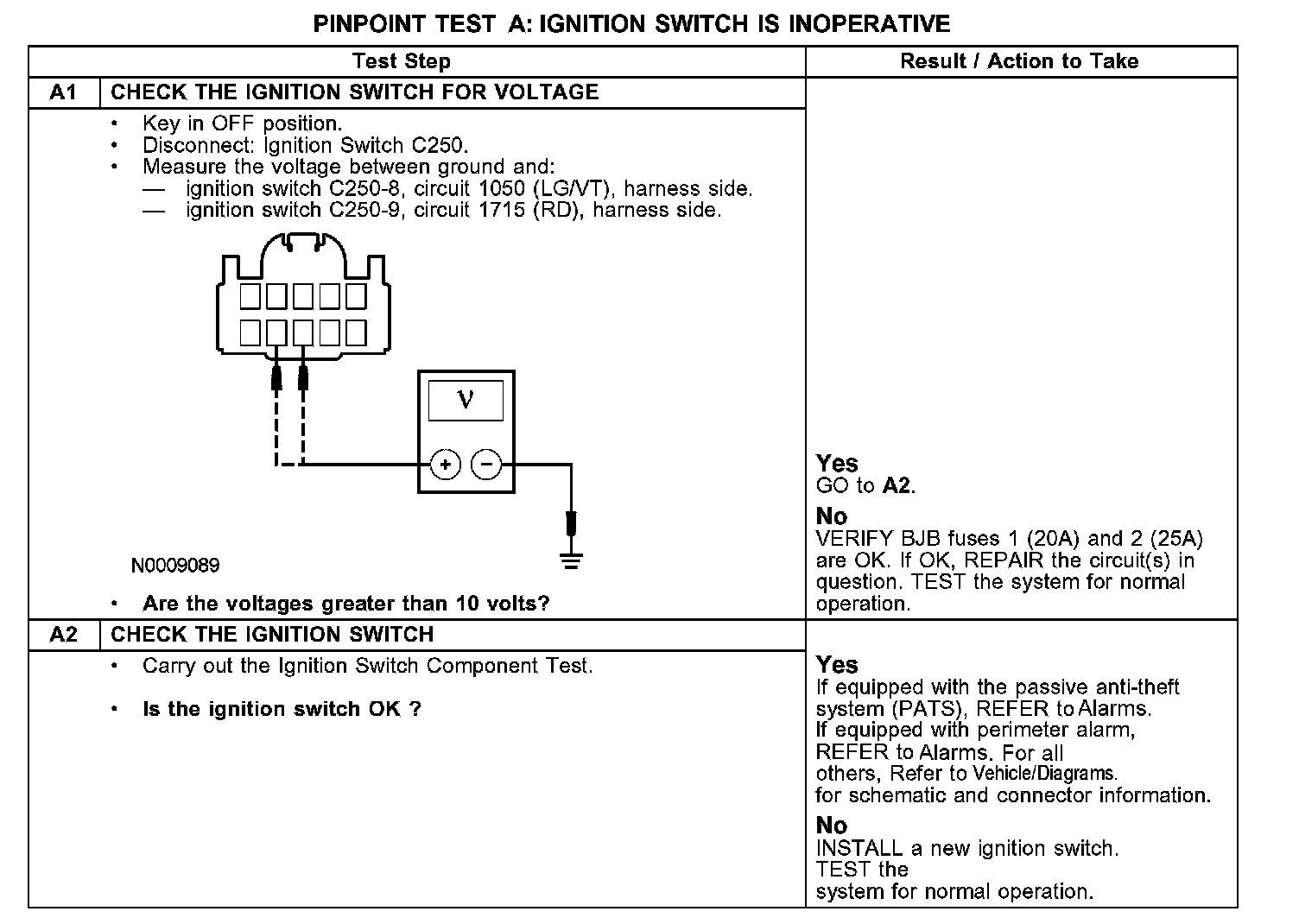

A1-A2:
