Pump

Power Steering Pump

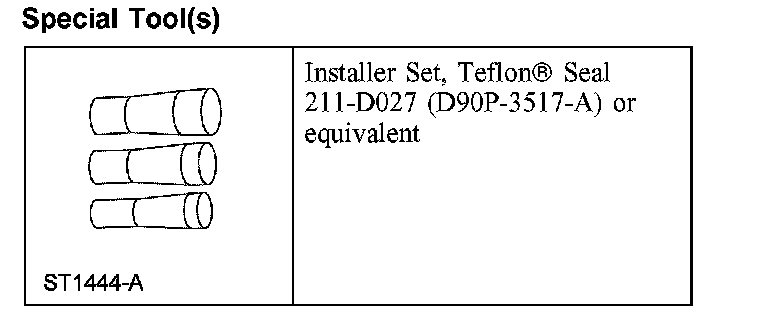

Special Tool(s):

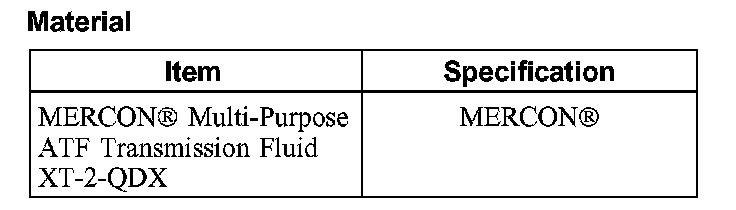

Material:

Removal and Installation

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

1. Remove the drive belt.
2. Remove the power steering pulley.
3. Release the clamp and disconnect the hose.

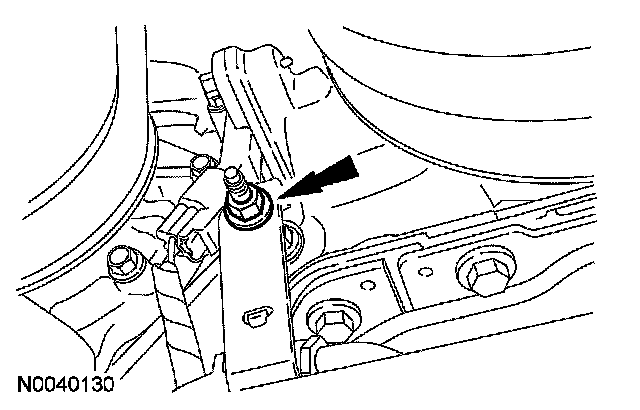

4. Remove the pressure line bracket-to-engine nut.
^ To install, tighten to 7 Nm (62 inch lbs.).
5. Disconnect the pressure line-to-pump fitting.
^ Discard the Teflon O-ring seal.
- To install, tighten to 65 Nm (48 ft. lbs.).

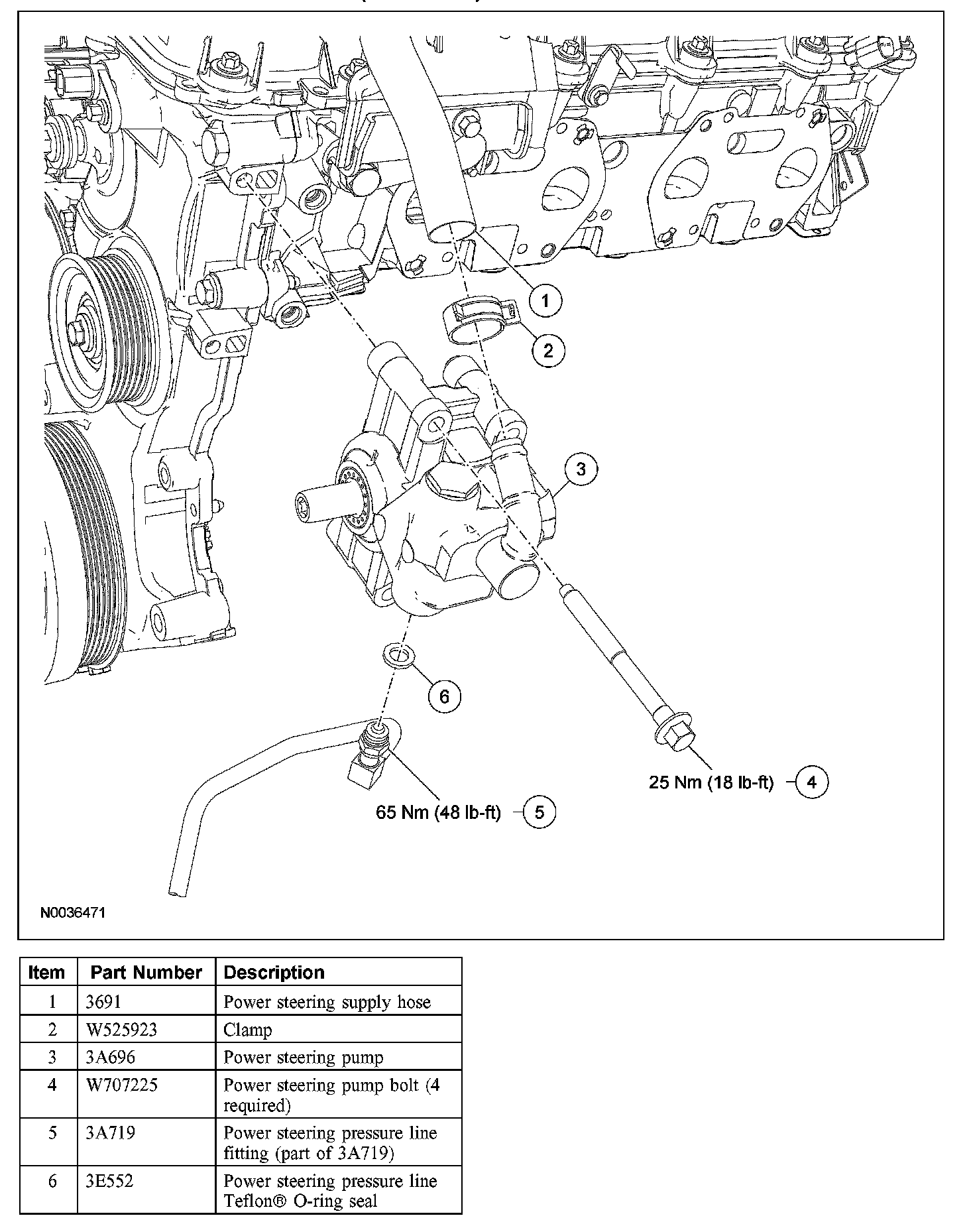

6. Remove the 4 bolts and the power steering pump.
^ To install, tighten to 25 Nm (18 ft. lbs.).





7. To install, reverse the removal procedure.

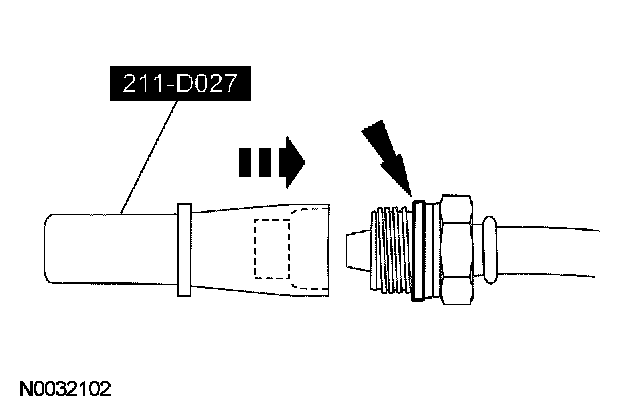

^ Using the special tool, install a new Teflon seal on the pressure line-to-pump fitting.
^ Fill and leak check the system.
