Evaporative Emissions Hose: Service and Repair

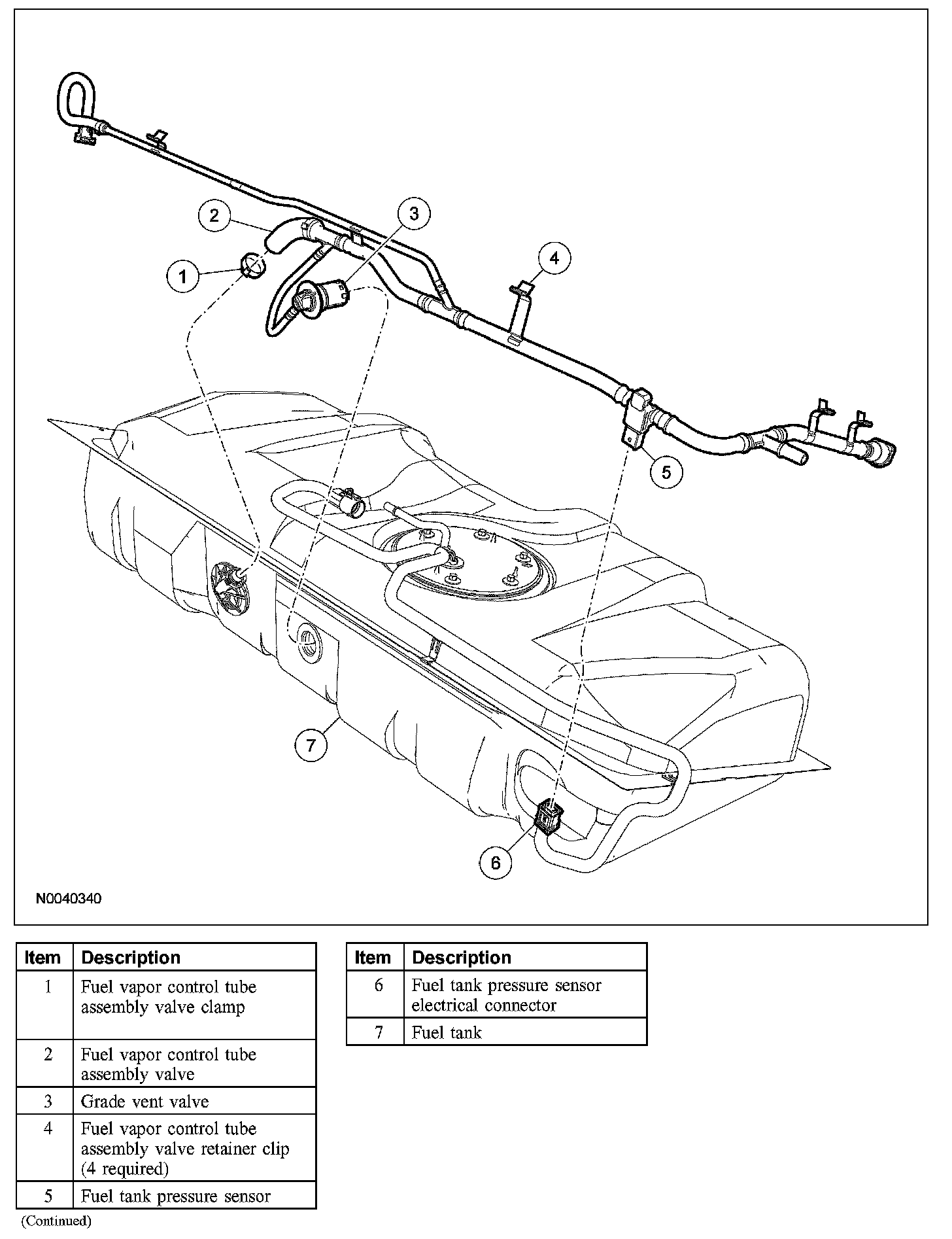

FUEL VAPOR CONTROL TUBE ASSEMBLY VALVE







Removal and Installation
1. Remove the fuel tank.
2. Disconnect the fuel tank pressure sensor electrical connector.
3. Remove the grade vent valve from the fuel tank.
4. Remove the 4 fuel vapor control tube assembly valve retainer clips from the fuel tank.
5. Release the clamp remove the vapor control tube assembly valve from the fuel tank.

6. NOTE: Lubricate all O-ring seals with clean engine oil.

To install, reverse the removal procedure.
- Leak test the system. Evaporative Emission System Leak Test
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
