Footwell Duct - Rear

FOOTWELL DUCT - REAR

Removal and Installation
1. Remove the front seats.

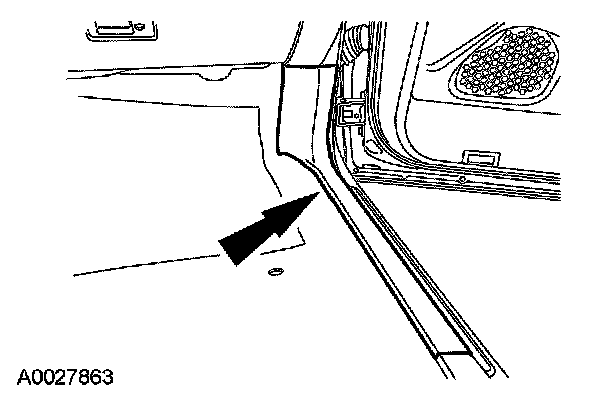

2. Remove the RH lower A-pillar trim panel.

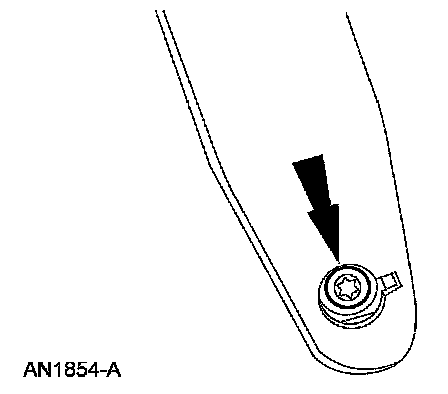

3. Remove the RH front safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

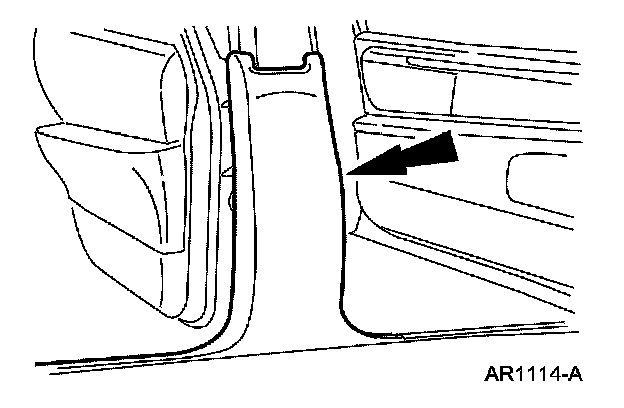

4. Remove the RH lower B-pillar finish panel.
5. Position the carpet away from the rear footwell duct.







6. Detach the wire harness from the rear footwell duct.

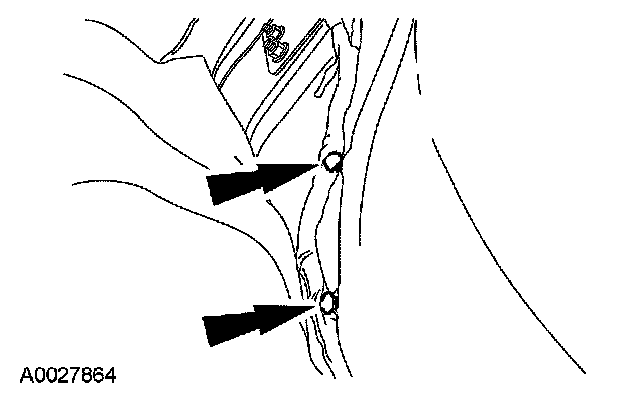

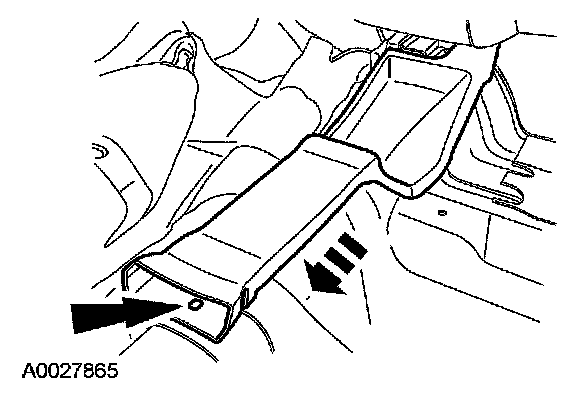

7. Remove the rear footwell duct pin-type retainer and the rear footwell duct.
8. To install, reverse the removal procedure.
