Front Bumper Reinforcement: Service and Repair

BUMPER ISOLATOR - FRONT

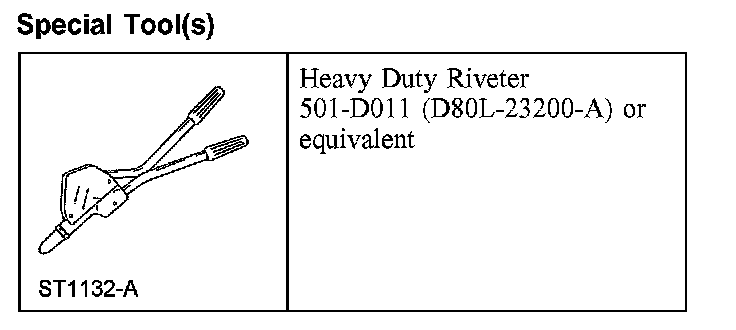

Special Tool(s):

Special Tool(s)

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Remove the front bumper cover.
2. Remove the 5 rivets and the front bumper isolator.
3. To install, reverse the removal procedure.
- Use the special tool to install new rivets.
