Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Power Steering Pressure Control Valve >> Service and Repair

Power Steering Pressure Control Valve: Service and Repair

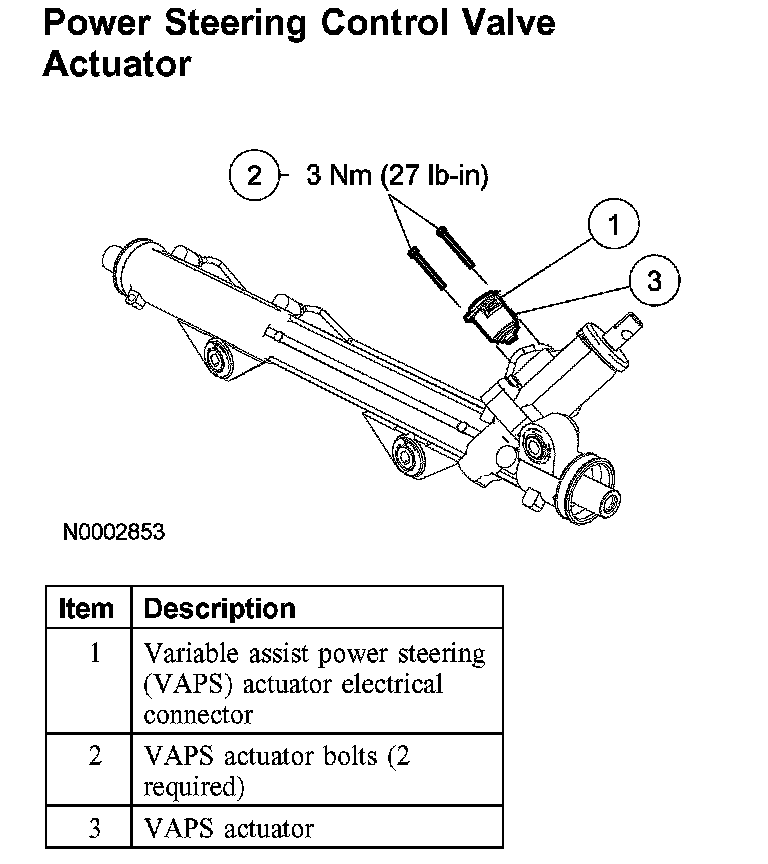

Power Steering Control Valve Actuator

Power Steering Control Valve Actuator:





Removal and Installation
1. Disconnect the variable assist power steering (VAPS) actuator electrical connector.
2. Remove the 2 bolts and the VAPS actuator.
^ To install, tighten to 3 Nm (27 inch lbs.).

3. To install, reverse the removal procedure.
