Rear Suspension - Exploded View
Rear Suspension - Exploded View

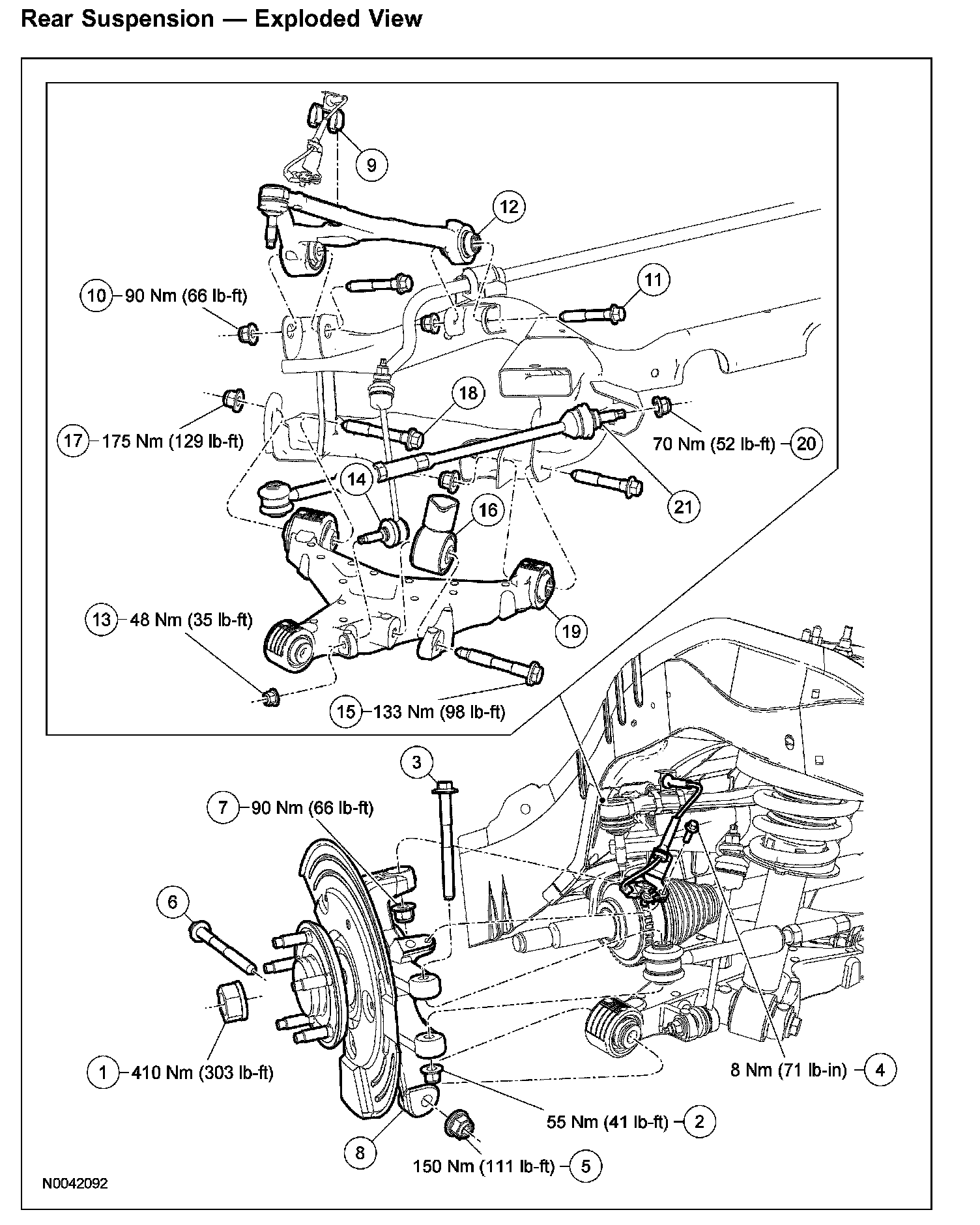

Rear Suspension - Exploded View (Part 1):
Rear Suspension - Exploded View (Part 2):
