Compressor Manifold and Tube Assembly

COMPRESSOR MANIFOLD AND TUBE ASSEMBLY

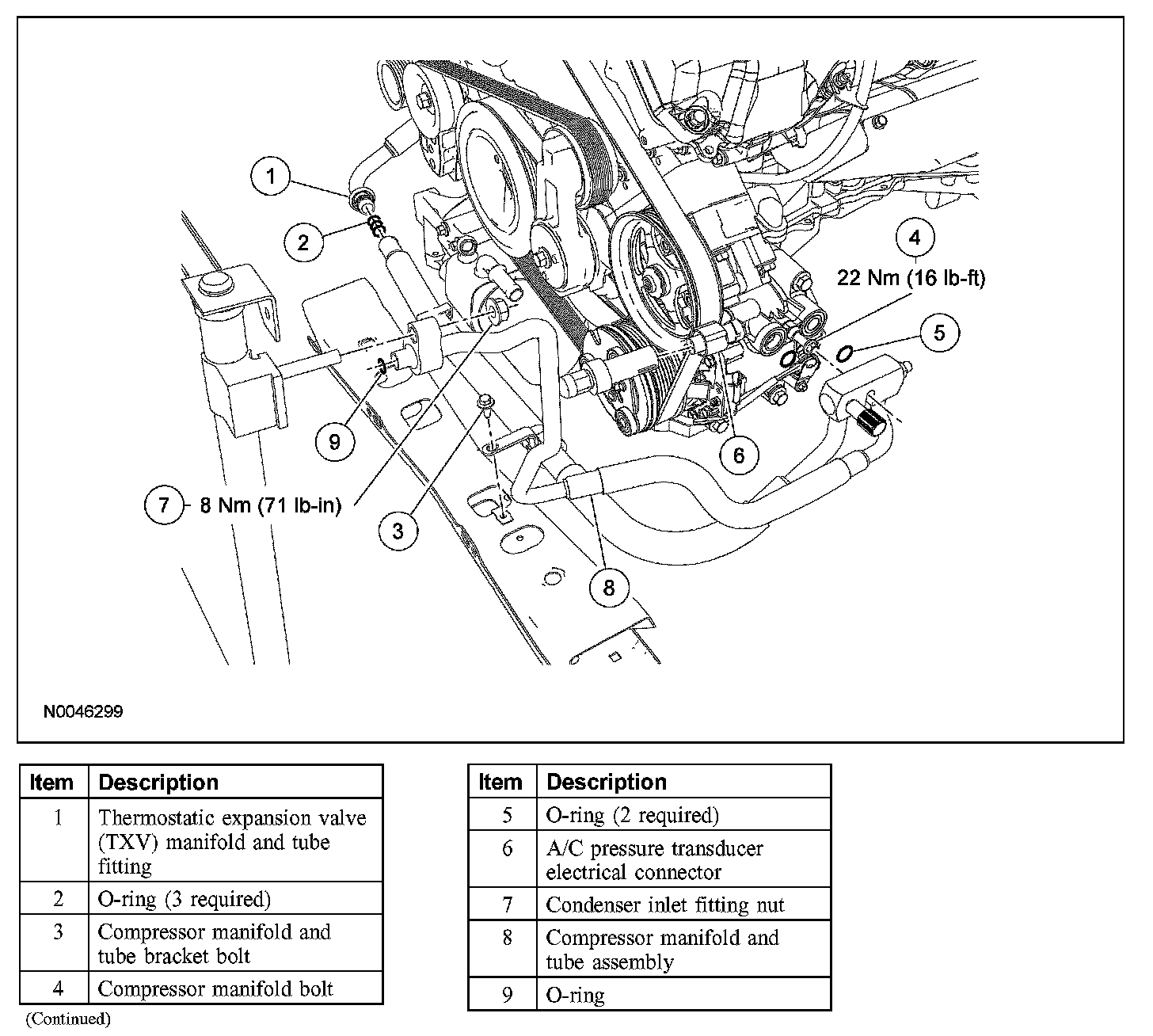

Removal and Installation

NOTE: Installation of a new receiver/drier is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier.

1. Recover the refrigerant.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Remove the center and RH deflector shields.
4. Disconnect the thermostatic expansion valve (TXV) manifold and tube fitting.
- Discard the O-ring seals.

5. Remove the compressor manifold and tube bracket bolt.
6. Loosen the compressor manifold bolt and detach the compressor manifold from the A/C compressor.
- Discard the O-ring seals.
- To install, tighten to 22 Nm (16 lb-ft).

7. Disconnect the A/C pressure transducer electrical connector.
8. Remove the condenser inlet fitting nut.
- Discard the O-ring seal.
- To install, tighten to 8 Nm (71 lb-in).

9. Remove the compressor manifold and tube assembly.
10. To install, reverse the removal procedure.
- Install new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

11. Evacuate, leak test and charge the refrigerant system.
