Rear Bumper Reinforcement: Service and Repair

REAR BUMPER

Part 1:

Part 2:

Exploded View

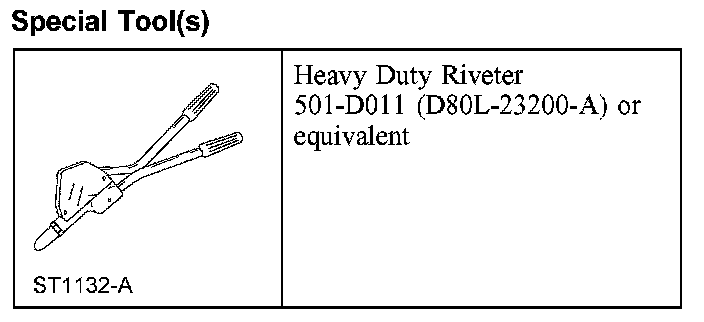

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Remove the rear bumper cover.
2. Remove the 2 rivets and the rear bumper cover isolator.
- Use the special tool to install the new rivets.

3. Remove the bolt and the exhaust bracket.
- To install, tighten to 30 Nm (22 lb-ft).

4. Remove the 4 bolts and the rear bumper.
- To install, tighten to 23 Nm (17 lb-ft).

5. To install, reverse the removal procedure.
