Subwoofer Amplifier

SUBWOOFER AMPLIFIER

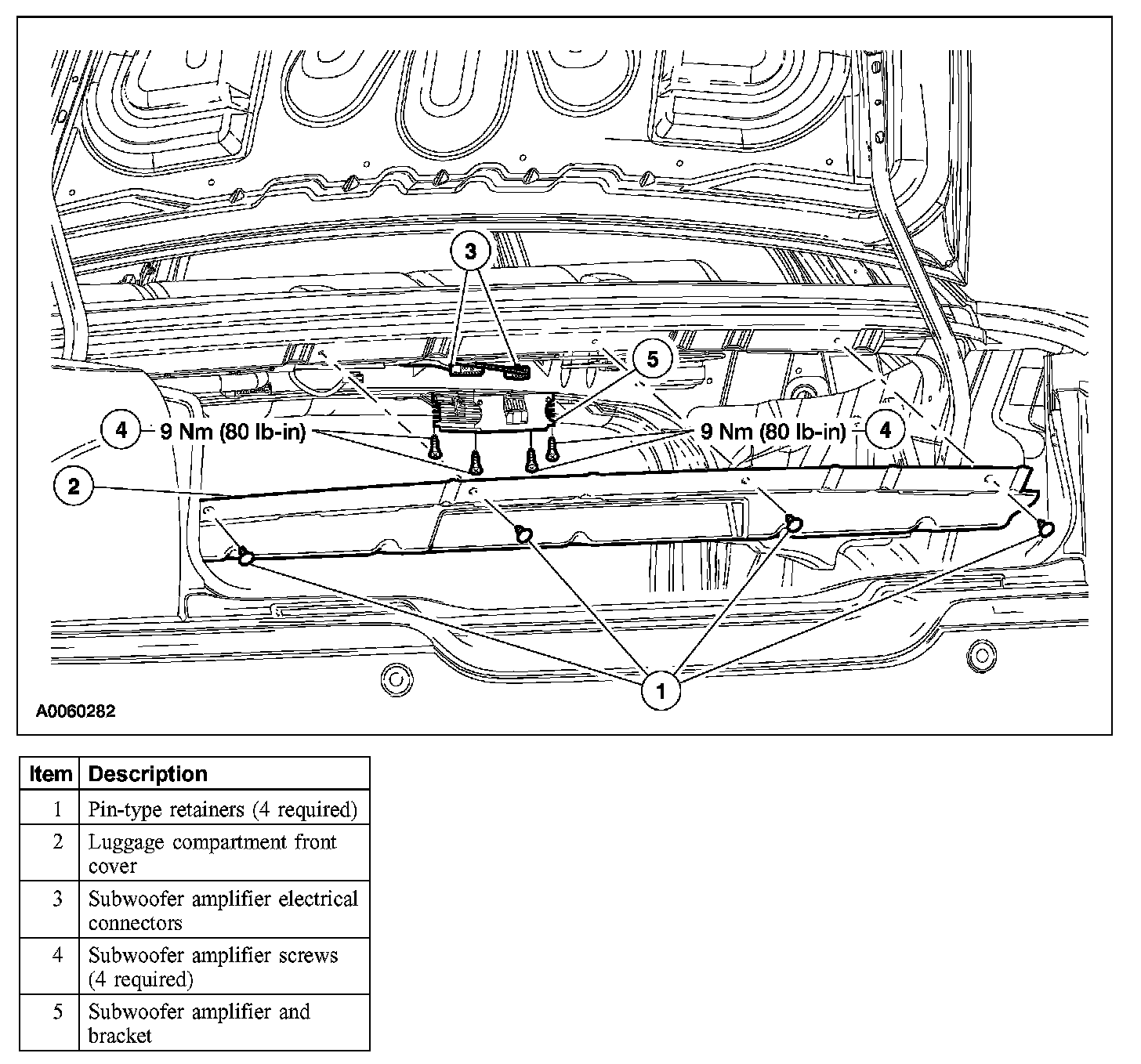

Removal and Installation
1. Disconnect the battery.
2. Remove the 4 pin-type retainers and the luggage compartment front cover.
3. Remove the 4 screws and the subwoofer amplifier and bracket.
- Disconnect the electrical connectors.
- To install, tighten to 9 Nm (80 lb-in).

4. To install, reverse the removal procedure.
