Audio Amplifier

AUDIO AMPLIFIER

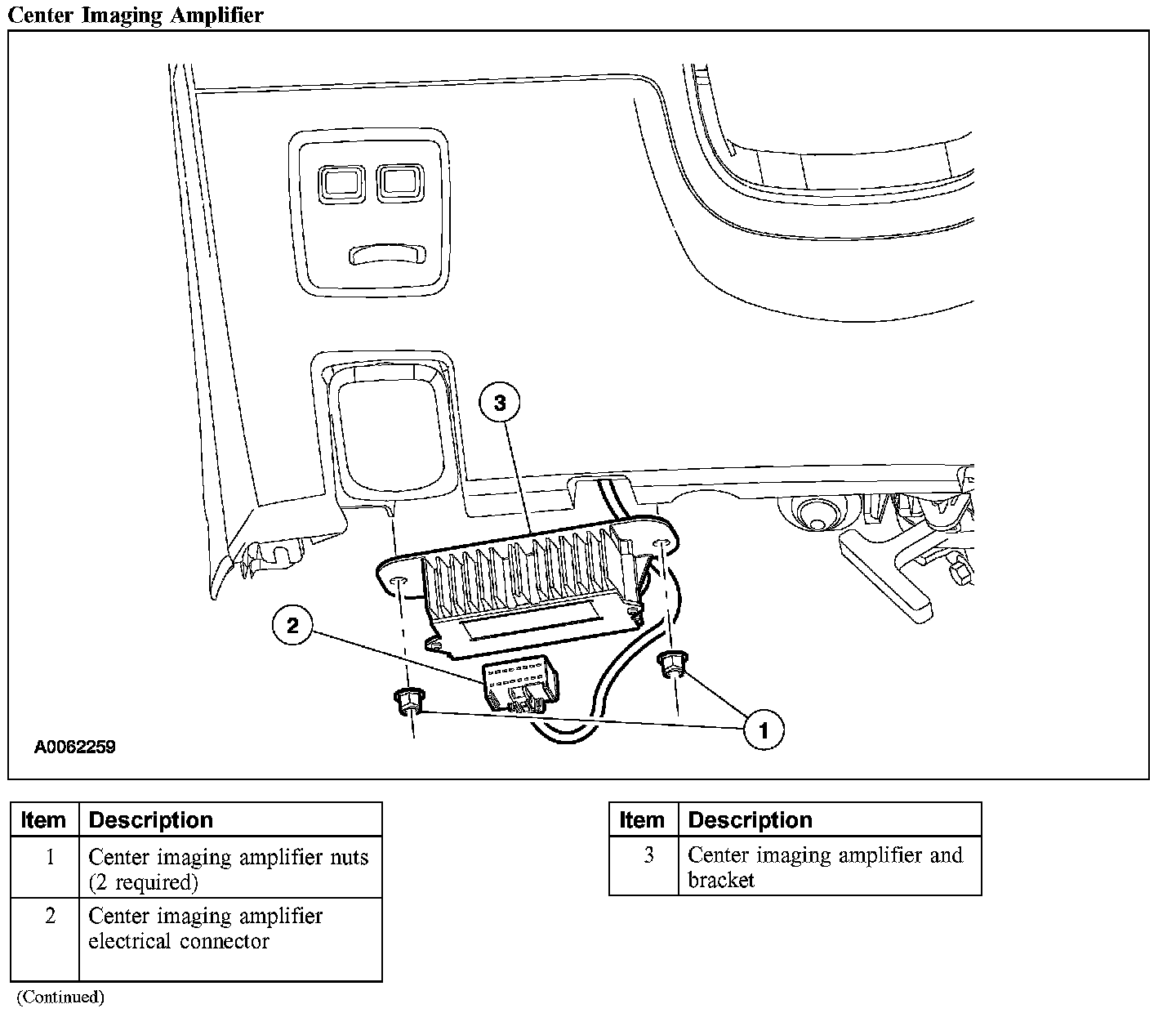

Center Imaging Amplifier:

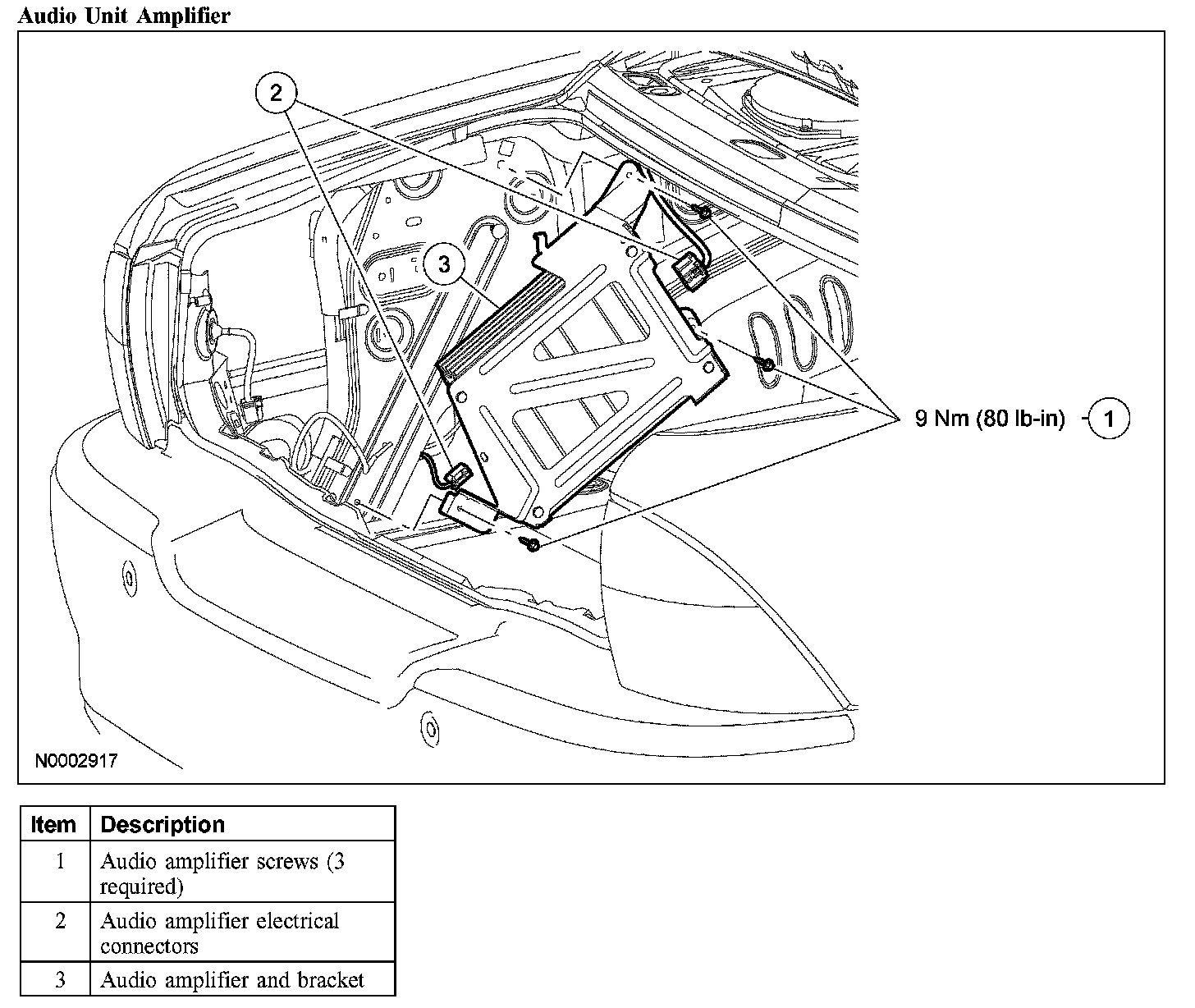

Audio Unit Amplifier:

Removal and Installation

All Amplifiers
1. Disconnect the battery.

Center Imaging Amplifier
2. Remove the driver cowl side trim panel.
3. Remove the 2 center imaging amplifier nuts and the center imaging amplifier.
- Disconnect the center imaging amplifier electrical connector.

Audio Unit Amplifier
4. Remove the LH trunk trim panel.
5. Remove the 3 audio amplifier screws and the audio amplifier and bracket.
- Disconnect the audio amplifier electrical connectors.
- To install, tighten to 9 Nm (80 lb-in).

All Amplifiers
6. To install, reverse the removal procedure.
