Antenna, Navigation: Service and Repair

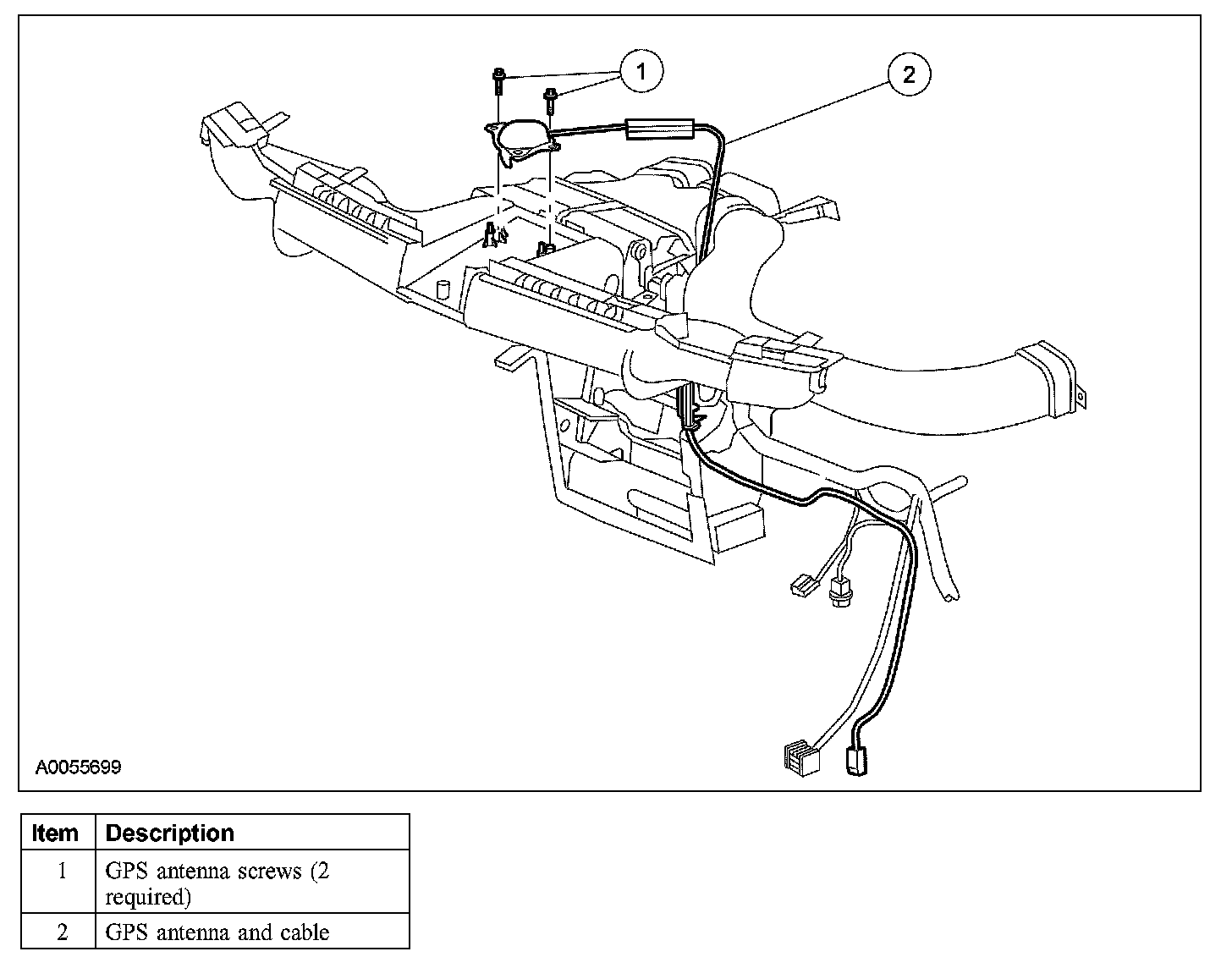

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation
1. Disconnect the battery.
2. Remove the defroster duct.
3. Remove the 2 GPS antenna screws.
4. Disconnect the cable and remove the GPS antenna.
5. To install, reverse the removal procedure.
