Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Rear Electronic Module (REM) C420f

Rear Electronic Module (REM) C420f

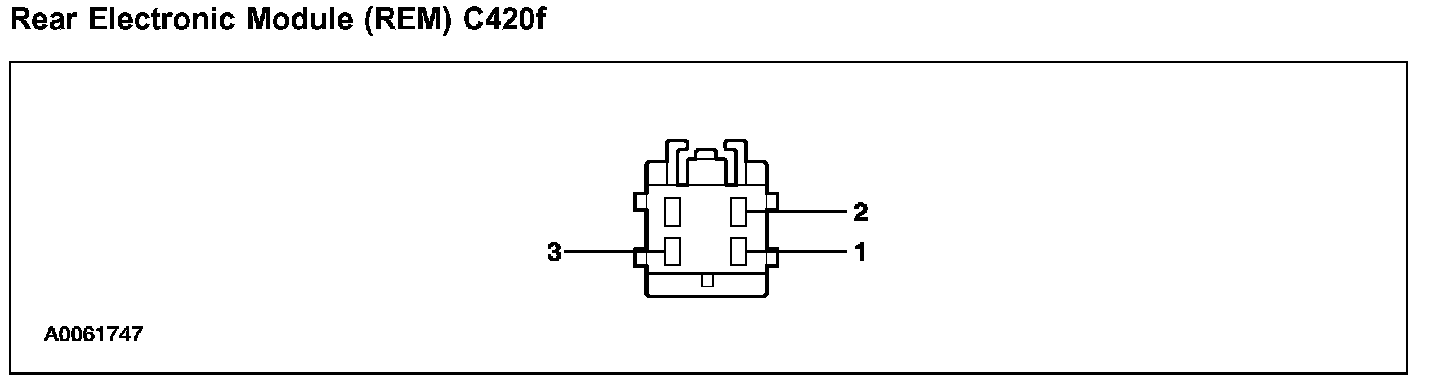

Rear Electronic Module (REM) C420f (Part 1):

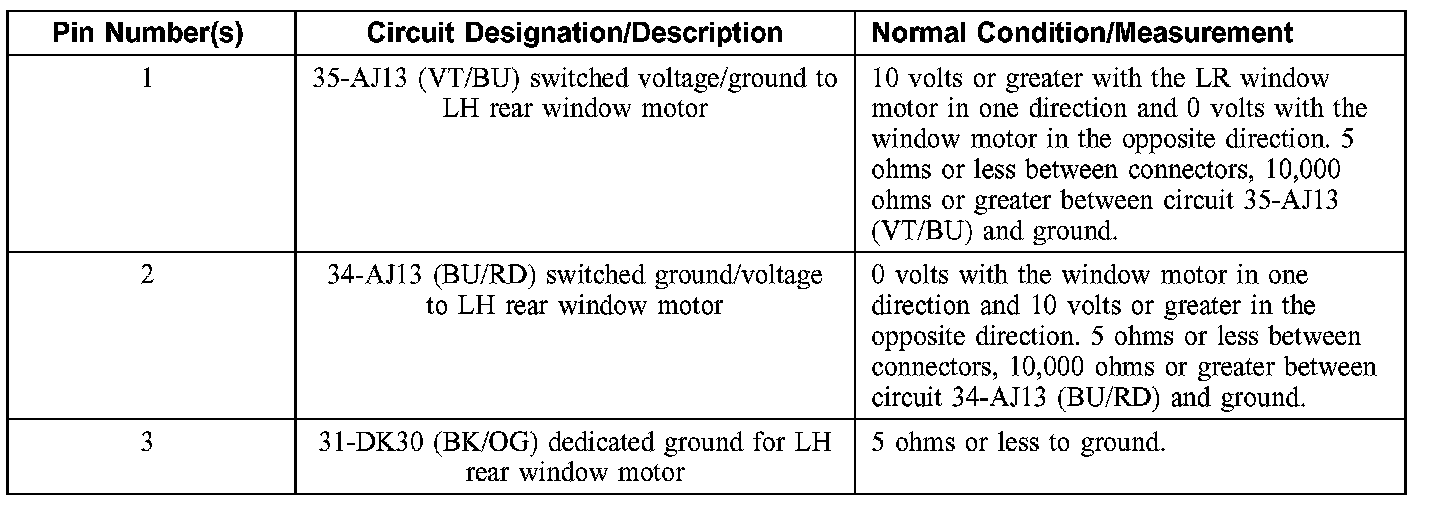

Rear Electronic Module (REM) C420f (Part 2):
