Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Climate Controlled Seat Module >> Passenger Side

Passenger Side

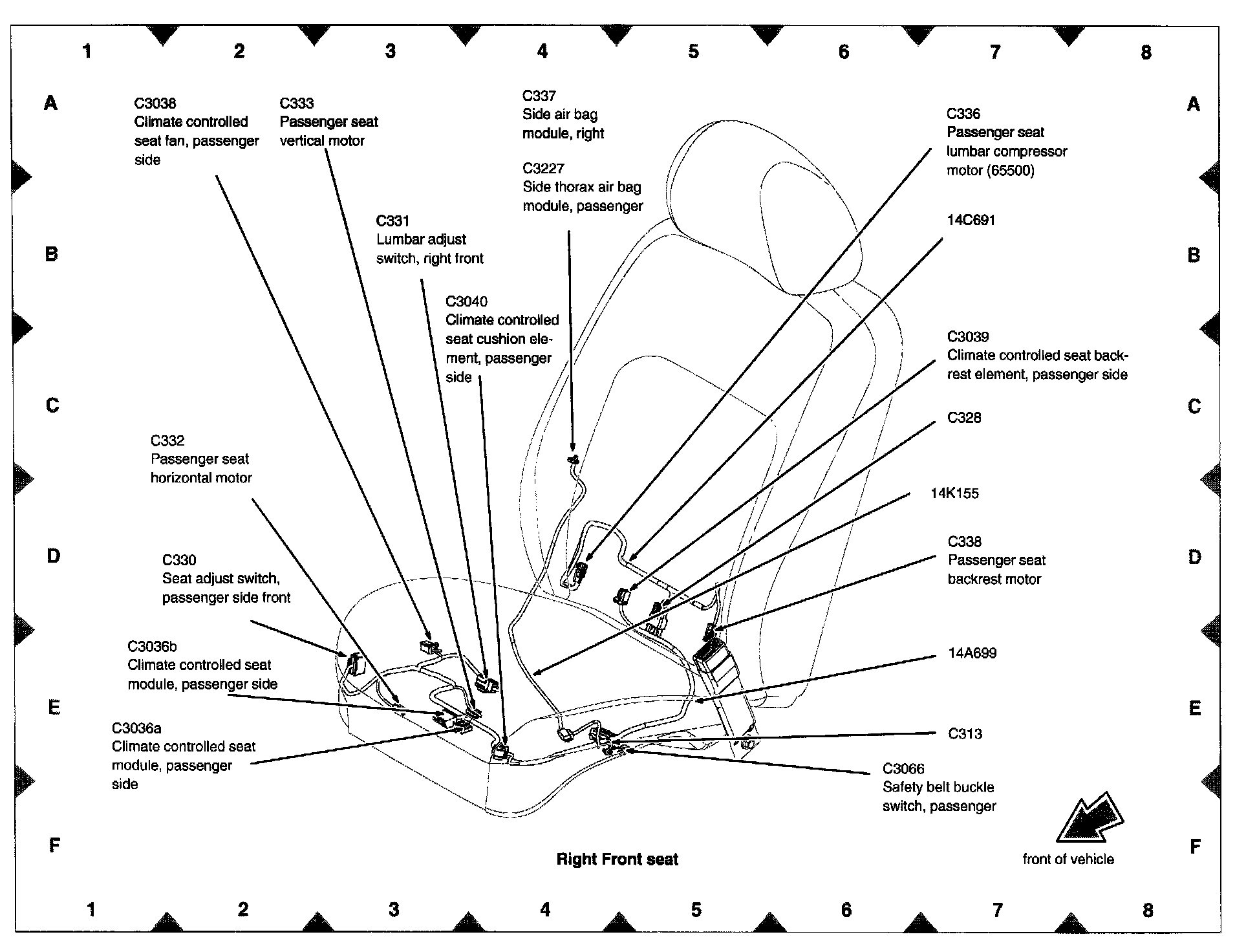

View 151-35 (Right Front Seat):
