Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Front Electronic Module (FEM) - C201B

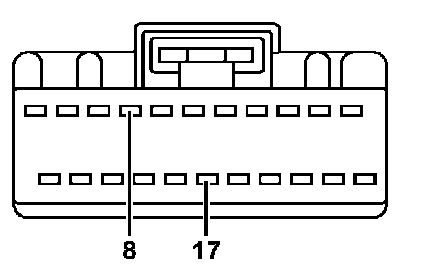

Front Electronic Module (FEM) - C201B

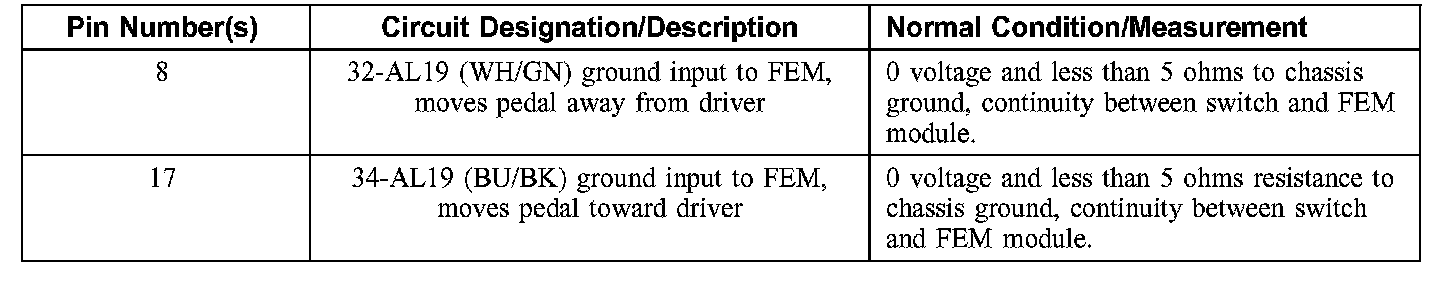

Part 1:



Part 2:
