Home
>>
Lincoln
>>
2003
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

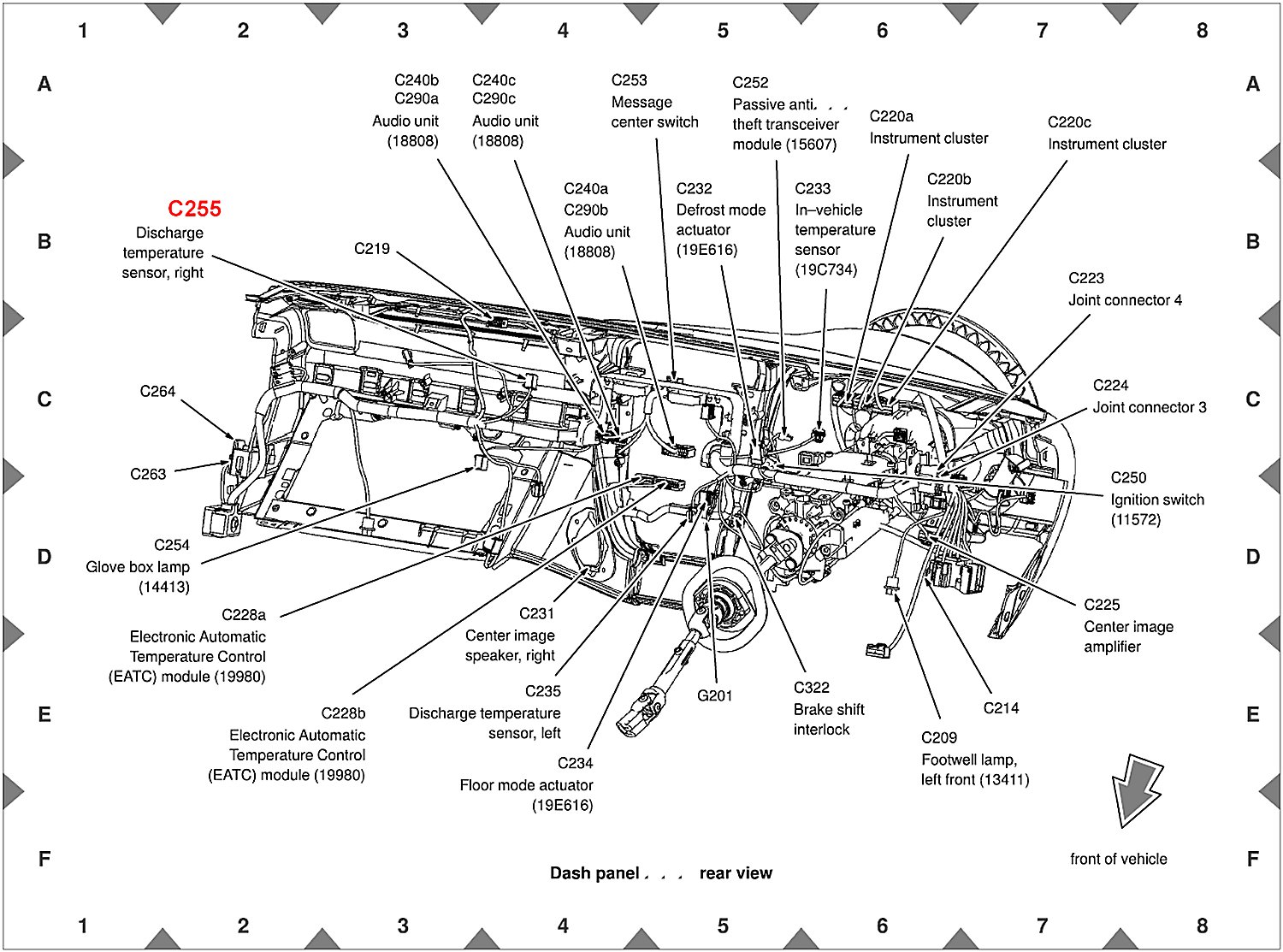

Discharge Air Temperature Sensor / Switch, HVAC
>>
Discharge Temperature Sensor
>>
Right
Right

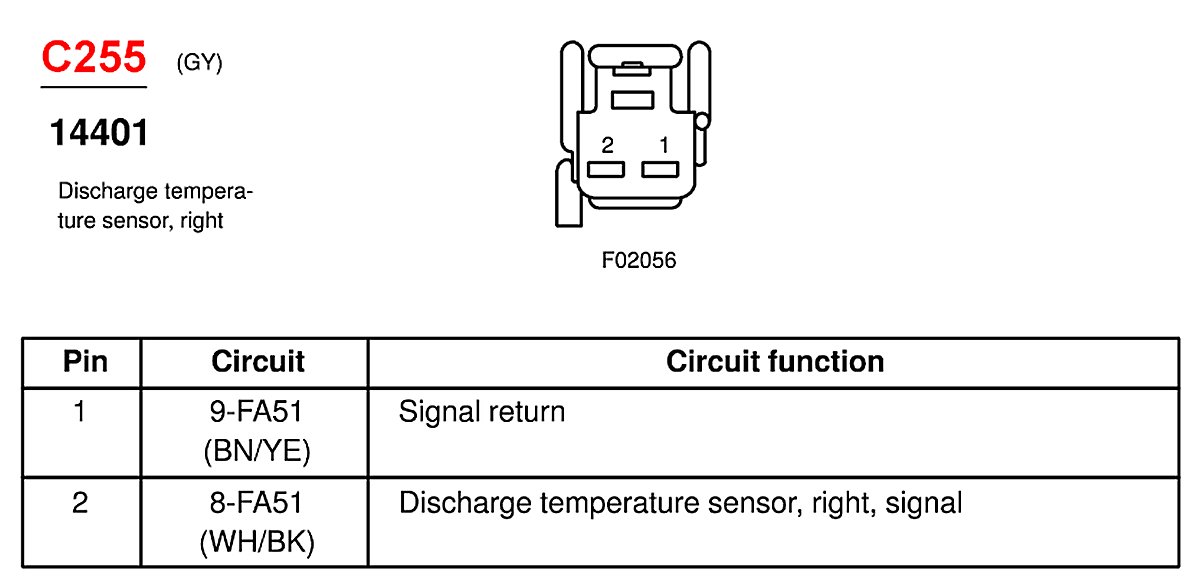

C255:
C255:
