Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> DDM C501c

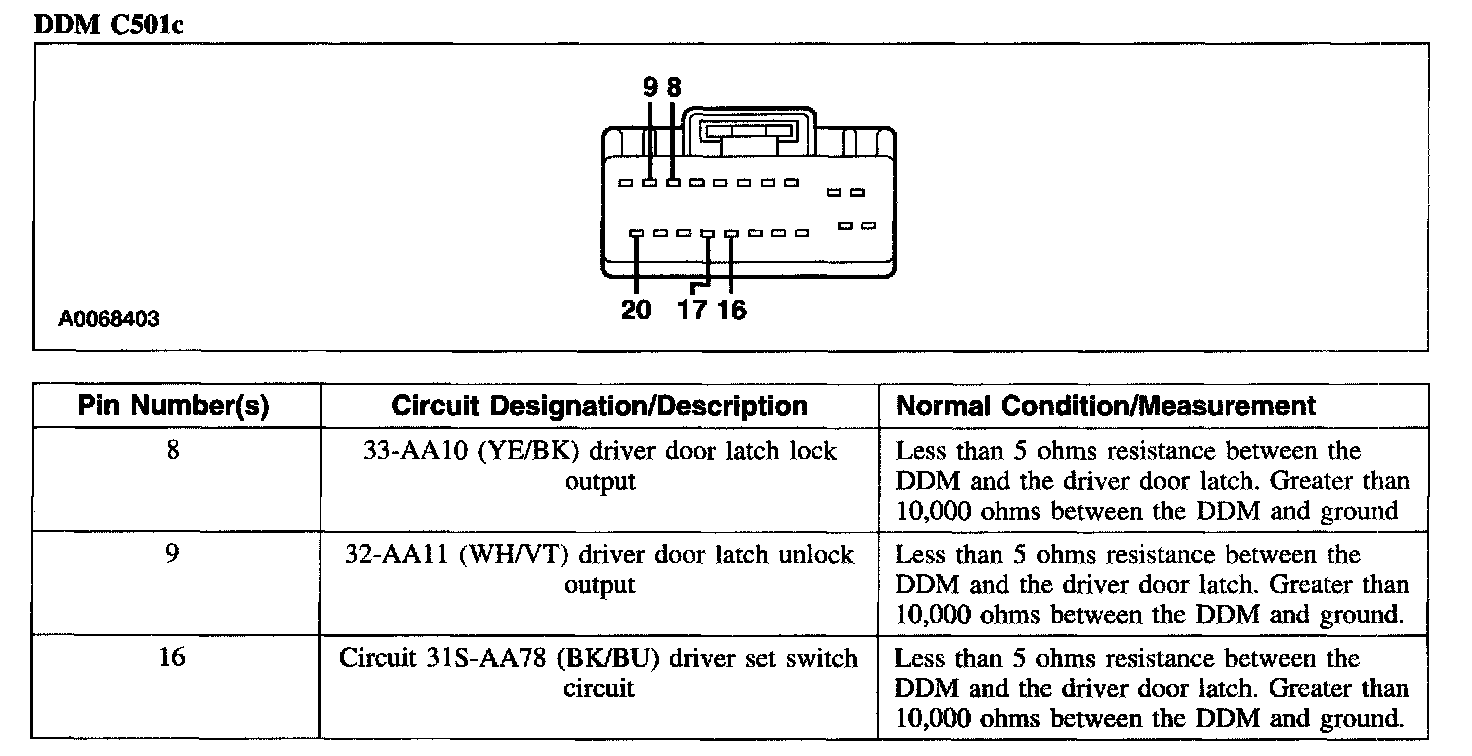

DDM C501c

DDM C501c, Part 1:



DDM C501c, Part 2:
