Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

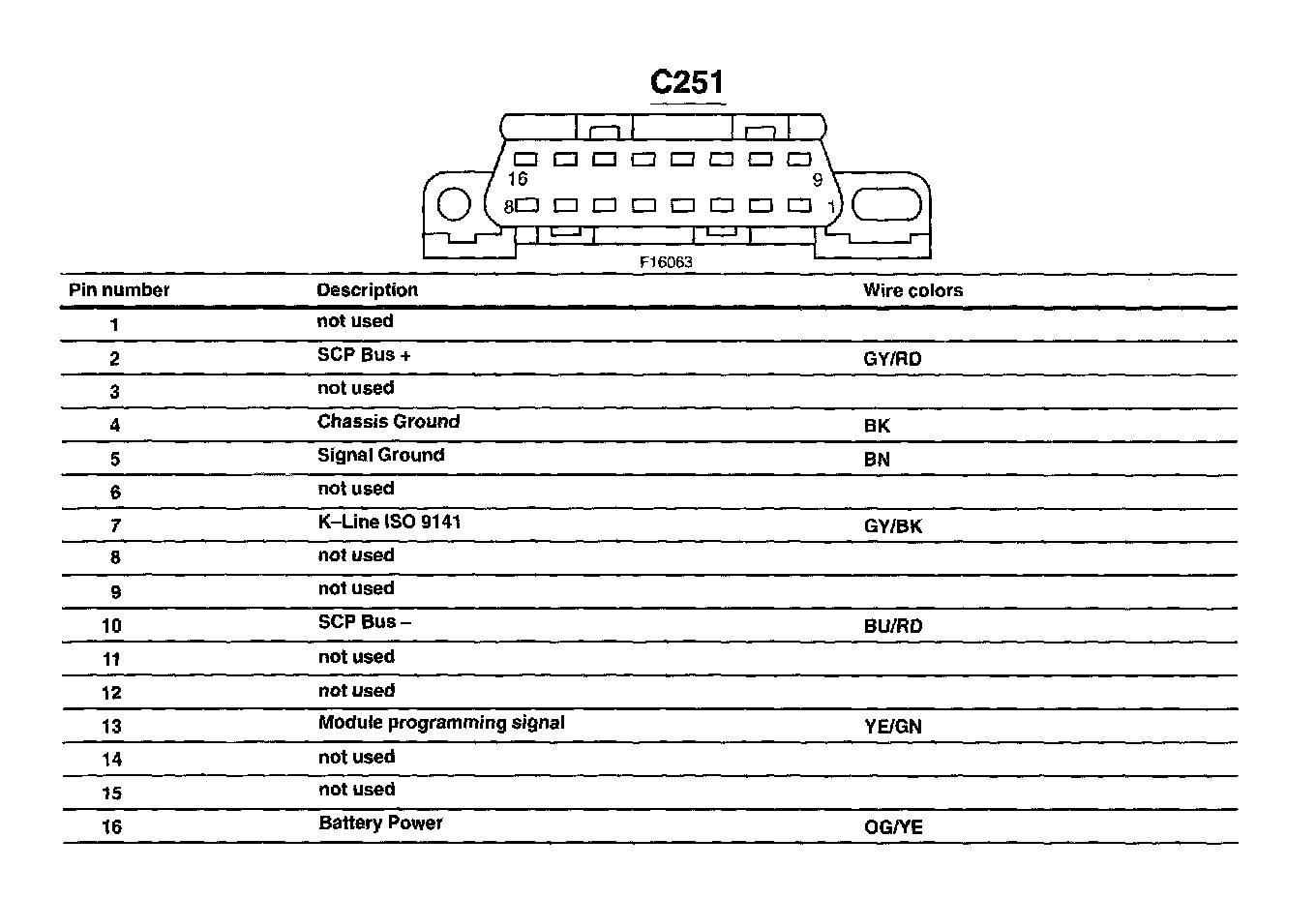

Diagram 14-5:
