Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

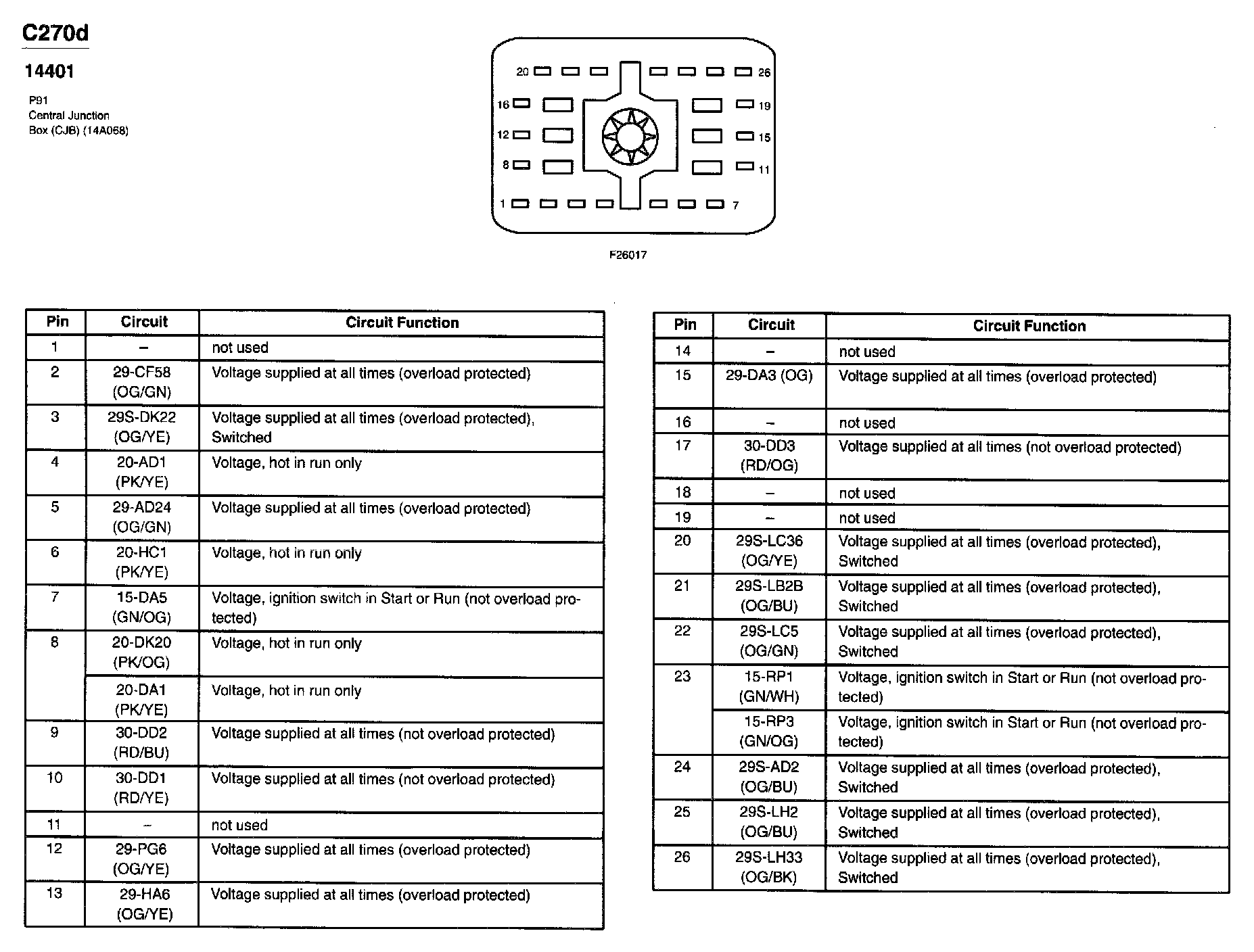

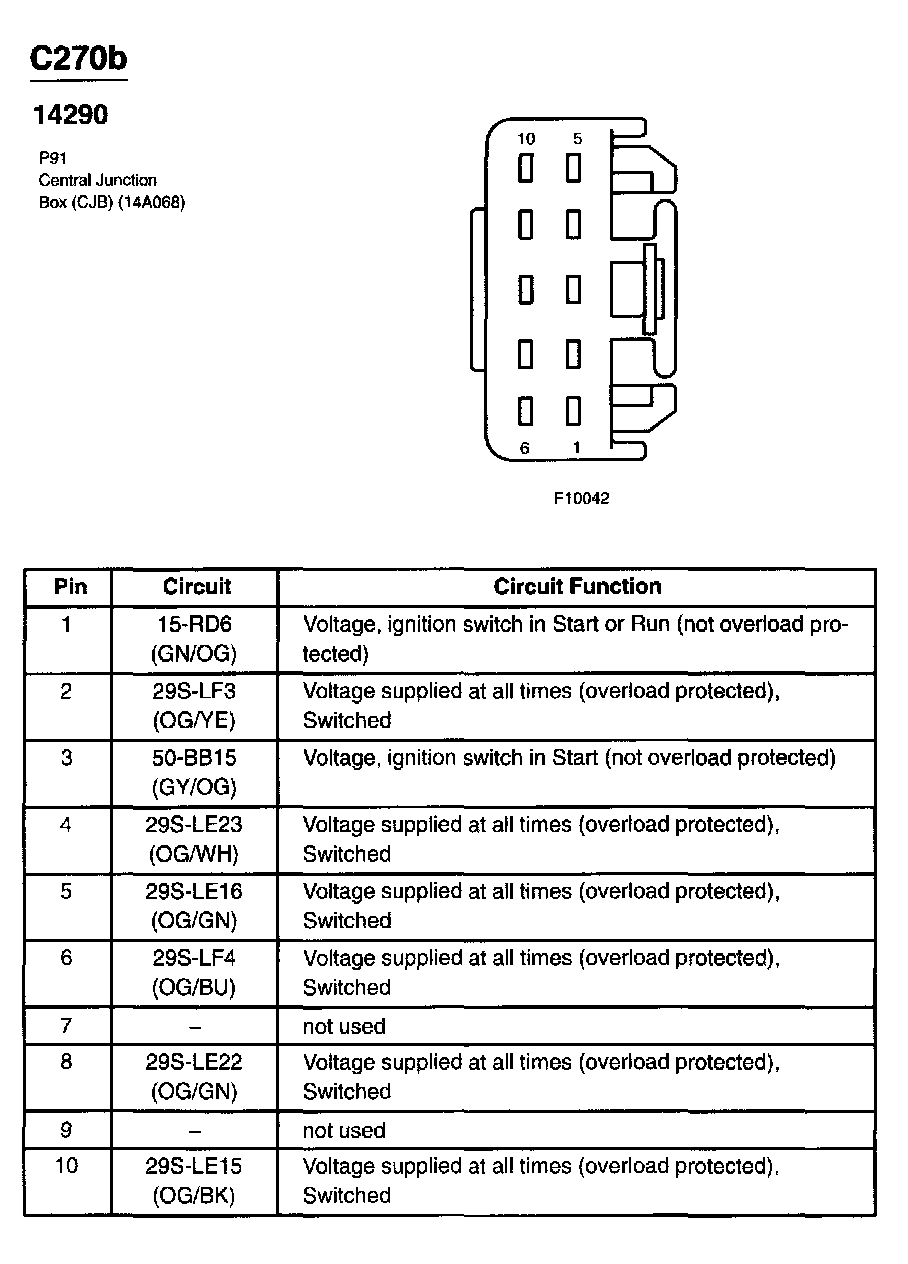

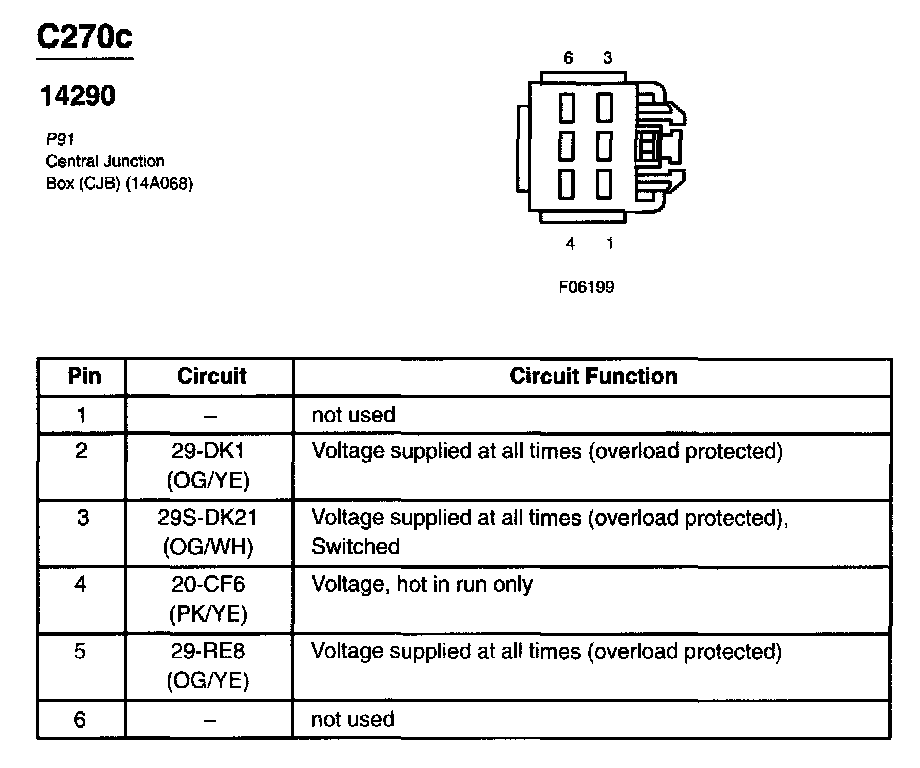

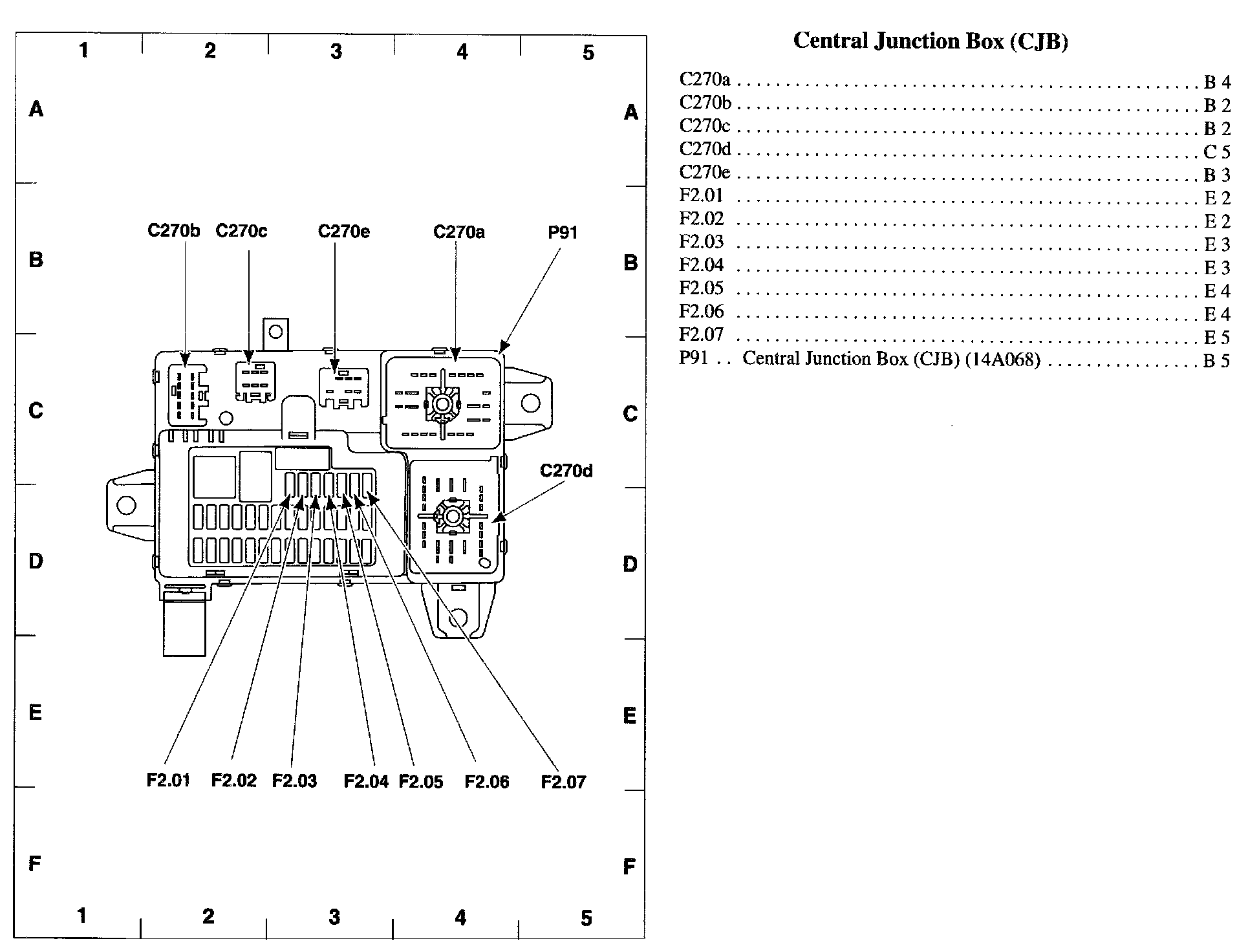

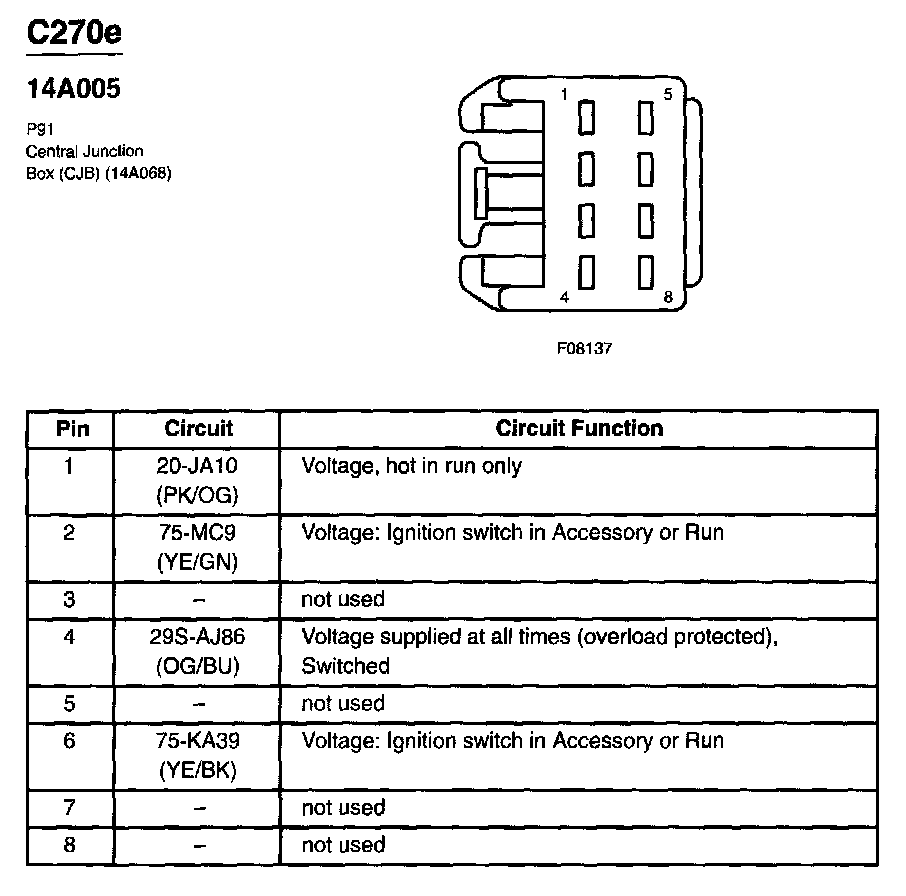

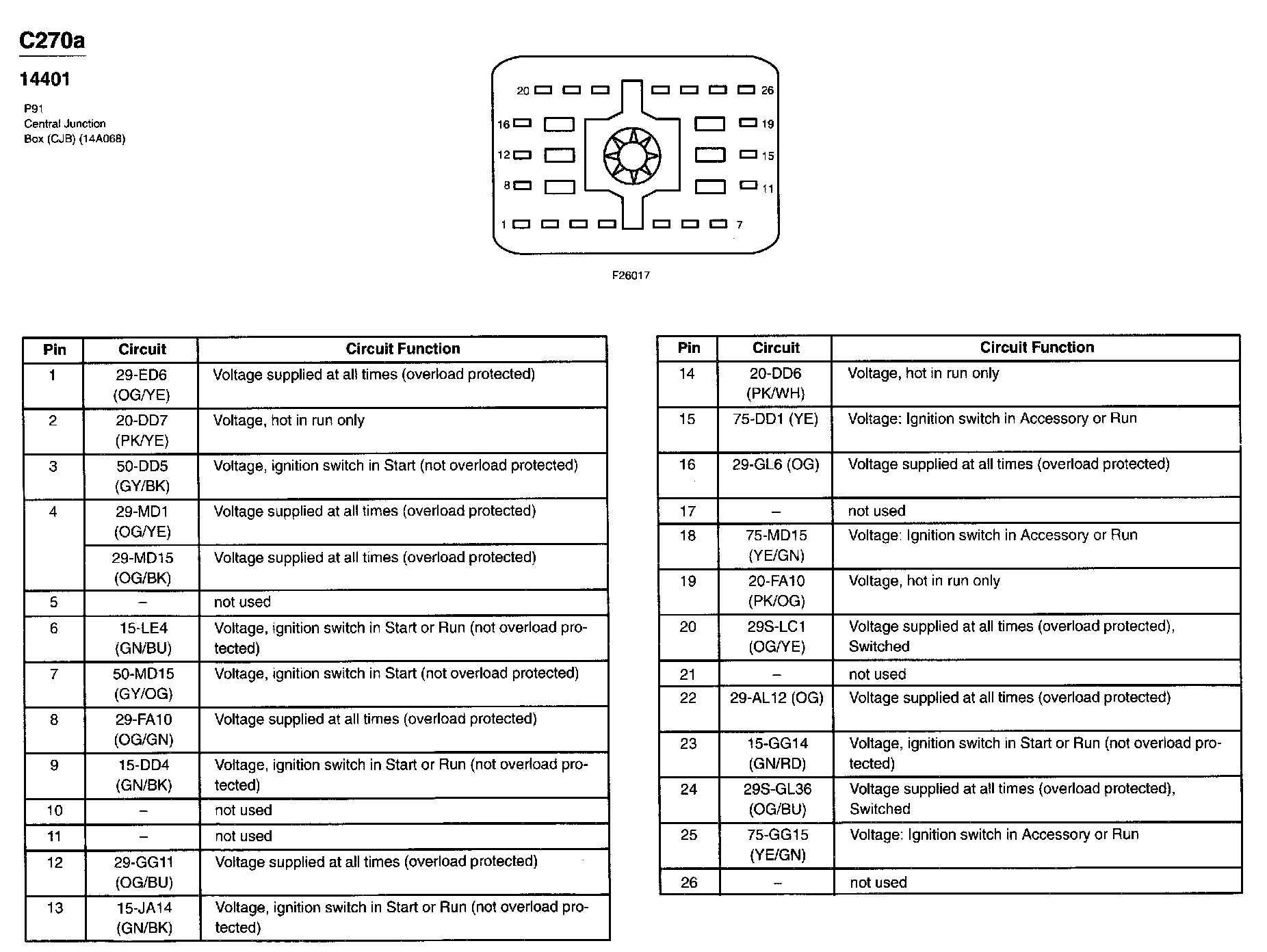

View 151-53:
