Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2001
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

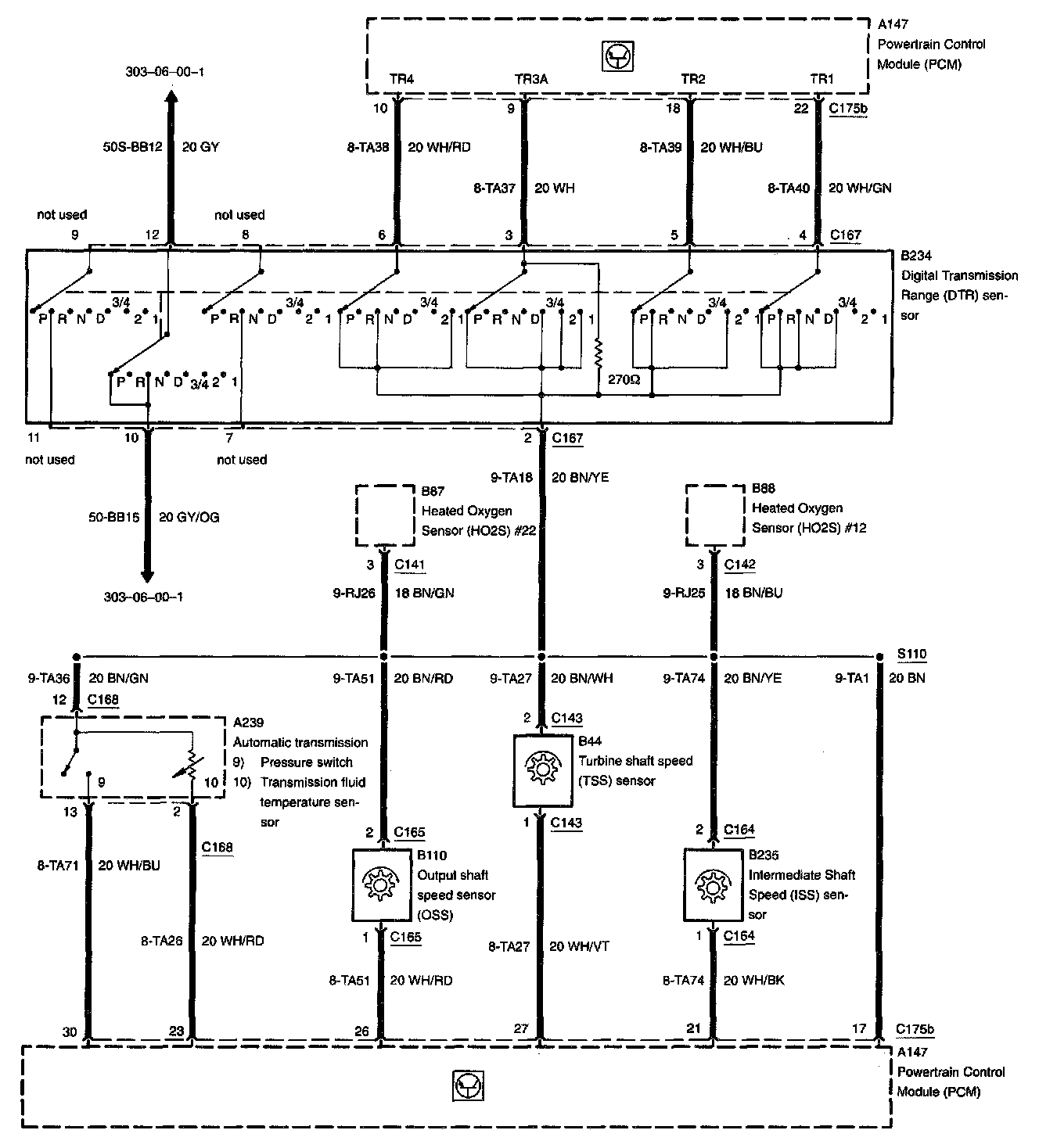

Diagram 307-01-00-1:
