Wiper Motor: Service and Repair

REMOVAL
1. Remove the mounting arm and pivot shaft assembly.

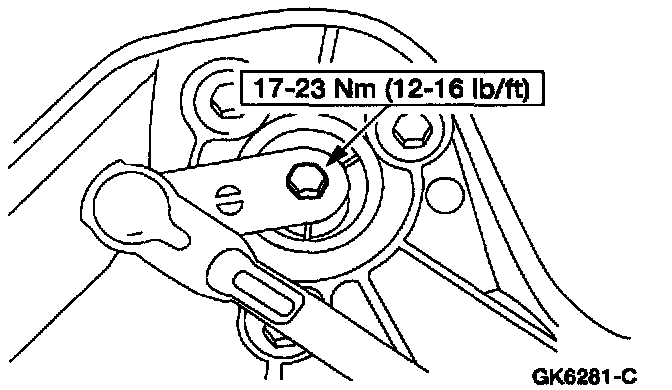

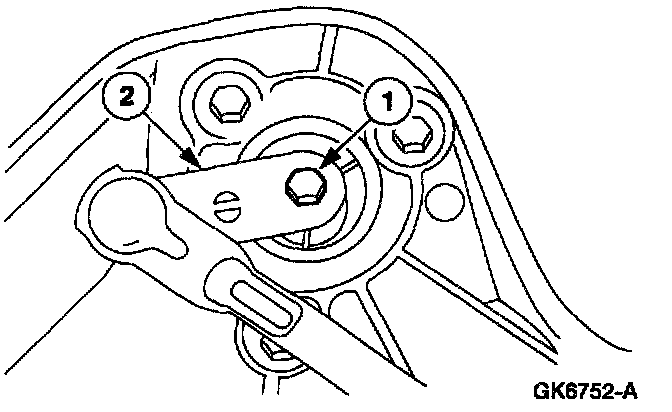

2. Disconnect the wiper motor crank.
1. Remove the bolt.
2. Disconnect the crank.

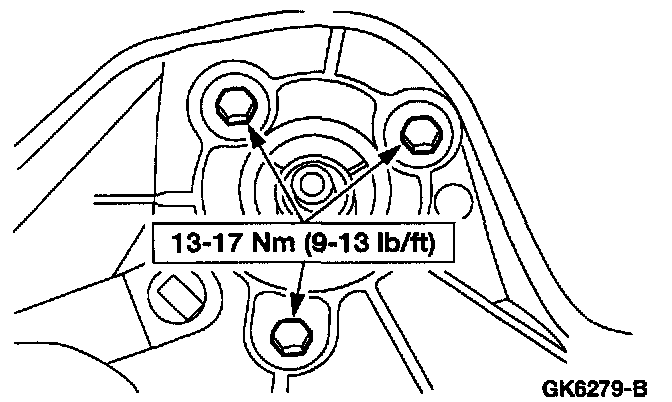

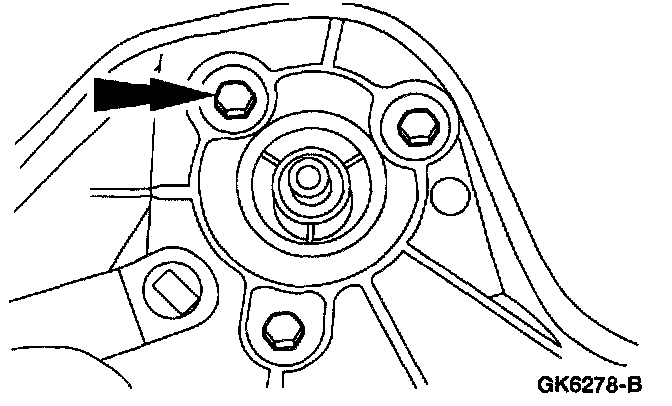

3. Remove the bolts and the wiper motor.

INSTALLATION











1. To install, reverse the removal procedure.
