Pivot Arm

REMOVAL

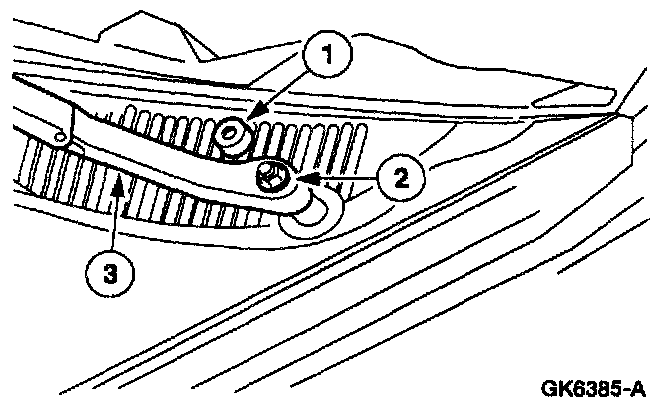

1. Remove the wiper pivot arm.
1. Remove the nut cap.
2. Remove the nut.
3. Remove the wiper pivot arm.

CAUTION: Do not use clean-up solvents near blades. Do not locate stickers on wiper pattern area of windshield as this will damage blade elements.

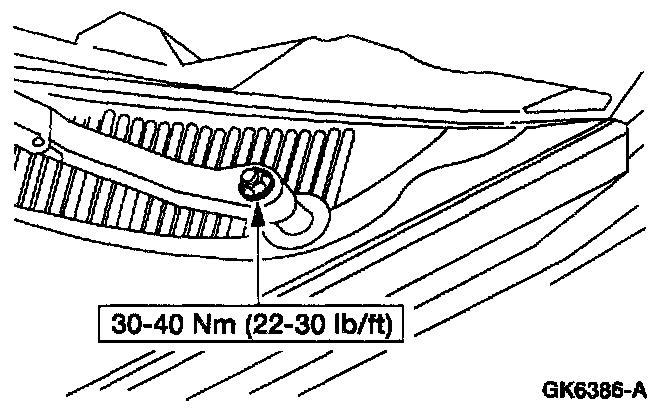

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Adjust the pivot arms.
