Wiper Arm: Adjustments

1. Remove the pivot arm assemblies; refer to Pivot Arm.

CAUTION: Do not use clean-up solvents near blades. Do not locate stickers on wiper pattern area of windshield as this will damage blade elements.

2. Cycle and park the windshield wiper pivot arms to ensure that the system linkage is in the park position.







3. Install the RH pivot arm assembly.

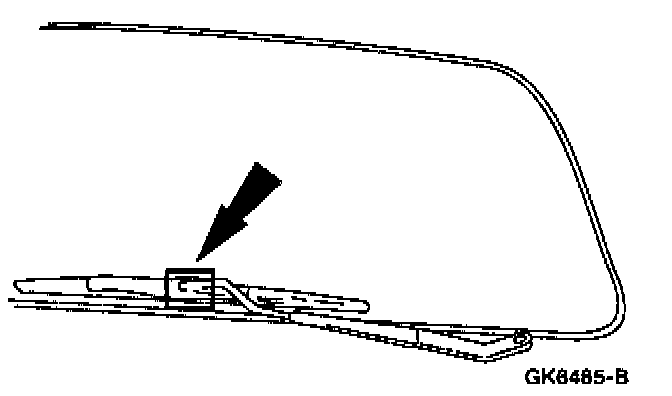

NOTE: Locate the blade to the rectangular alignment mark in the ceramic pattern on the windshield.







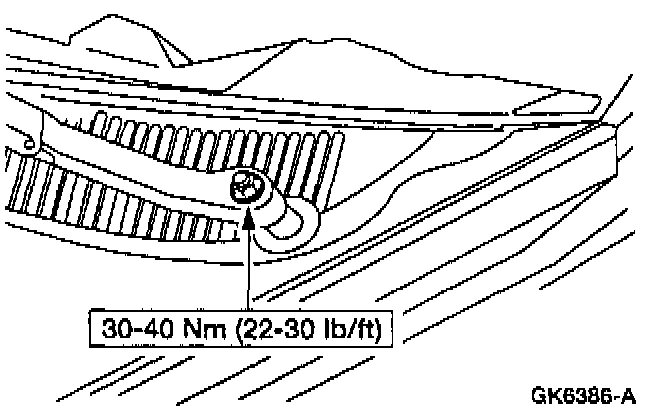

4. Install the pivot arm nut and cap.







5. Install the LH pivot arm assembly.

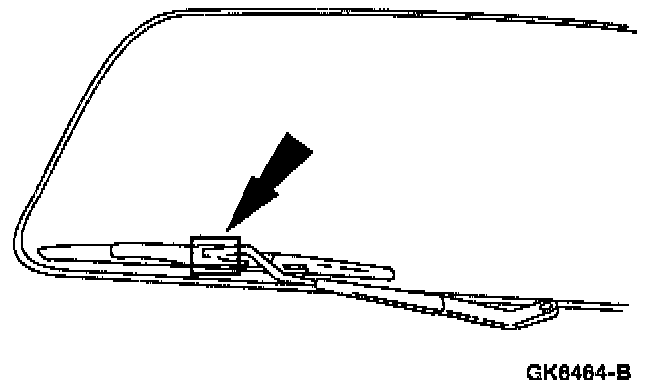

NOTE: Locate the blade to the rectangular alignment mark in the ceramic pattern on the windshield.







6. Install the pivot arm nut and cap.
^ Check system for normal operation.
