Windshield Washer Pump: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

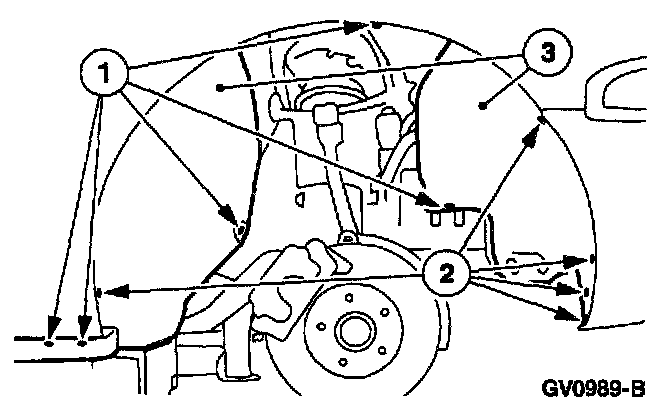

3. Remove the RH front splash shield.
1. Remove the pushpins.
2. Remove the screws.
3. Remove the splash shield.

NOTE: The wheel is shown removed for clarity.

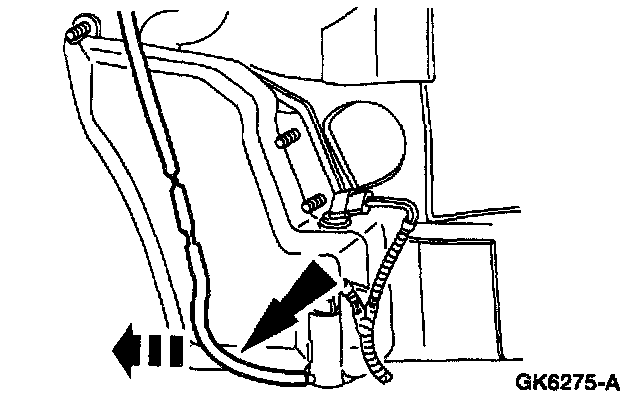

4. Disconnect the washer hose from the washer pump.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: To prevent spilling windshield washer fluid, drain the before removal.

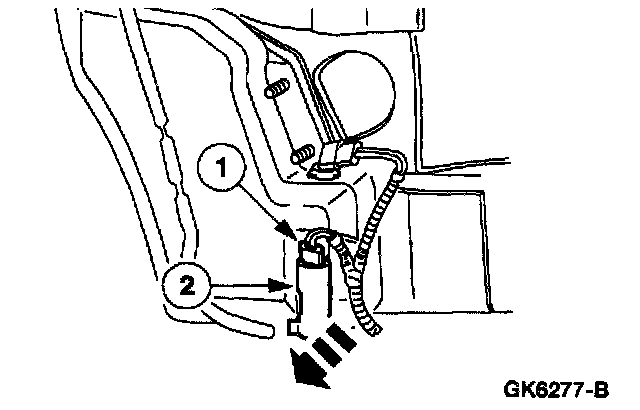

5. Remove the washer pump.
1. Disconnect the electrical connector.
2. Remove the pump.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
