Front Door Window Glass: Service and Repair

REMOVAL
1. Remove the door trim panel. Doors
2. Remove the radio speaker and the watershield.

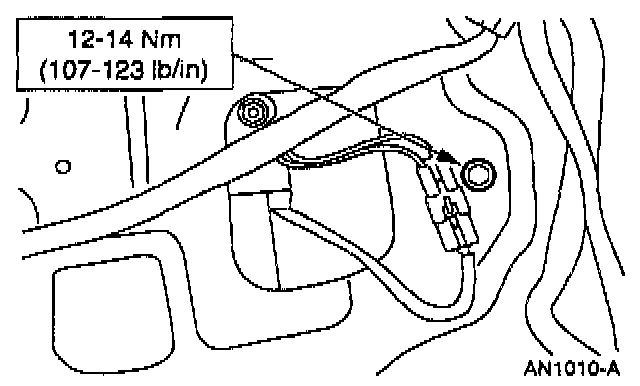

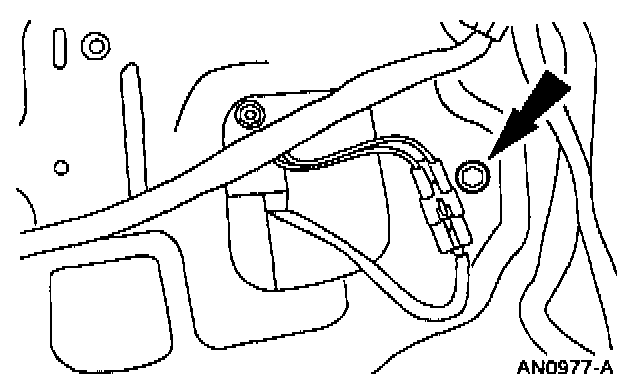

3. Remove the inside weatherstrip.







4. Align the glass to the access holes.







5. Remove the bolt.

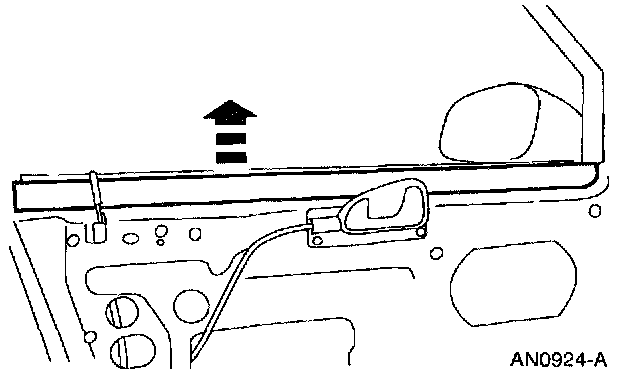

6. Tip the front door window glass forward and lift it out of the outboard side of the door.

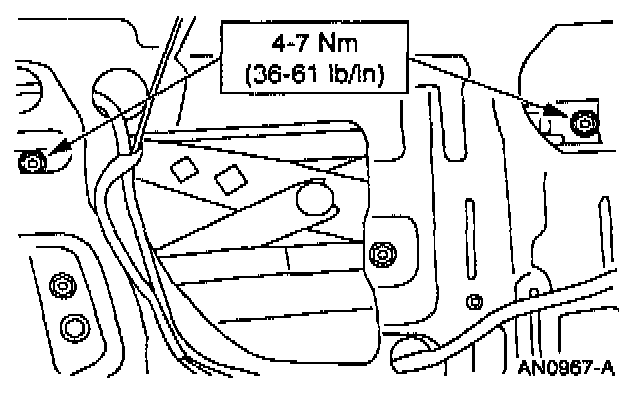

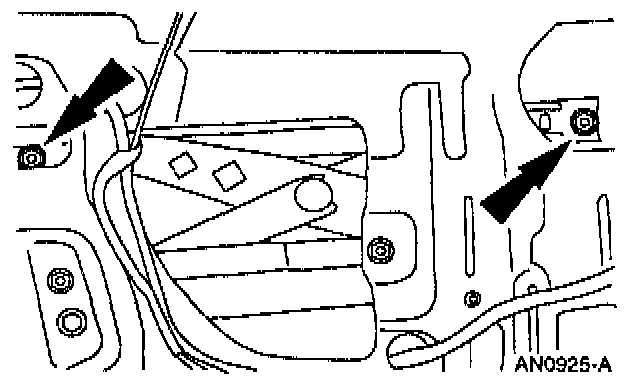

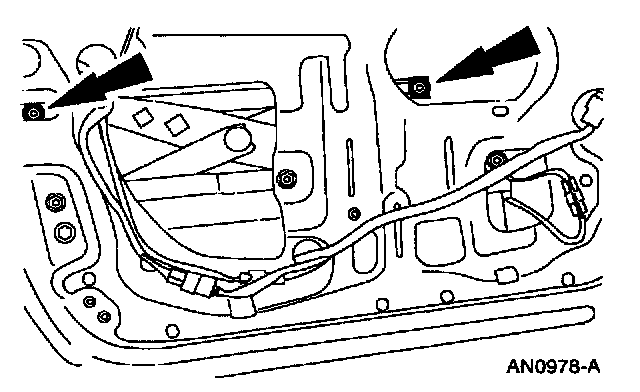

7. Remove the nuts.

INSTALLATION












1. Follow the removal procedure in reverse order.

NOTE: Make sure the front door window glass is set within the front and the rear glass run retainers.
