Shift Solenoid Operation Chart

Use the following shift solenoid operation information when performing Pinpoint Test A.

1 Of 2:

2 Of 2:

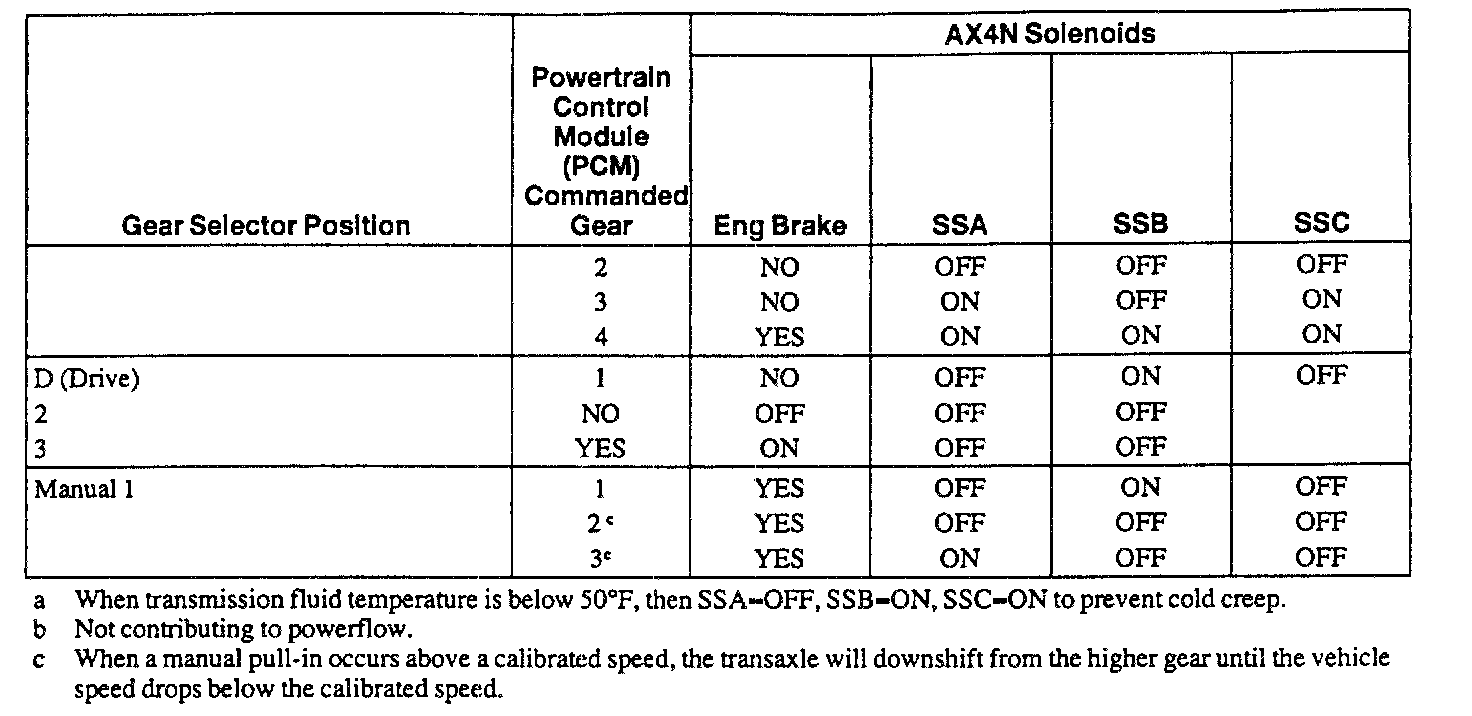

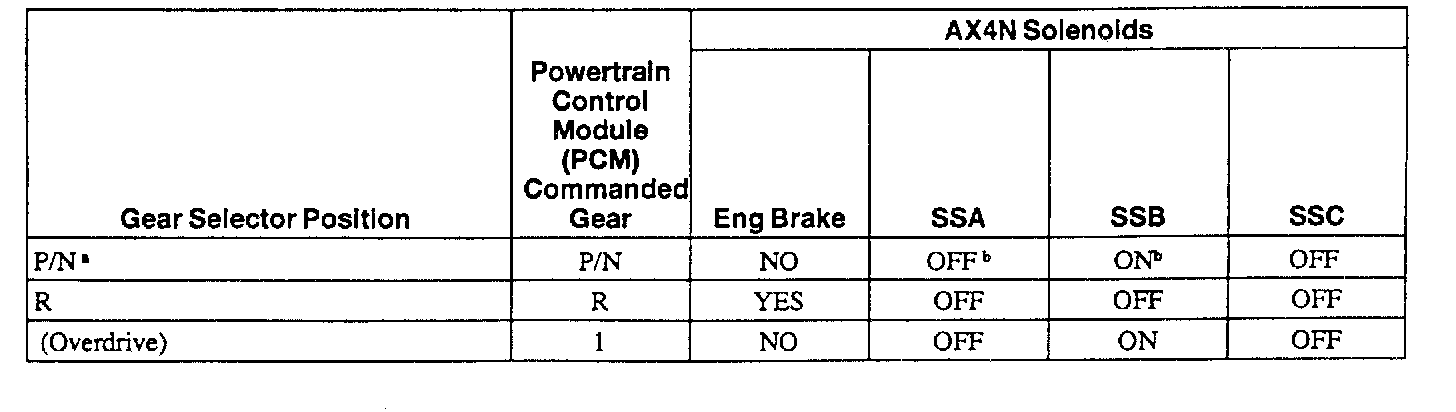

SOLENOID OPERATION CHART

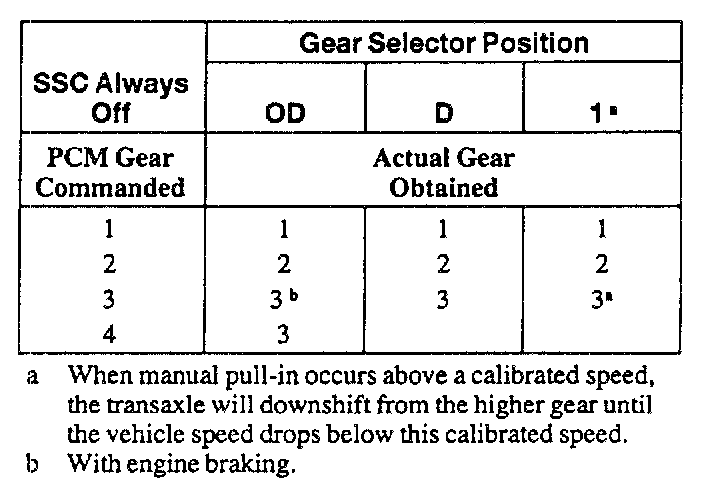

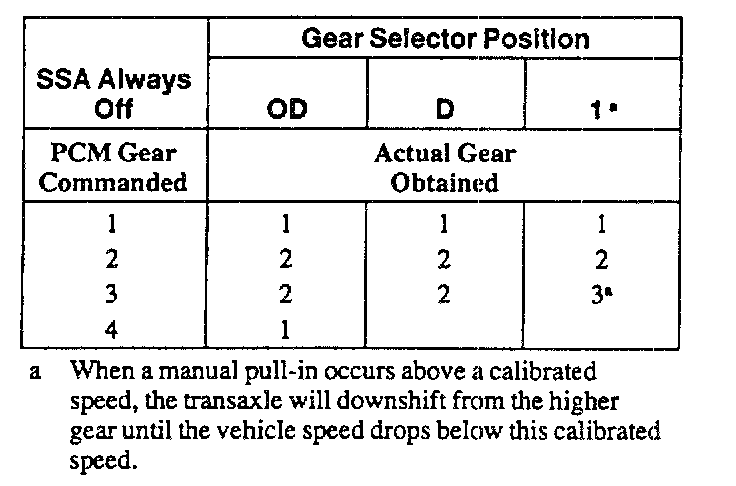

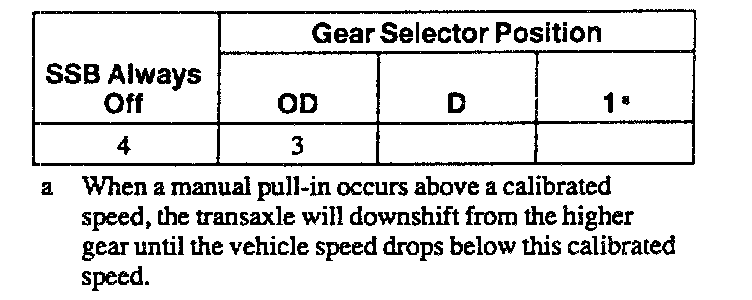

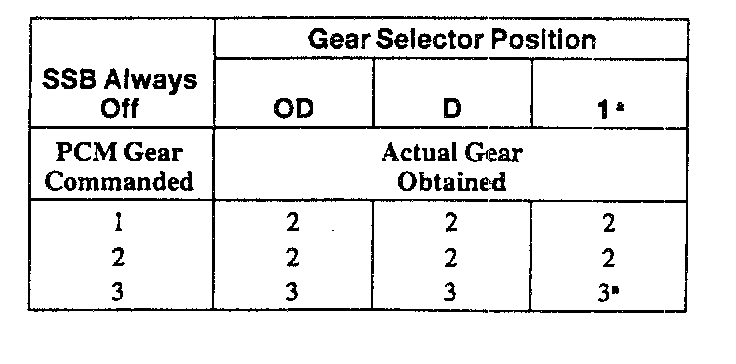

Shift Solenoid Failure Mode Chart "Always Off"














Failed OFF due to Powertrain Control Module and/or vehicle wiring concerns, and/or solenoid electrically stuck off and/or hydraulically stuck off.

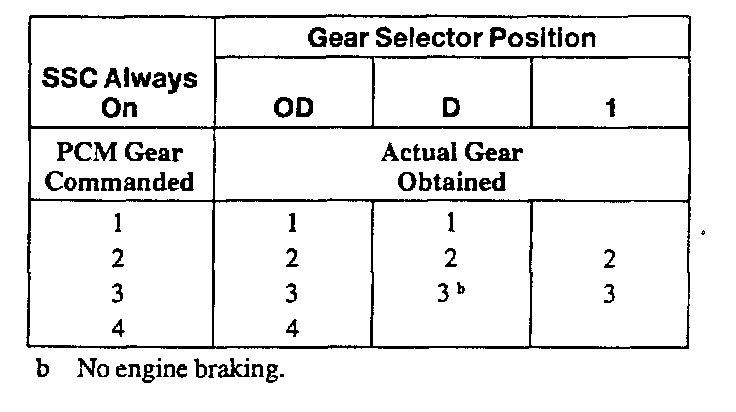

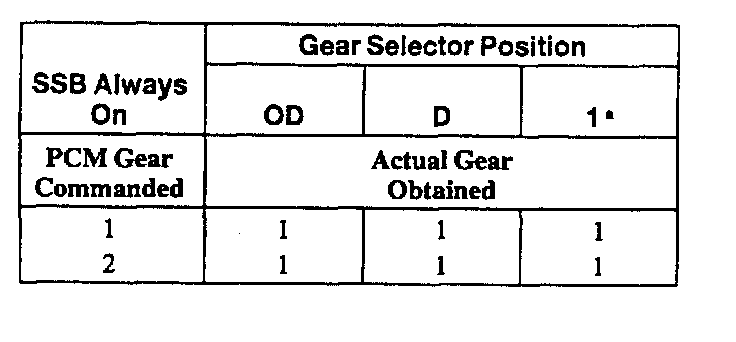

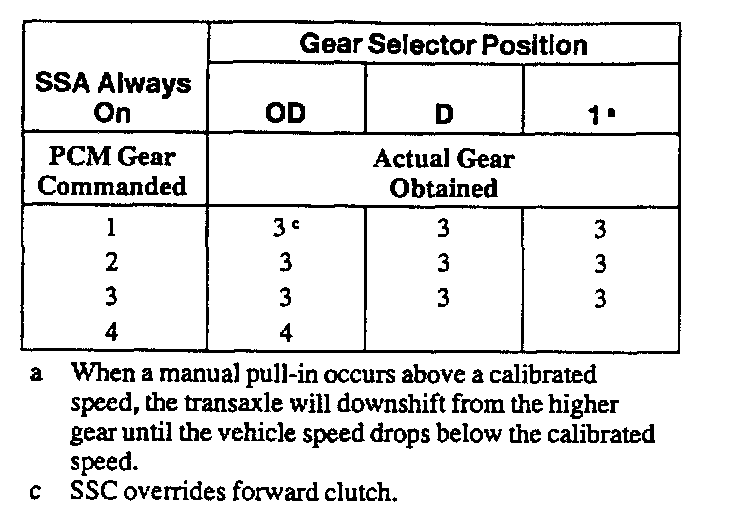

Shift Solenoid Failure Mode Chart "Always On"














Failed ON due to powertrain control module and/or vehicle wiring concerns; solenoid electrically or mechanically stuck on.
