Electrical Diagrams

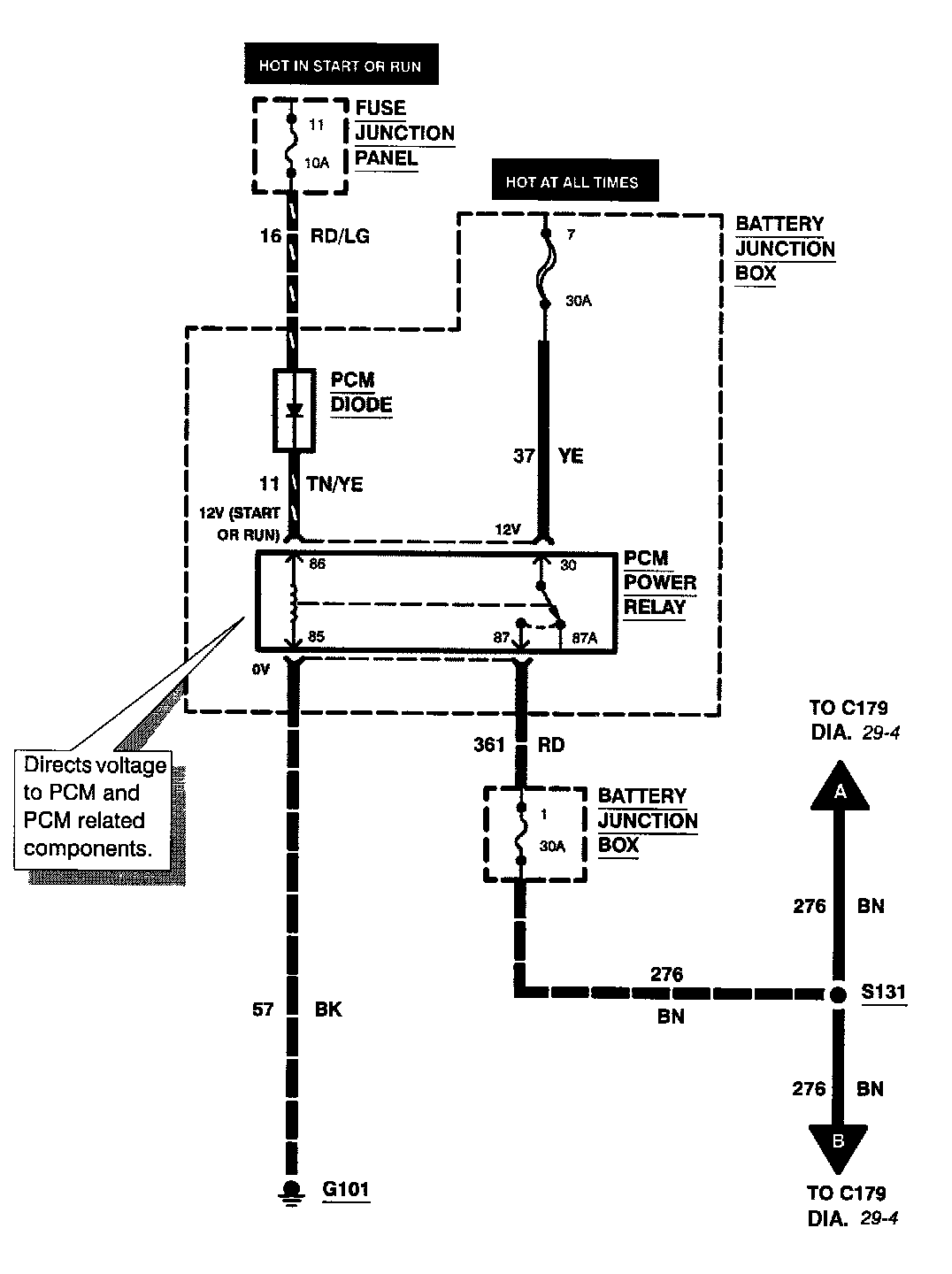

Diagram 29-1:

Battery Junction Box
Fuse 1
Fuse 7
Fuse 11
Fuse Junction Panel
Powertrain Control Module Diode
Powertrain Control Module Power Relay

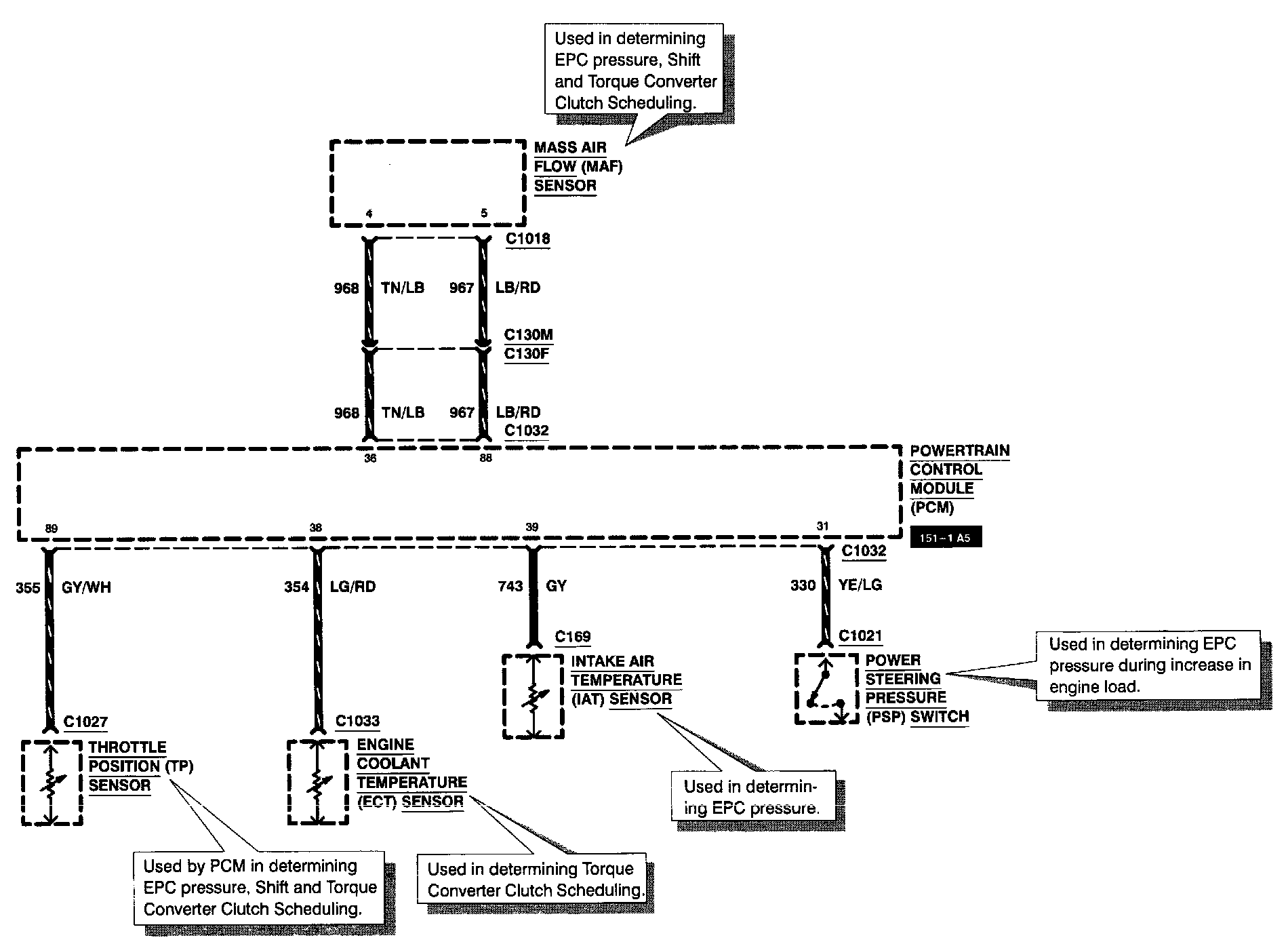

Diagram 29-2:

Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
Mass Air Flow Sensor
Powertrain Control Module
Power Steering Pressure Switch
Throttle Position Sensor

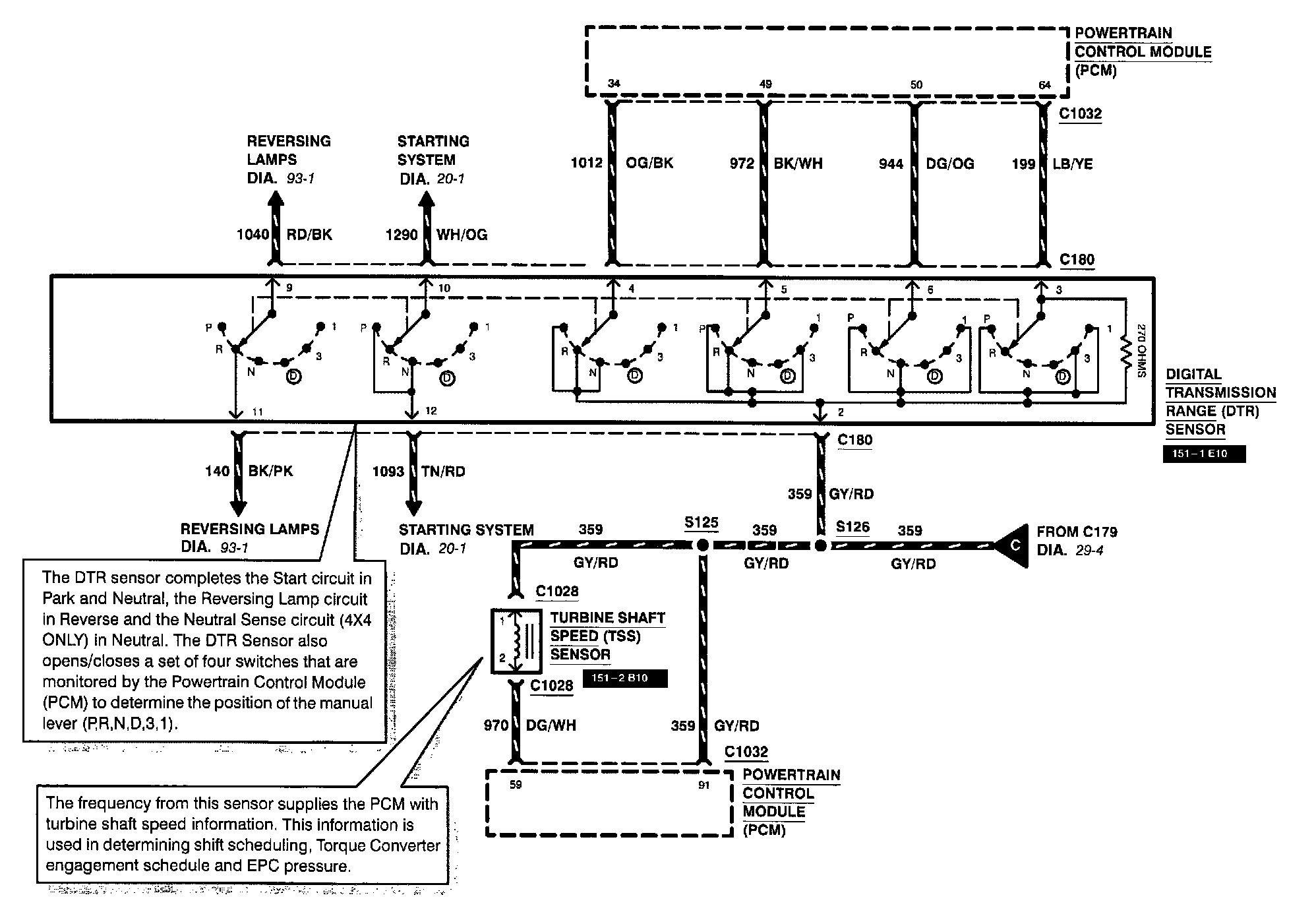

Diagram 29-3:

Digital Transmission Range Sensor
Powertrain Control Module
Turbine Shaft Speed Sensor

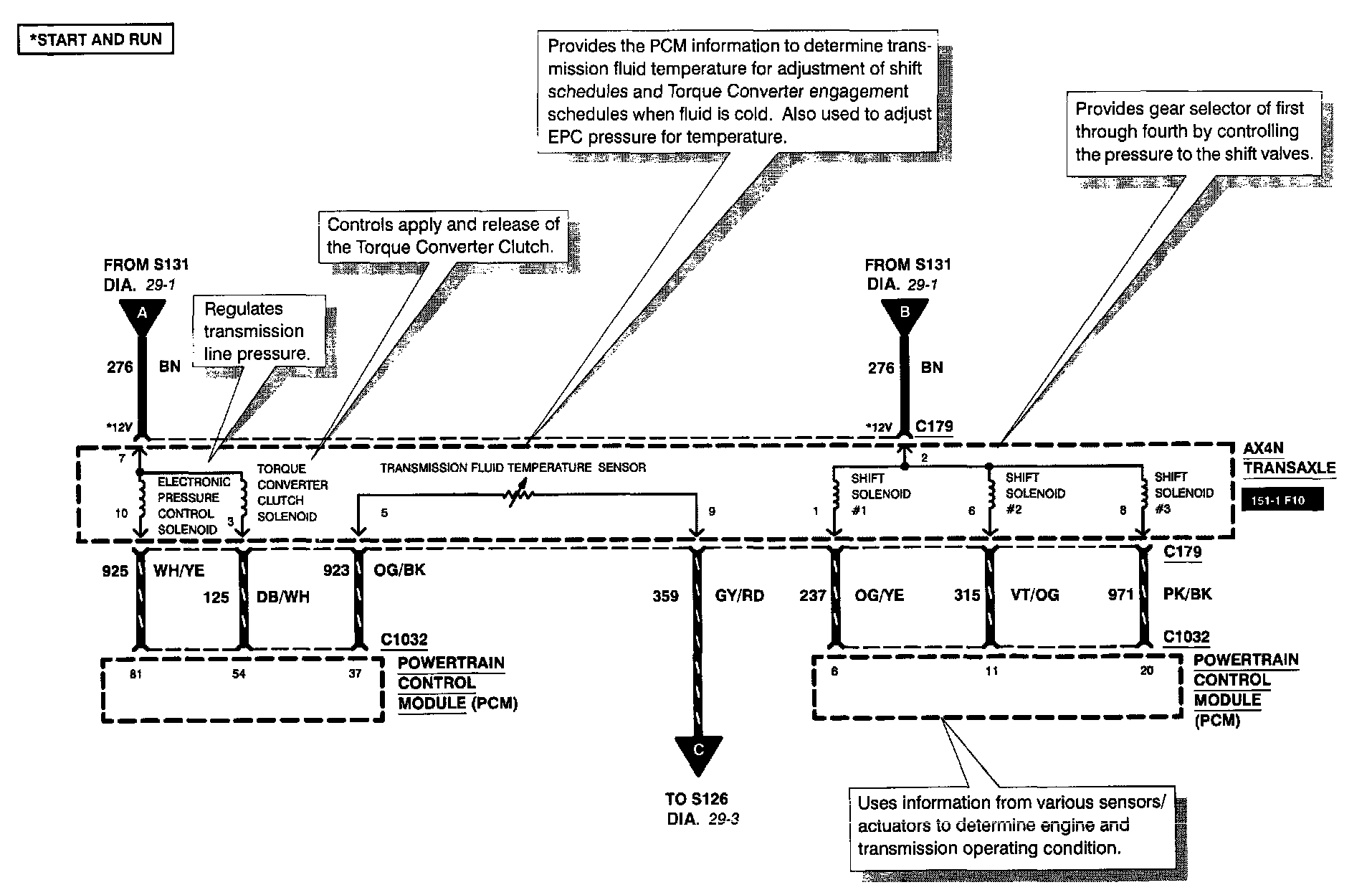

Diagram 29-4:

AX4N Transaxle
Electronic Pressure Control Solenoid
Powertrain Control Module
Shift Solenoid #1
Shift Solenoid #2
Shift Solenoid #3
Transmission Fluid Temperature Sensor
Torque Converter Clutch Solenoid
