Floor Shift

Removal
1. Remove the center console.
2. Remove the shift cable and the bracket from the transaxle range selector lever.

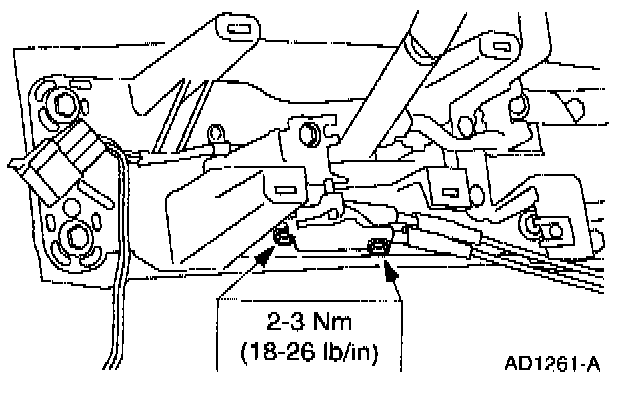

3. Remove the parking brake release control motor.

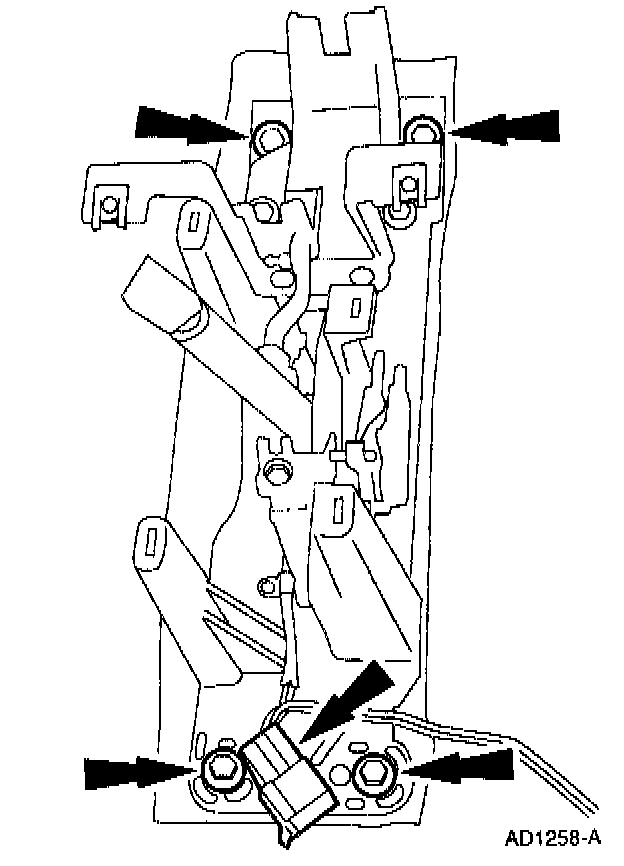

4. Remove the selector lever.
^ Remove the electrical connector.
^ Remove the screws.

Installation

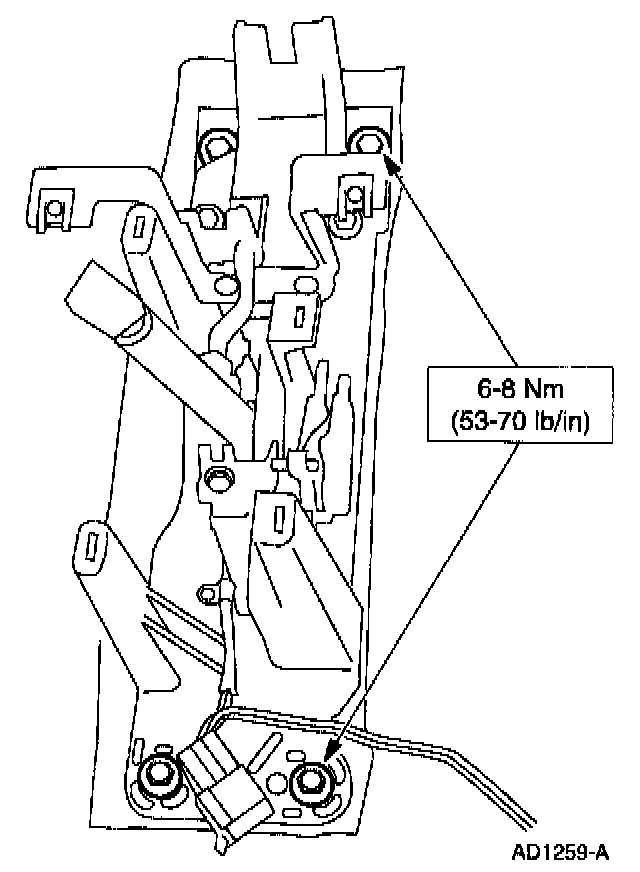

1. Install the transaxle range selector lever.
^ Install the screws.
^ Install the electrical connector.





2. Install the parking brake release control motor.
3. Install the shift cable and the bracket.
4. Install the center console.
