Shift Control, Floor Shift

NOTE: The shift control cable adjustment procedure must be performed in the order shown.





1. Position the transaxle range selector lever in OVERDRIVE.

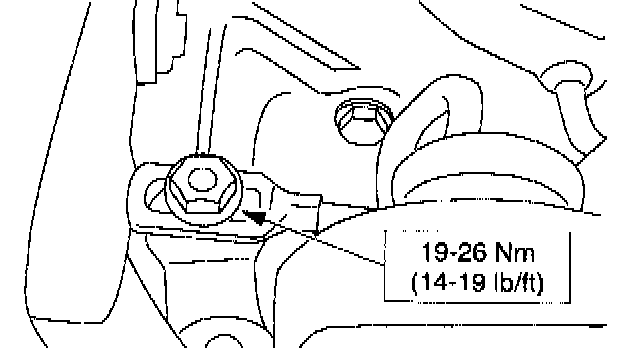

2. Loosen the manual control lever-to-shift control cable retaining nut.





3. Position the manual control lever in OVERDRIVE. Tighten the nut.
4. Check the operation of the transaxle in each transaxle range selector lever positions.
