Pump Shaft

1. NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, the shaft and main control must be replaced.

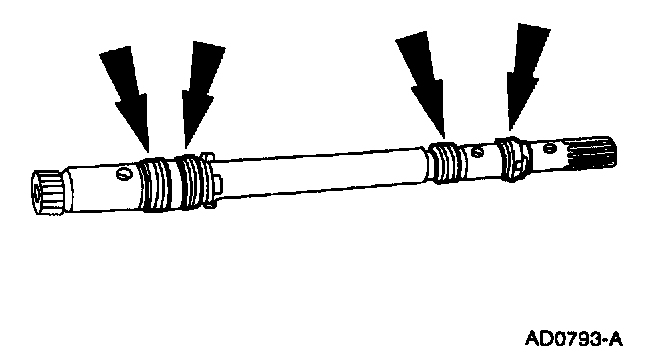

Remove the Teflon(r) seals and inspect the shaft.





2. NOTE: Make sure that the seals are installed correctly.

Install 4 new seals on the pump shaft.
