Driven Sprocket Support

Special Tools:

Disassembly

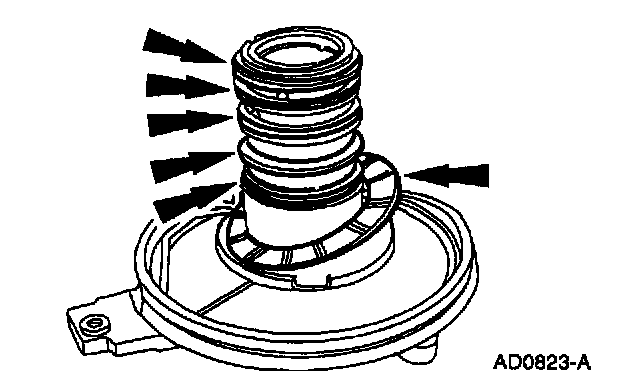

1. Remove the Teflon seal rings and the No. 5 thrust washer.





2. NOTE: If the driven sprocket bearing is damaged it should be replaced.

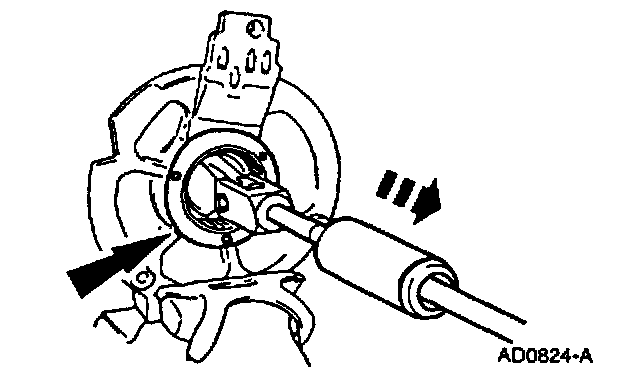

Using the Bearing Remover and the Impact Slide Hammer remove the driven sprocket bearing.

Assembly

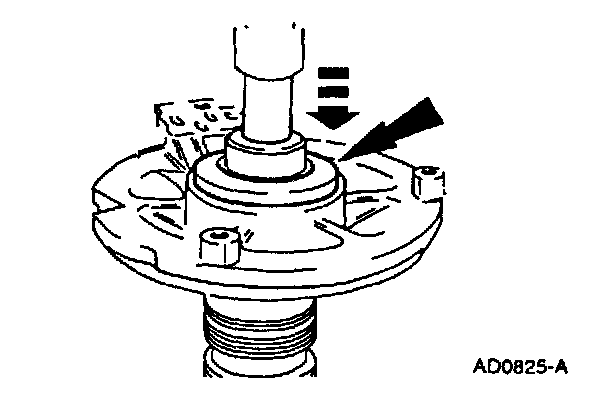

1. If removed, install a new driven sprocket bearing. Using an arbor press, stator and Driven Sprocket Bearing Replacer, and Drive Handle, install a new driven sprocket bearing.





2. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

NOTE: Make sure that the seals are mated correctly.

Install new Teflon seals and the No. 5 thrust washer.
