Coast Band Servo

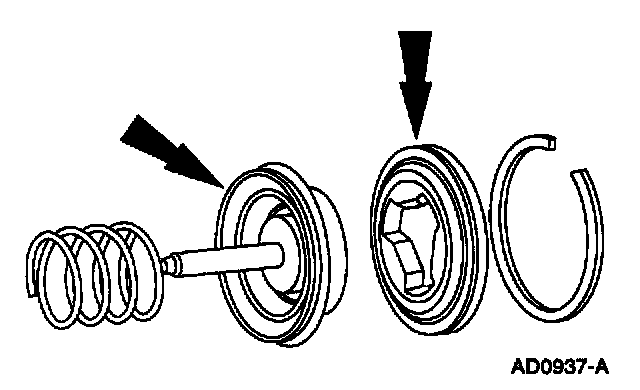

1. NOTE: Inspect the seals on the coast servo piston and rod, and the coast servo cover, for damage. If the seals are damaged the piston, rod, and the coast servo cover are replaced as an assembly.

Inspect the seals.

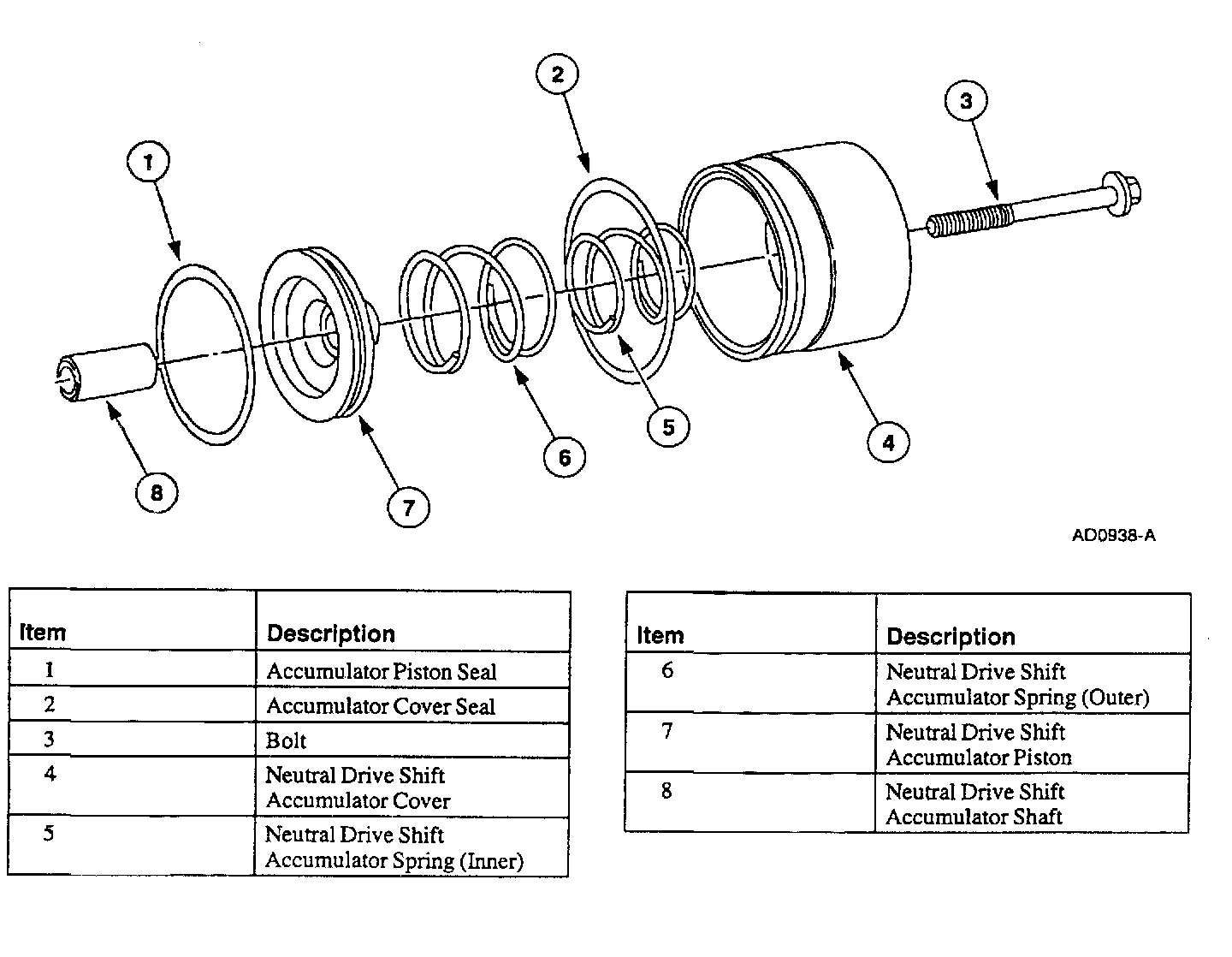

Neutral Dave Accumulator:

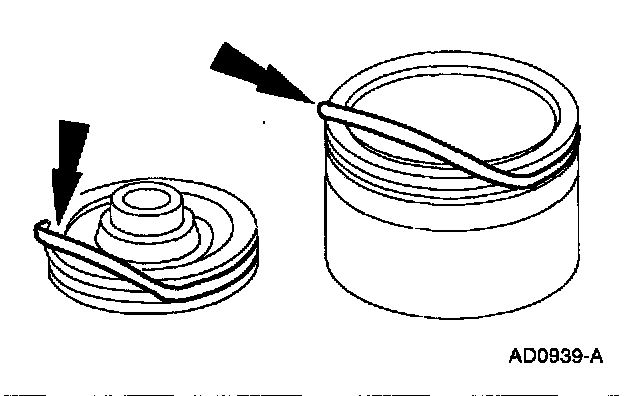

1. NOTE: Lightly coat the seals with petroleum jelly prior to installation.

^ Remove and replace the neutral drive accumulator piston seal.
^ Remove and replace the neutral drive accumulator cover seal.
