Multi-Function Switch Terminals

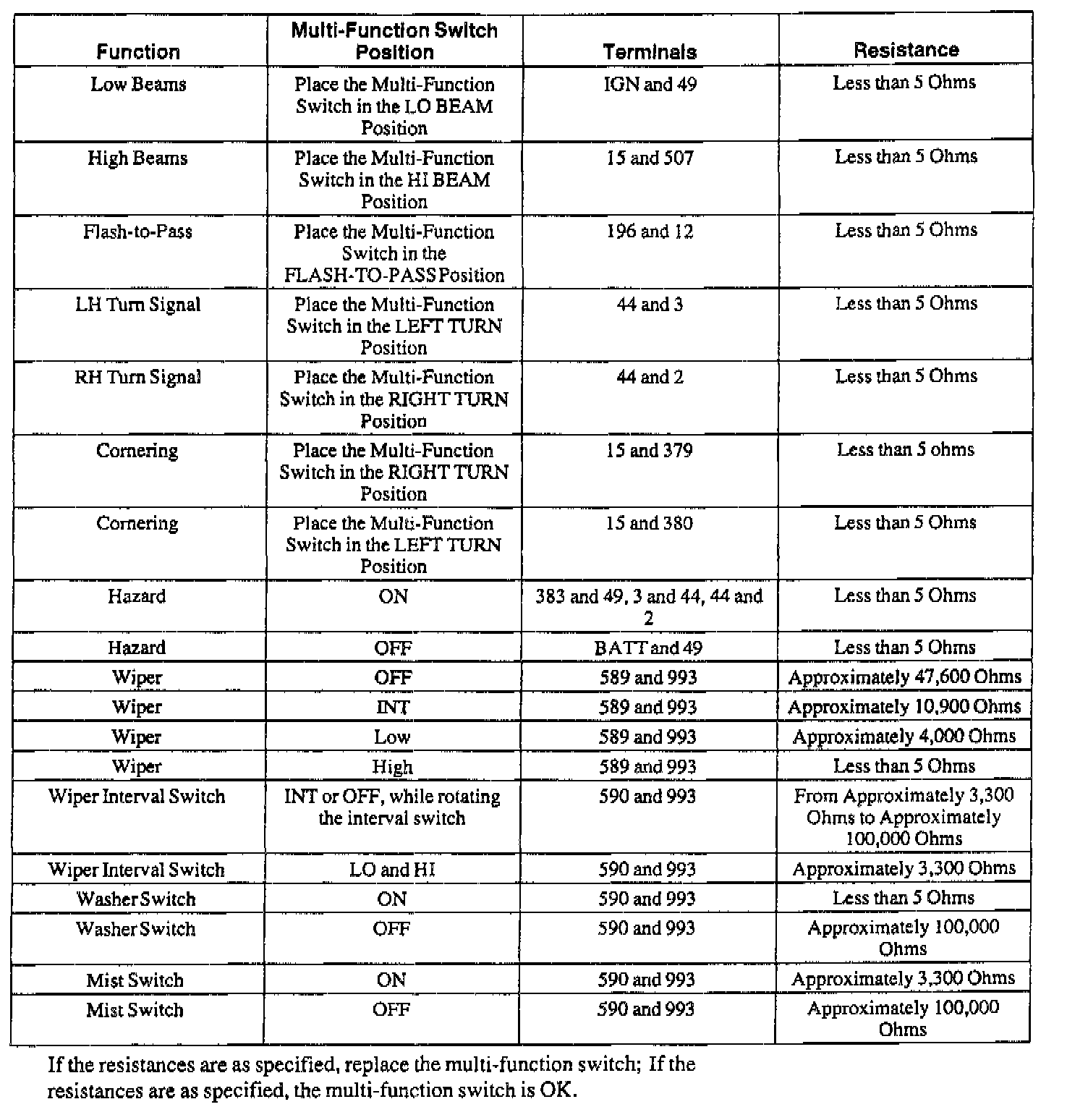

Part 1 Of 2:




Part 2 Of 2:

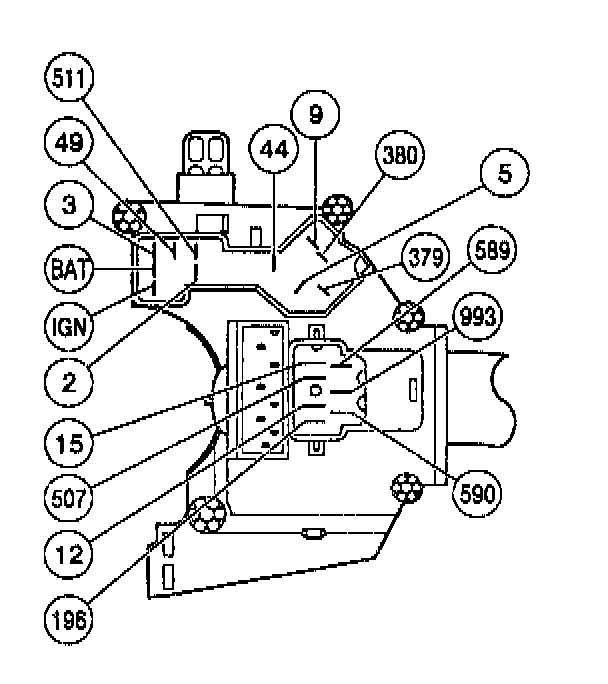

MULTI-FUNCTION SWITCH TERMINALS - COMPONENT SIDE
1. Measure the resistance between the multi-function switch terminals:
