Retractor-Rear Center Seat Safety Belt

REMOVAL

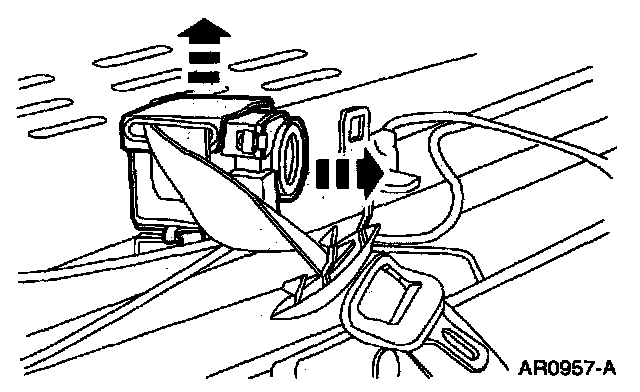

1. Remove the package tray trim panel.







2. Remove the bolt.







3. Turn the retractor 90 degrees and remove the rear center safety belt retractor.

INSTALLATION







1. Follow the removal procedure in reverse order.
2. Check the restraint system for proper operation.
