Impact Sensor: Service and Repair

REMOVAL

WARNING:
^ Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag Supplemental Restraint System (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged Supplemental Restraint System (SRS) components whether or not the air bag is deployed.
^ To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag Supplemental Restraint System (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

The side air bag sensors are located at or near the base of the B-pillar.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

NOTE:
^ Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
^ Right side is shown, left side is similar.

1. Position the front seat to its most forward position.
2. Disconnect the battery ground cable and wait at least one minute.

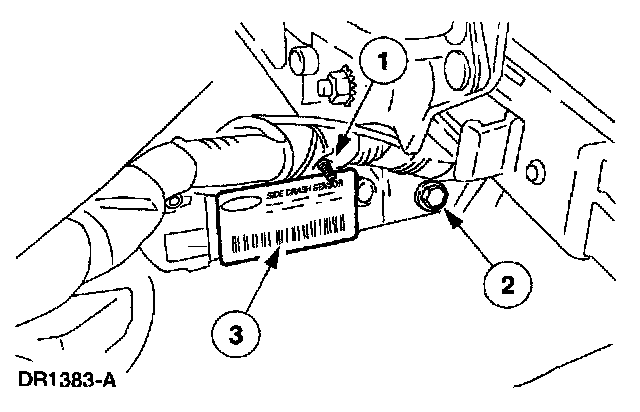

3. Access the side crash sensor electrical connector.

NOTE: Access the side crash sensor through the carpet opening, under the front seat.

1 Remove the wire harness push pin from the side crash sensor bracket.
2 Remove the two side crash sensor bracket retaining bolts (one shown).
3 Position the side crash sensor with bracket out from under the seat.

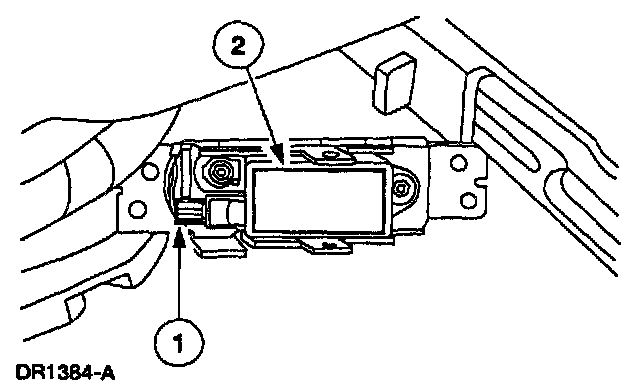

4. Remove the side crash sensor with bracket.
1 Disconnect the side crash sensor.
2 Remove the side crash sensor with bracket.

INSTALLATION

WARNING:
^ Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag Supplemental Restraint System (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged Supplemental Restraint System (SRS) components whether or not the air bag is deployed.
^ To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag Supplemental Restraint System (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches

The side air bag sensors are located at or near the base of the B-pillar.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
^ The tightening torque of the air bag side crash sensor retaining bolts is critical for correct system operation.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.







1. Follow the removal procedure in reverse order.
2. Prove out the air bag system.
