Driver Door Module

REMOVAL

CAUTION: Prior to removal of module, it is necessary to upload module configuration information to New Generation STAR (NGS) Tester. This information needs to be downloaded in to the new module once installed.

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.

2. Remove the front door trim panel.

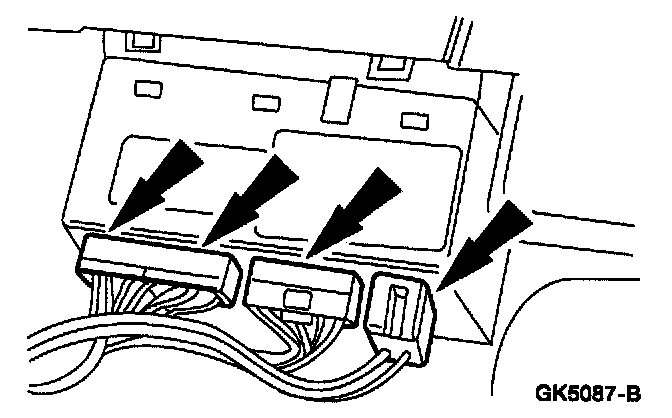

3. Disconnect the electrical connectors from the Driver Door Module (DDM).

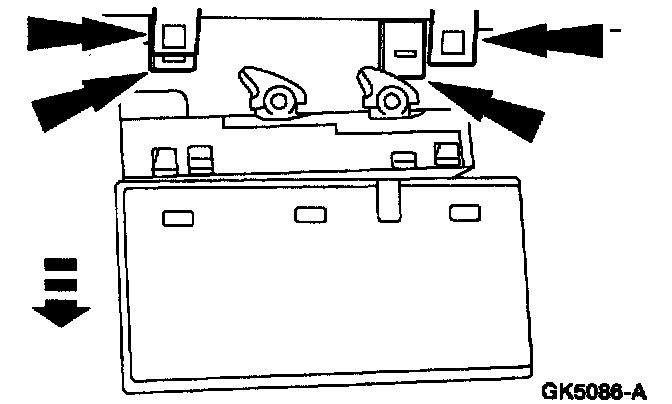

4. Release the retaining clips and remove the DDM.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the New Generation STAR (NGS) Tester into the new module.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 10 miles (16 km) or more to relearn the strategy.

2. Program the keyless entry keypad codes and keyless entry remote transmitters.
