Transmission Connector Layouts

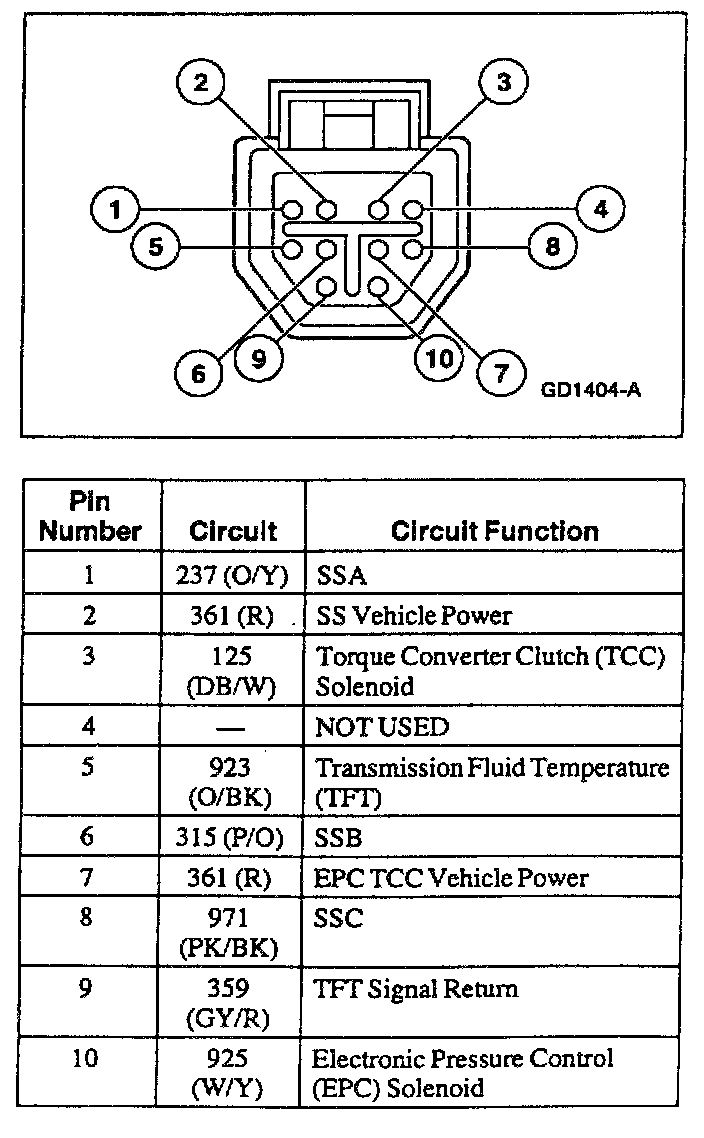

Transaxle Vehicle Harness Connector

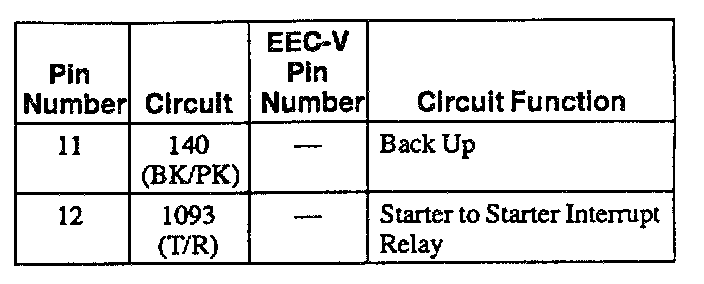

1 Of 2:
2 Of 2:

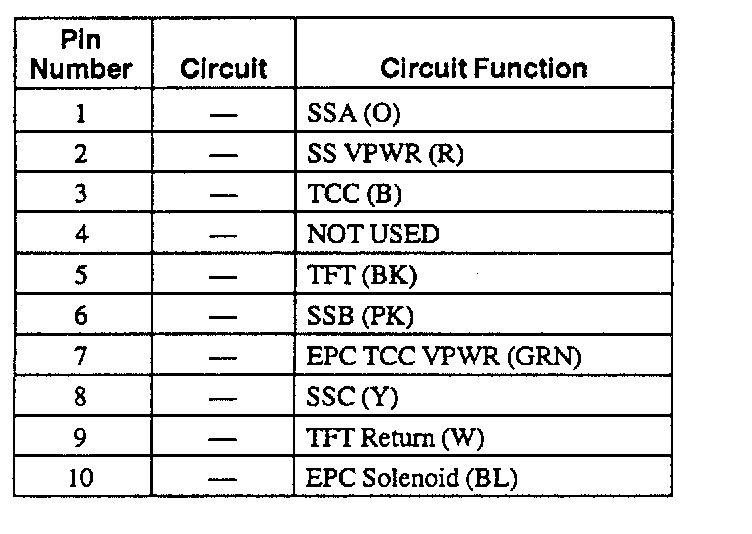

Transaxle Internal Harness Diagram
1 Of 3:
2 Of 3:
3 Of 3:
Digital Transmission Range (TR) Sensor Connector

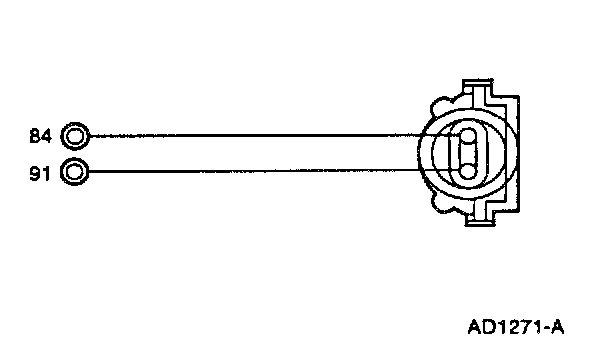

Turbine Shaft Speed Sensor (TSS) Harness Connector
1 Of 2:
2 Of 2:

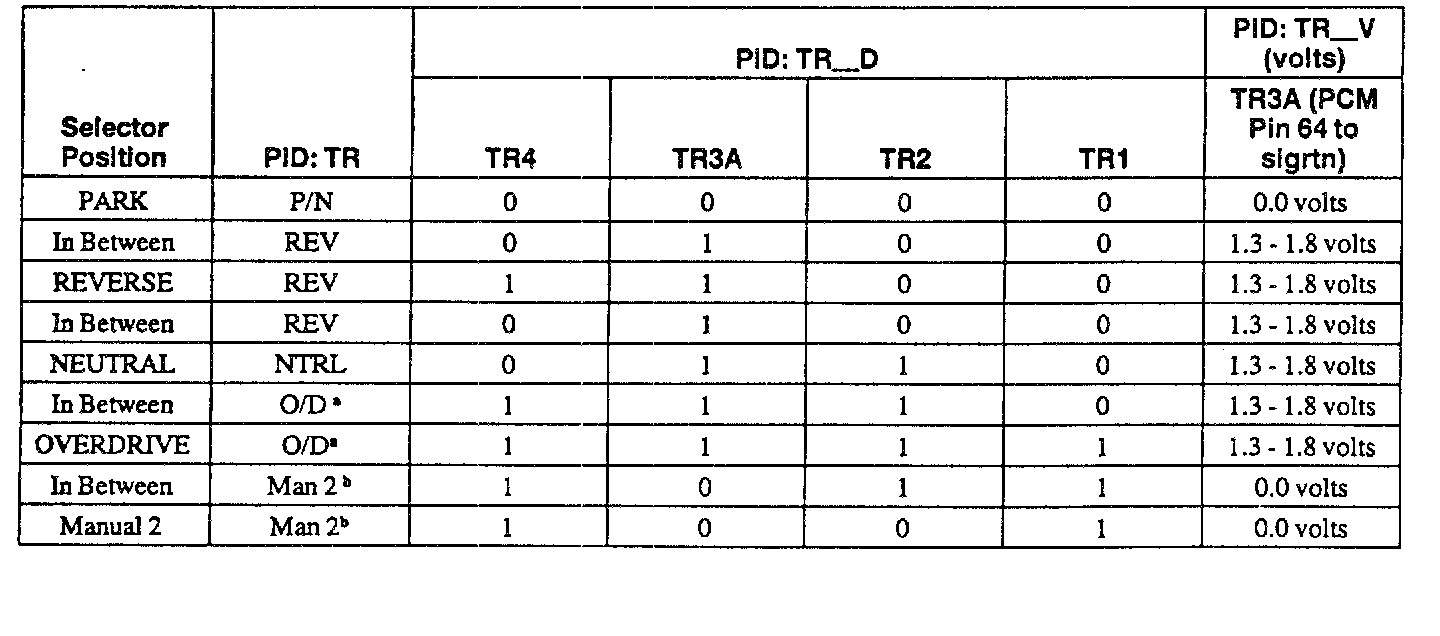

Digital Transmission Range (TR) Sensor Diagnosis Chart
