F: Turbine/Transmission Shaft Speed (TSS) Sensor

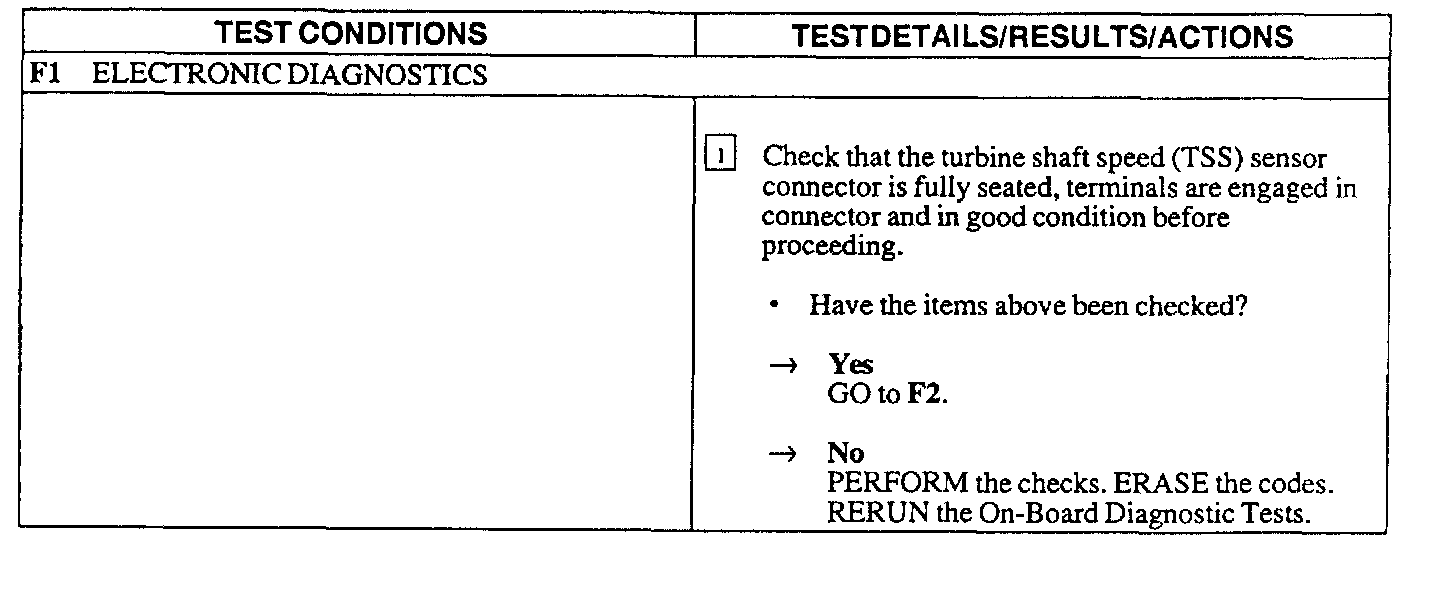

F1:

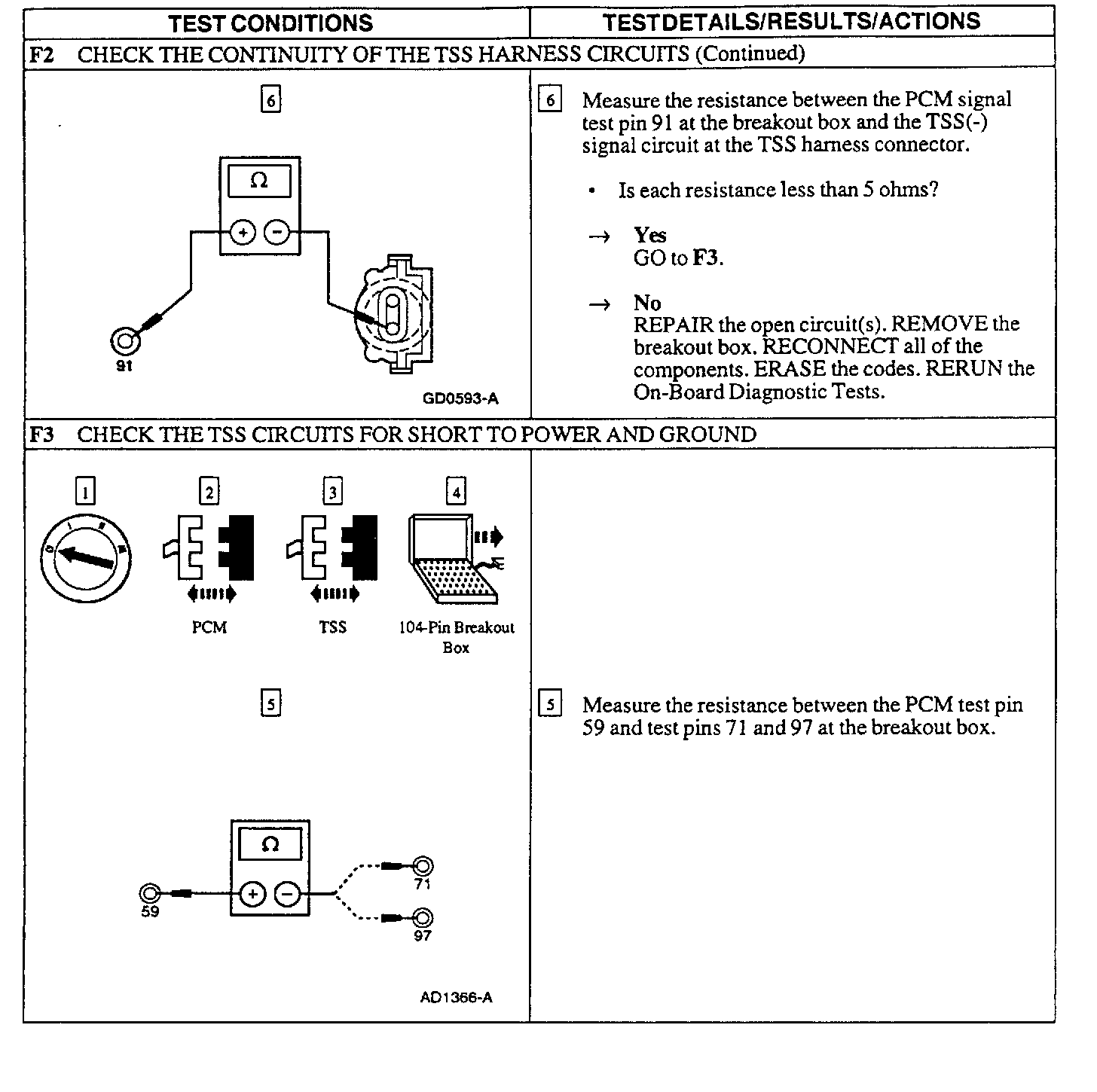

F2:




F2 - F3:

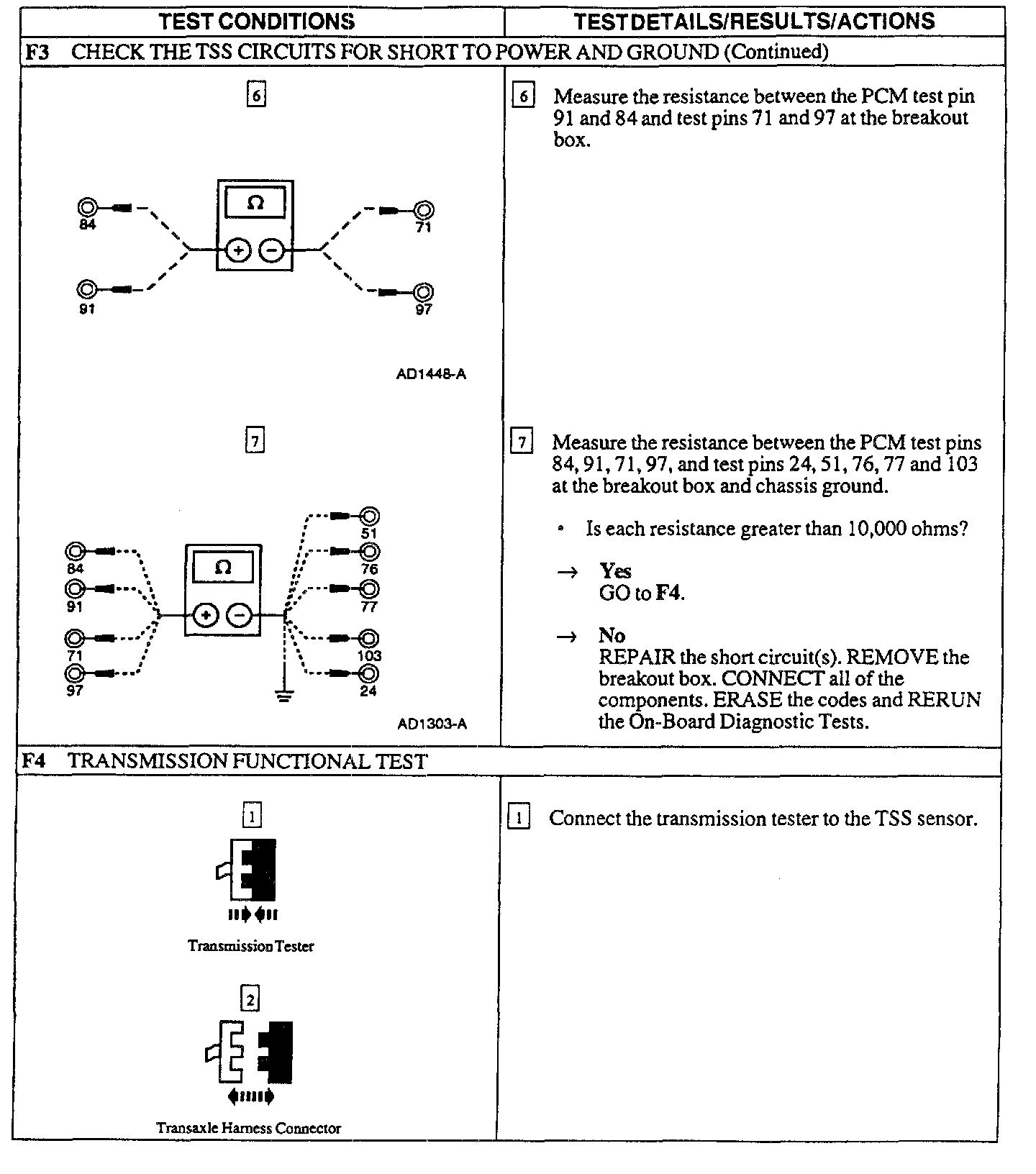

F3 - F4:

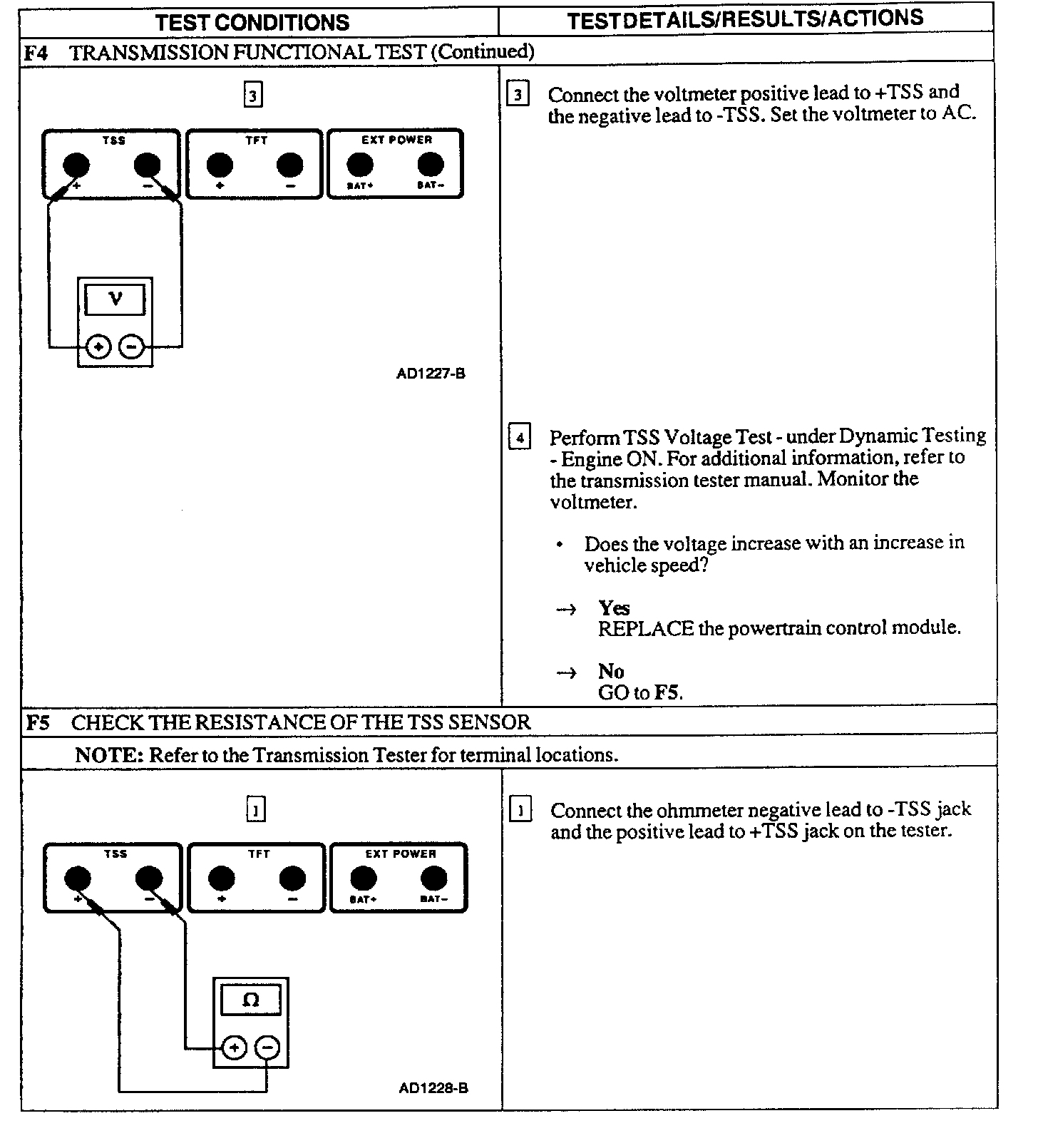

F4 - F4:

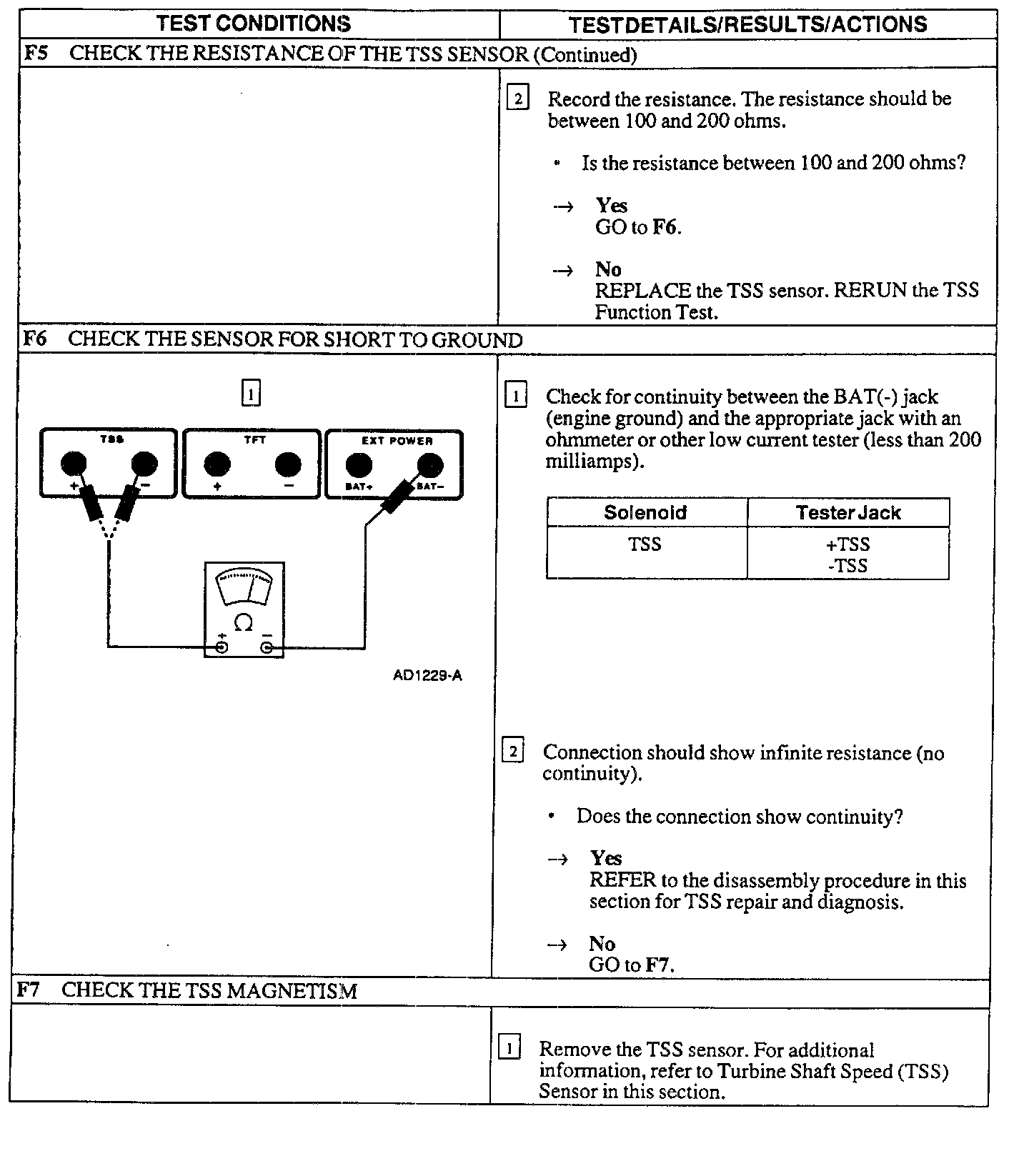

F5 - F7:

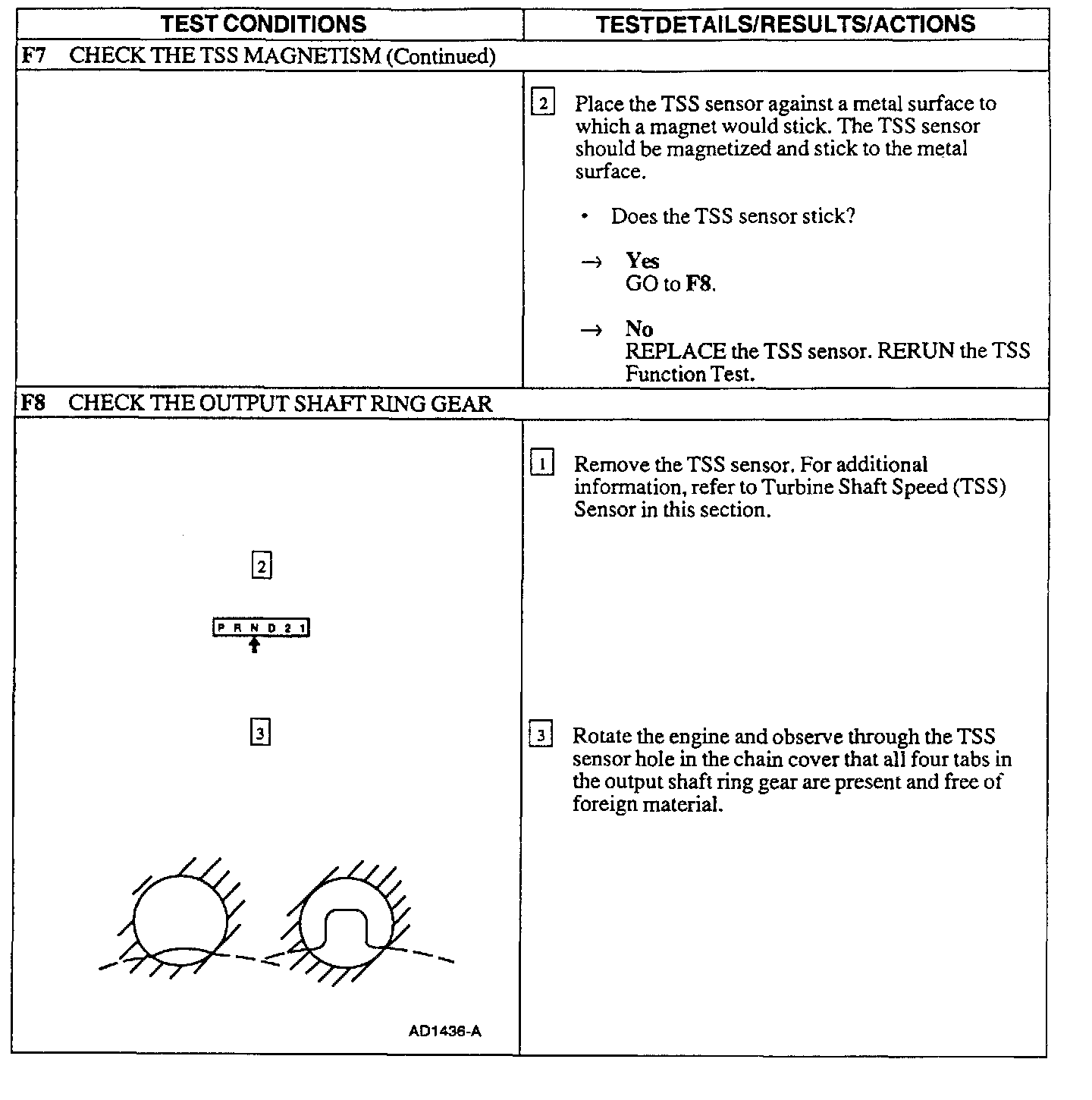

F7 - F8:

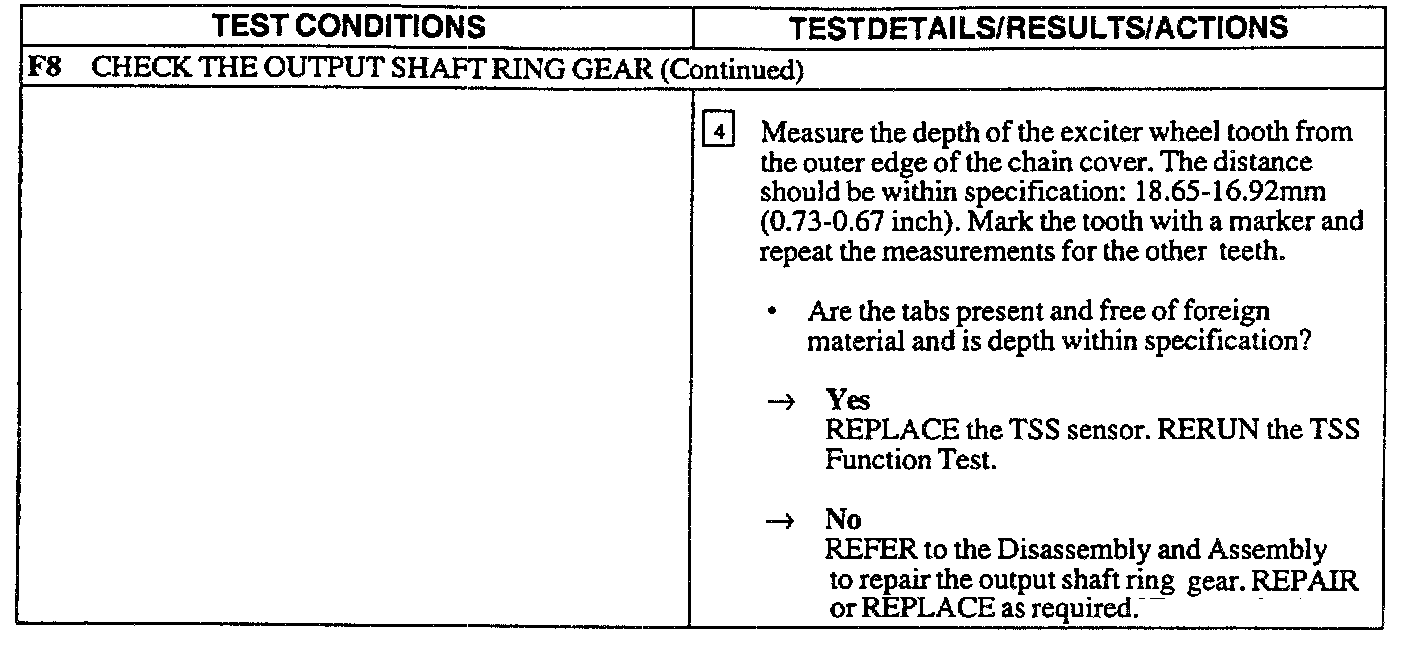

F8:





PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR
