Ignition Coil: Description and Operation

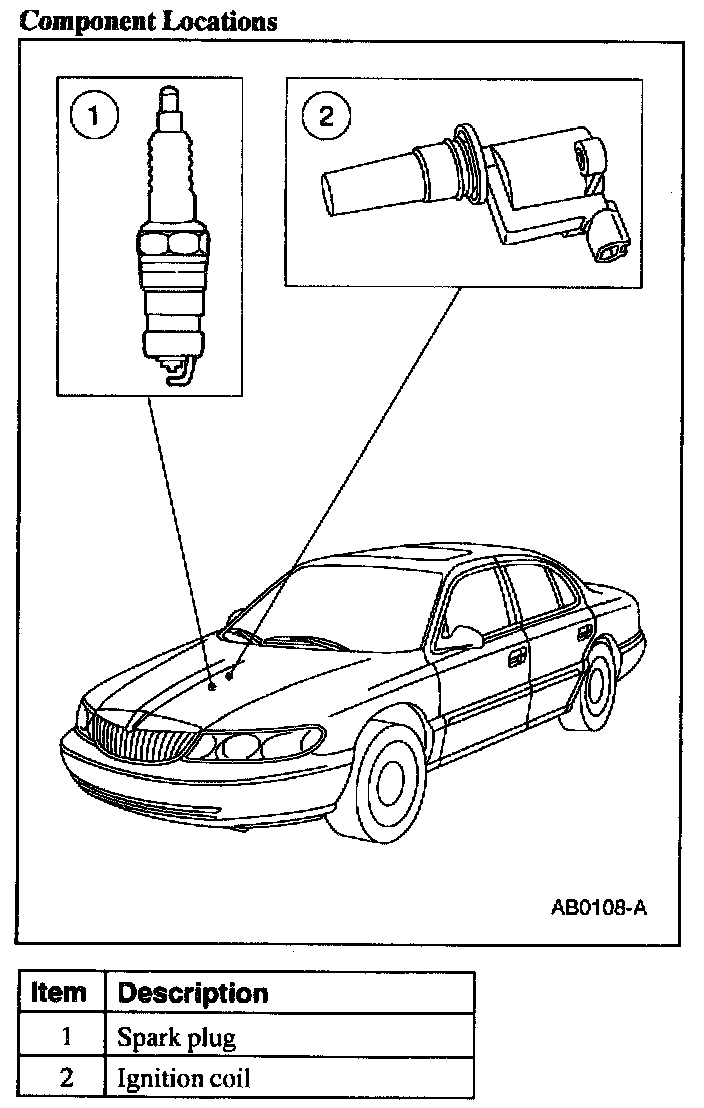

Component Locations:

These engine uses eight separate ignition coils. Each ignition coil is controlled by the powertrain control module.

Each ignition coil is mounted directly above each spark plug and activates its own spark plug in the proper sequence as controlled by the powertrain control module.
