Resonator: Service and Repair

REMOVAL
1. Raise the vehicle.
2. Remove the LH front wheel and tire assembly.







3. Remove the LH front fender splash shield.

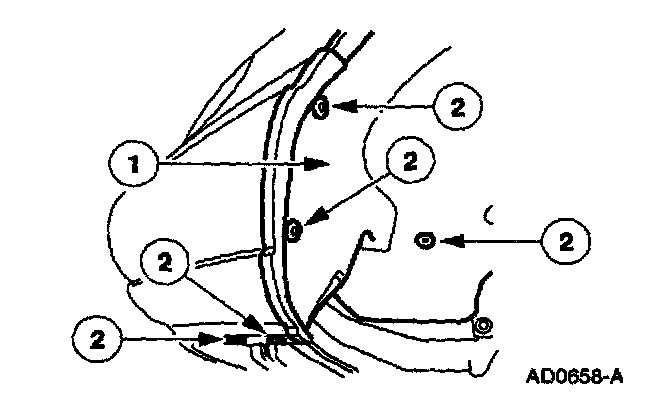

1 Remove the screws.
2 Remove the inner wall.

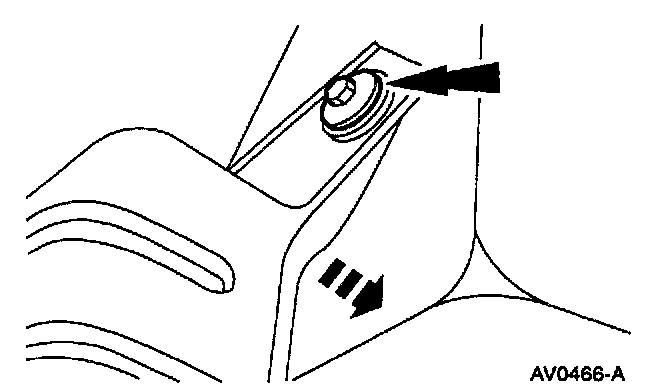

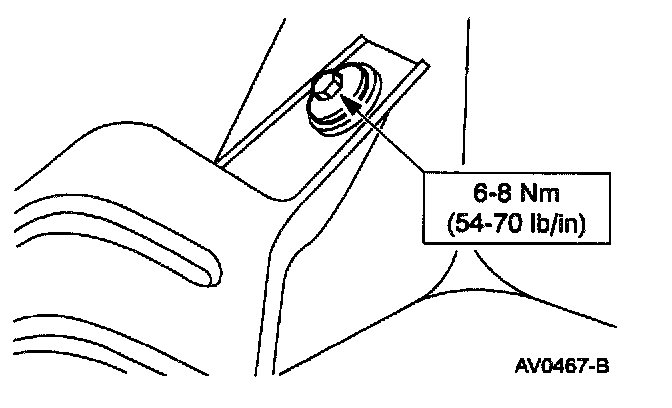

4. Remove the bolts and the engine intake air resonator from the vehicle.

INSTALLATION







1. Follow the removal procedure in reverse order.







2. Install splash shield.

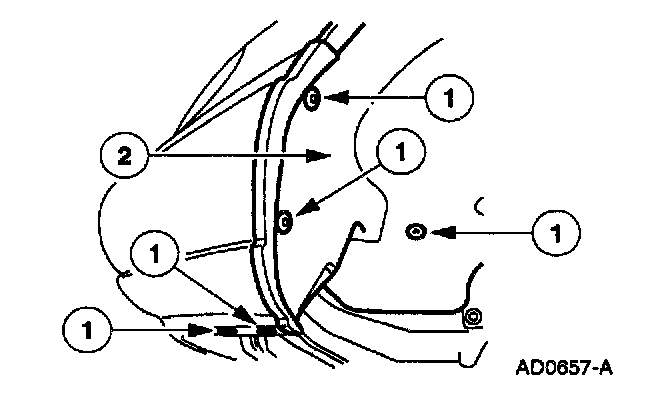

1 Replace splash shield.
2 Tighten screws.
