Accelerator Cable Bracket

REMOVAL
1. Remove the engine air cleaner intake tube and duct.

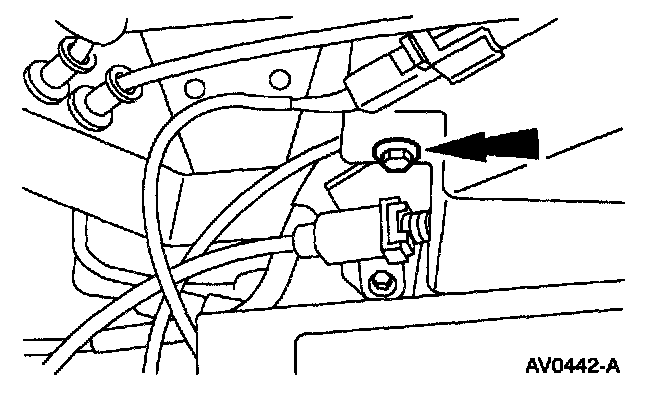

2. Remove the bolt.

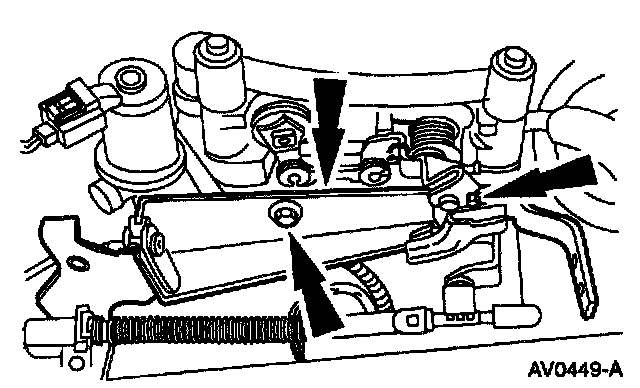

3. Remove the mounting pin and remove the accelerator control splash shield.

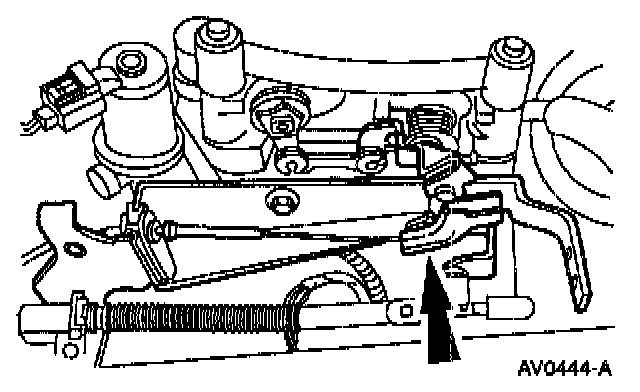

4. Disconnect the accelerator cable from the throttle body.

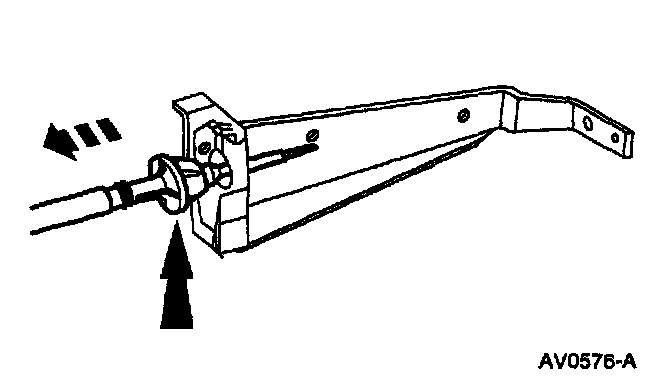

5. Depress the tabs and remove the accelerator cable from the accelerator cable bracket.







6. Remove the bolts and remove the accelerator cable bracket.

INSTALLATION












1. Follow the removal procedure in reverse order.
