Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.







2. Remove the throttle linkage cover.
1 Remove the screw.
2 Remove the push pin.

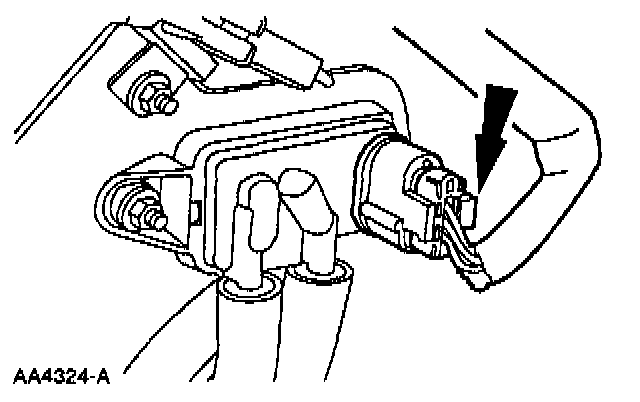

3. Remove the differential pressure feedback EGR.
1 Disconnect the electrical connector.
2 Disconnect the hoses.
3 Remove the nuts and the DPFE.

INSTALLATION







1. Follow the removal procedure in reverse order.
