Power Steering Line/Hose: Service and Repair

REMOVAL

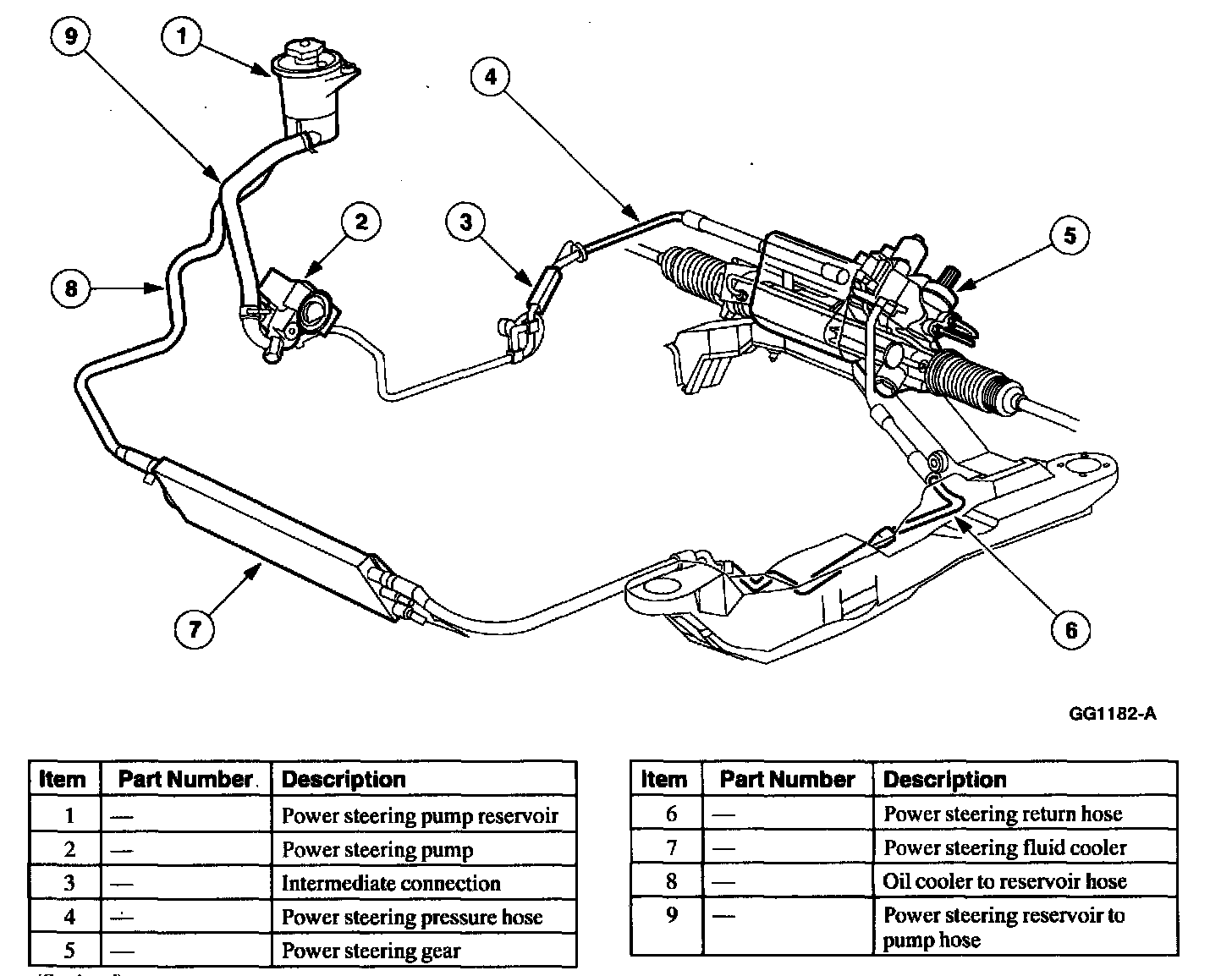

1. Refer to the System View illustration provided for the hose routing and retention points.

INSTALLATION





1. When connecting a fitting with a seal ring, the ring must be replaced.

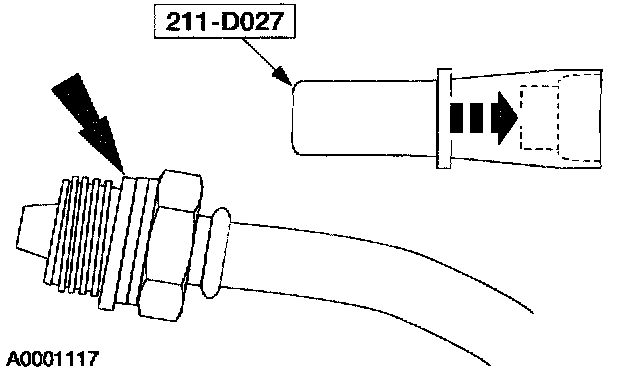

- The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.
2. Fill and leak check the system.
