Compass Module Replacement

REMOVAL

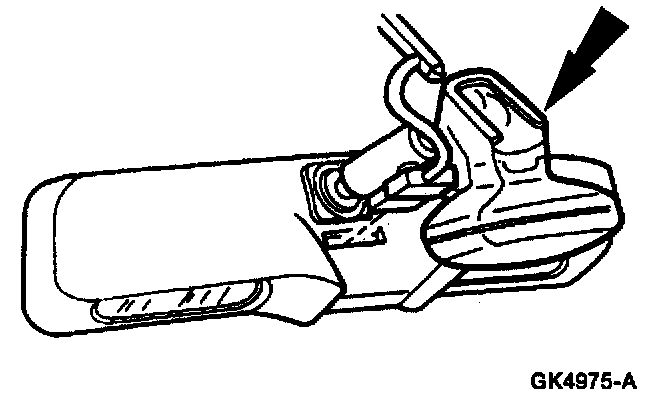

1. Grasp the front of the compass sensor module and gently pull downward.

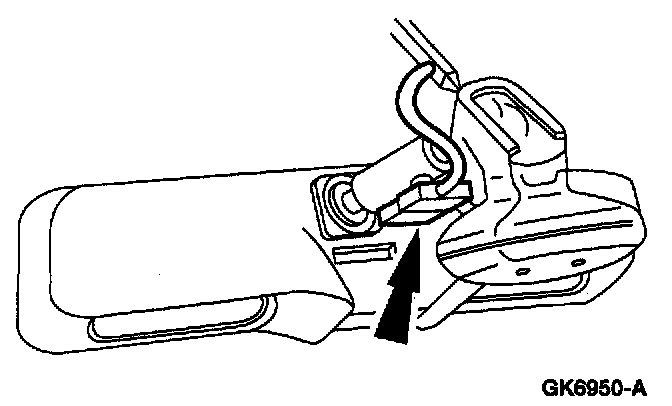

2. Disconnect the electrical connector and remove the compass sensor module.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When installing the compass sensor module, check the compass zone adjustment and calibrate the compass.
