Electronic Climate Control

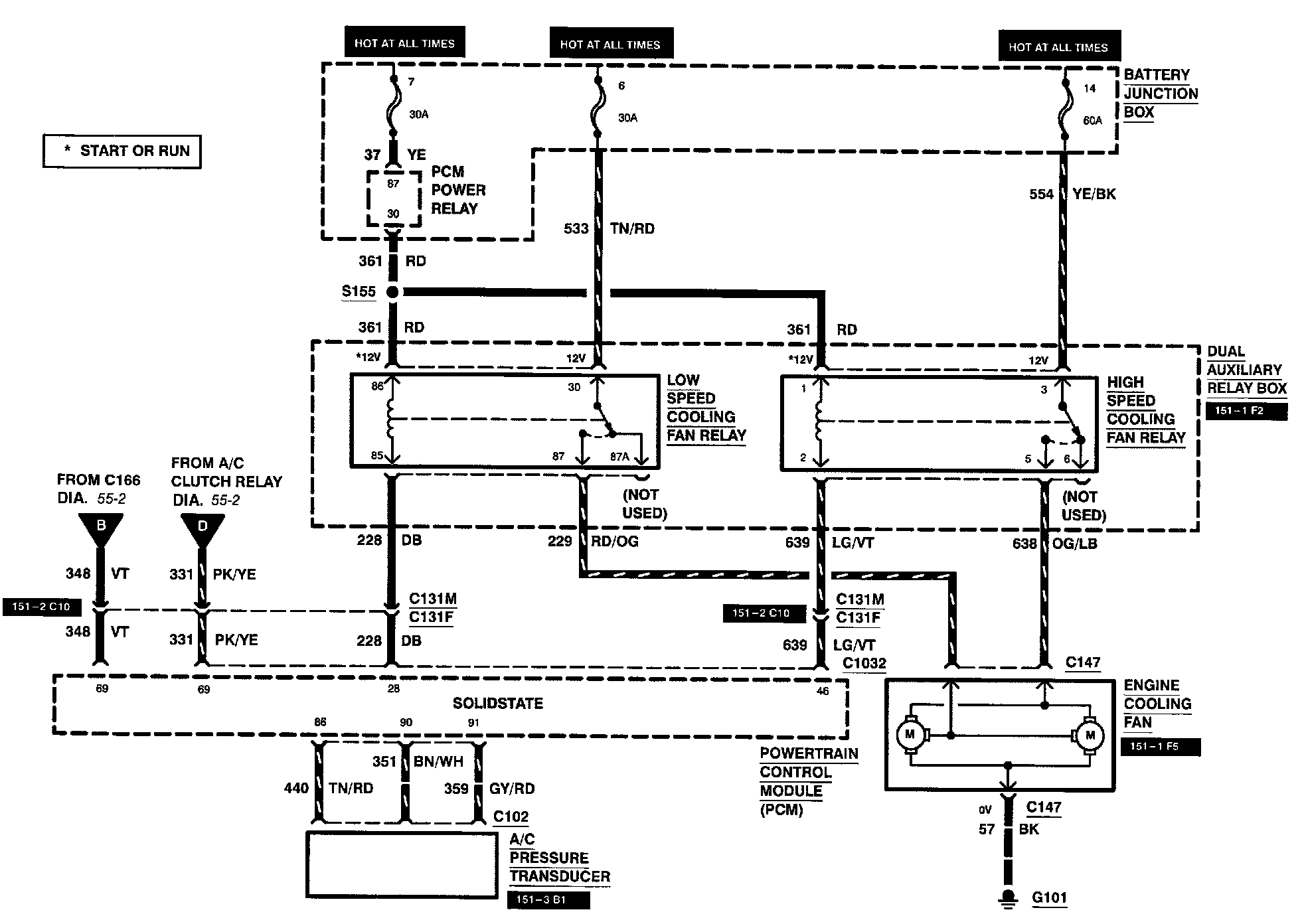

Diagram 55-1:

A/C Pressure Transducer
Battery Junction Box
Dual Auxiliary Relay Box
Engine Cooling Fan
Fuse 6
Fuse 7
Fuse 14
High Speed Cooling Fan Relay
Low Speed Cooling Fan Relay
Powertrain Control Module
Powertrain Control Module Power Relay

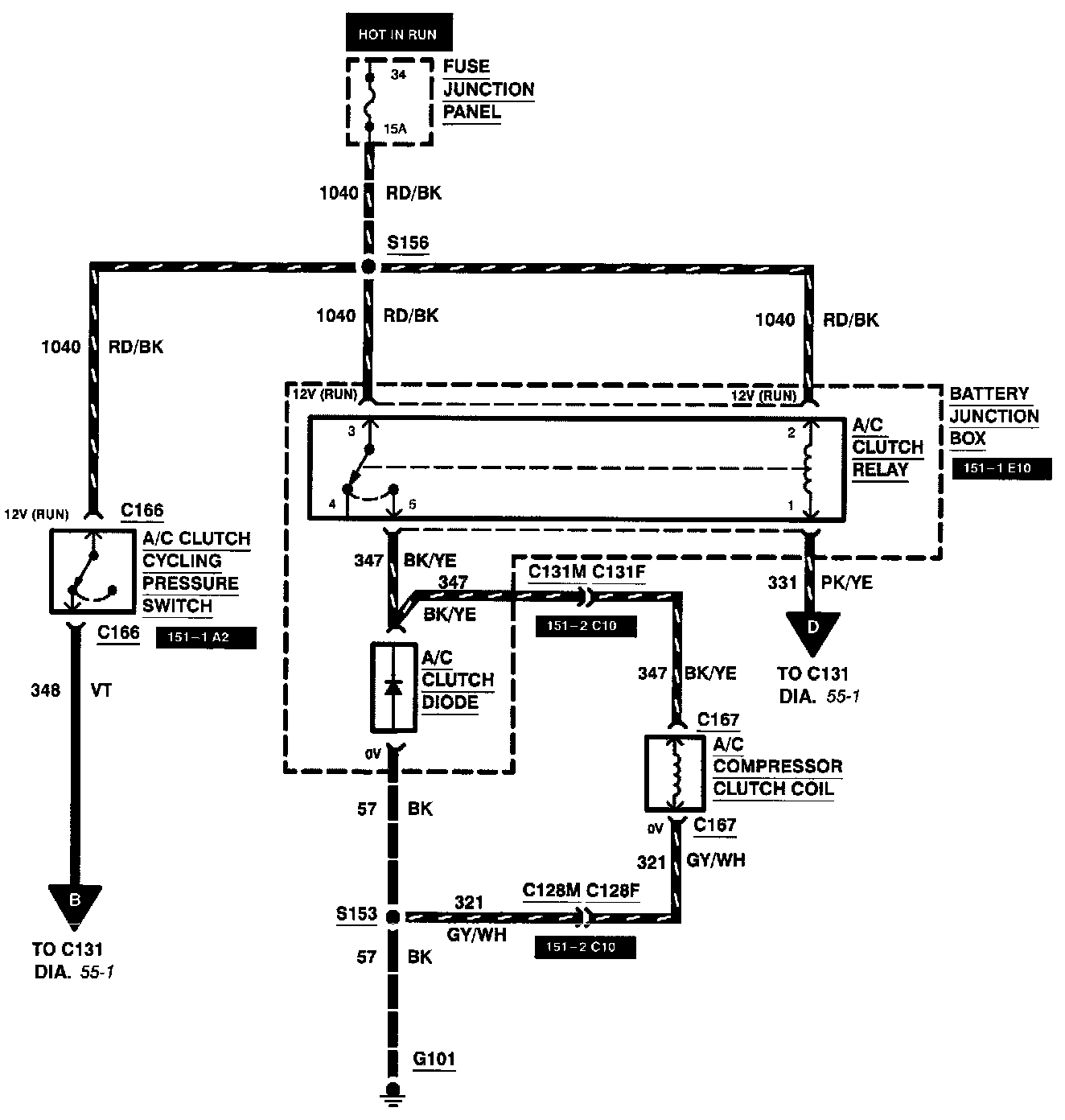

Diagram 55-2:

A/C Clutch Diode
A/C Clutch Cycling Pressure Switch
A/C Clutch Relay
A/C Compressor Clutch Coil
Battery Junction Box
Fuse 34
Fuse Junction Panel

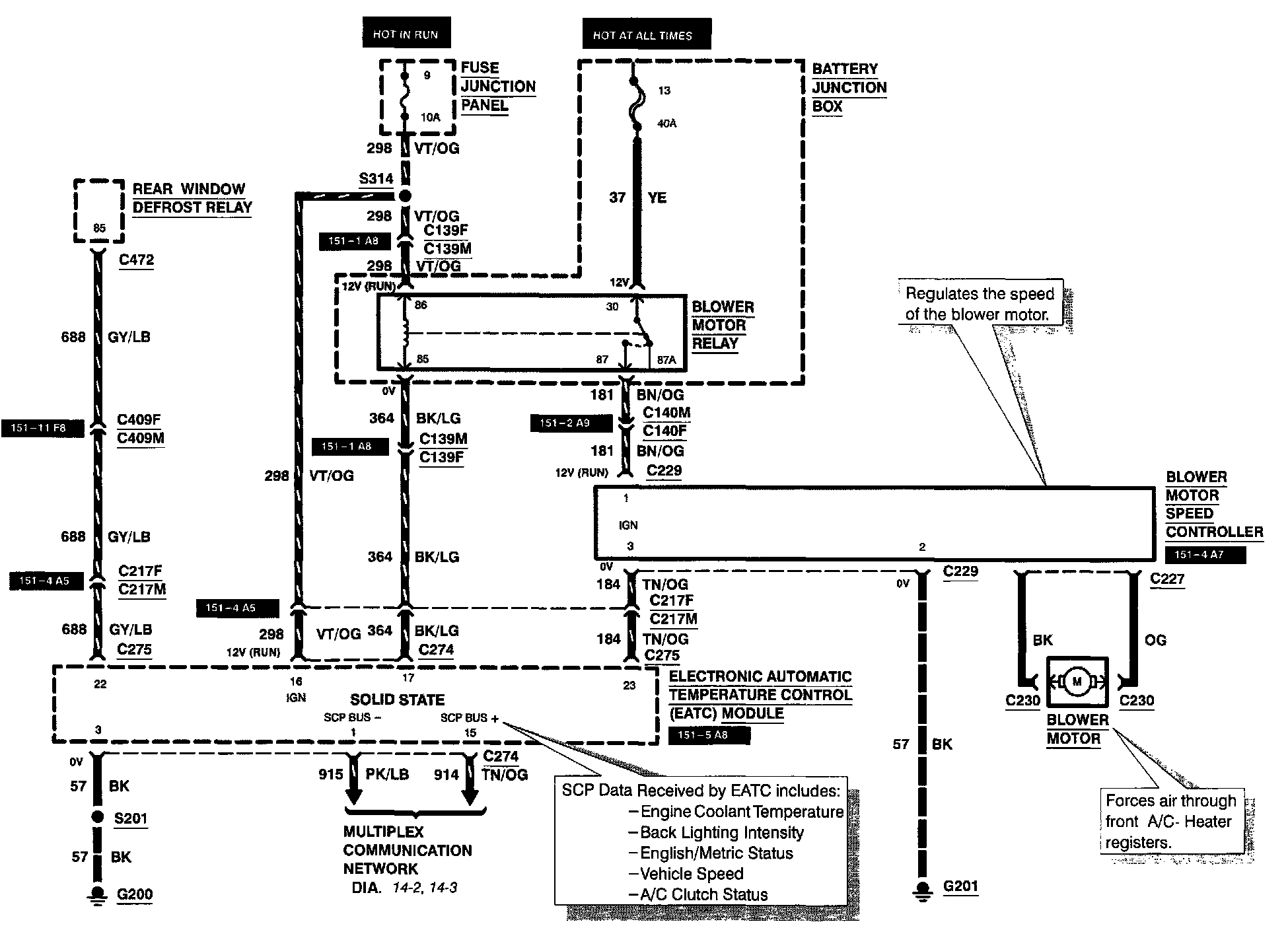

Diagram 55-3:

Battery Junction Box
Blower Motor
Blower Motor Relay
Blower Motor Speed Controller
Electronic Automatic Temperature Control Module
Fuse 9
Fuse 13
Fuse Junction Panel
Rear Window Defrost Relay

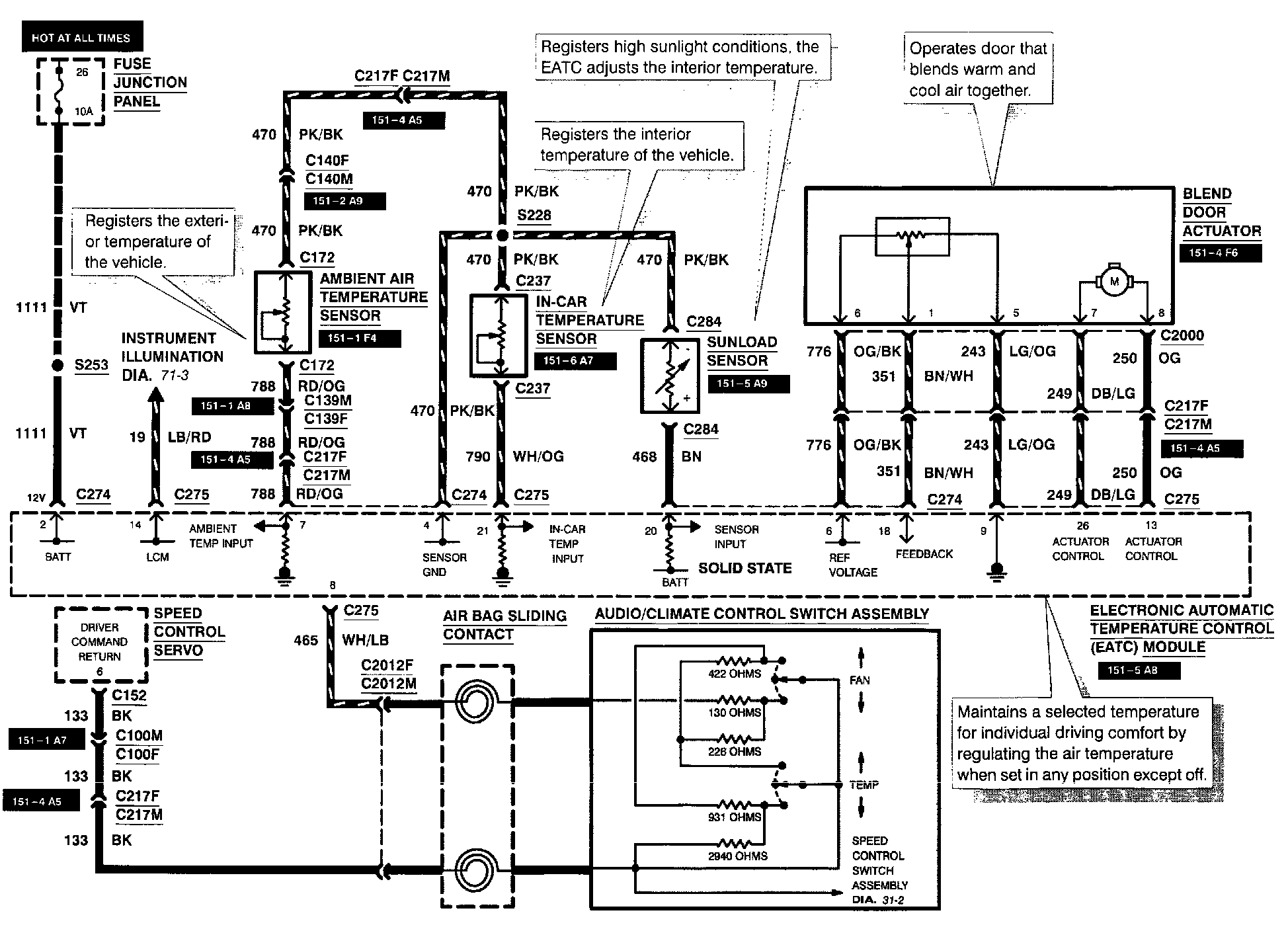

Diagram 55-4:

Air Bag Sliding Contact
Ambient Air Temperature Sensor
Audio/Climate Control Switch Assembly
Blend Door Actuator
Electronic Automatic Temperature Control Module
Fuse 26
Fuse Junction Panel
In-Car Temperature Sensor
Speed Control Servo
Speed Control Switch Assembly
Sunload Sensor
