Cabin Air Filter / Purifier: Service and Repair

REMOVAL

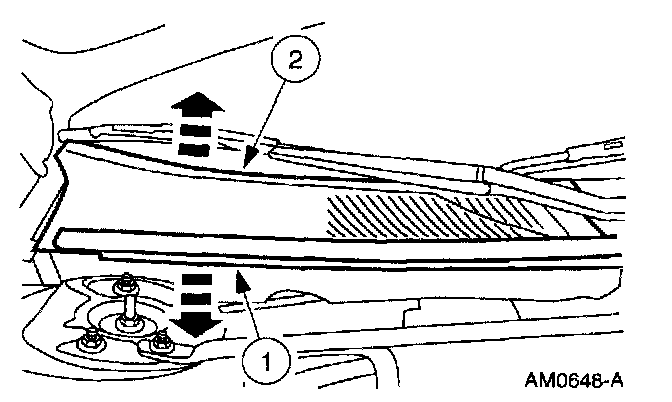

1. Remove the RH cowl vent screen.
1 Pull the hood pad away from the RH cowl vent screen.
2 Remove the RH cowl vent screen.

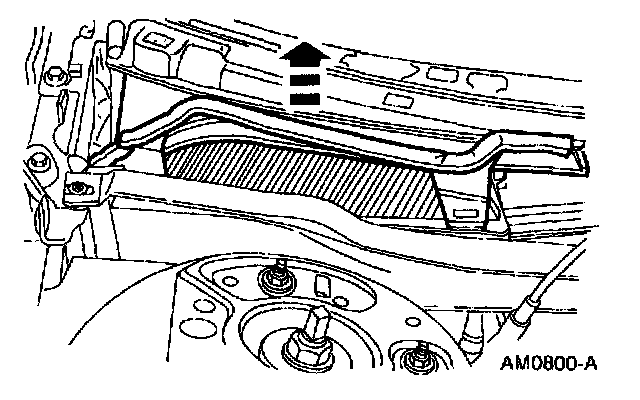

2. Remove the water shield.

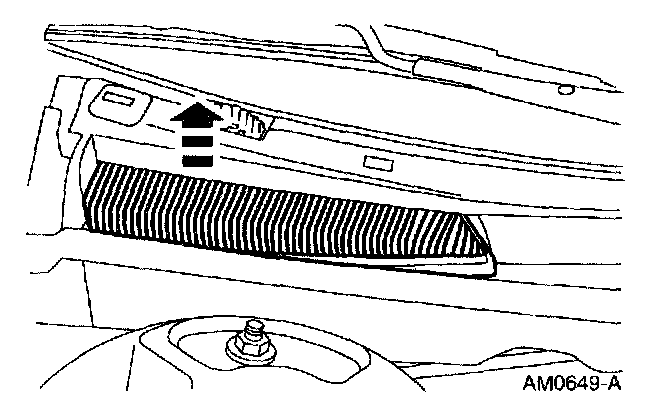

3. Remove the filter from the housing.

INSTALLATION
1. Follow the removal procedure in reverse order.
