Right

REMOVAL

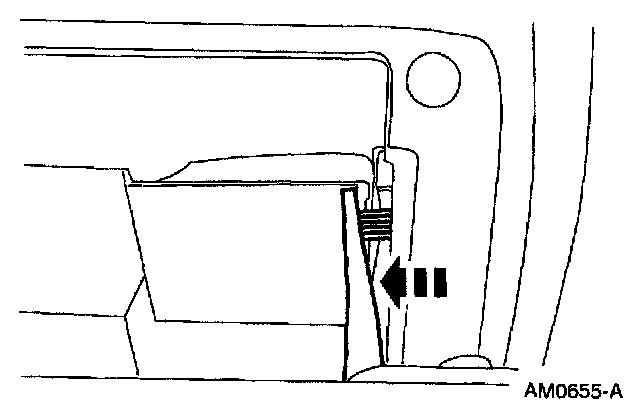

1. Open the glove compartment door and disengage the glove compartment door check cable.







2. Press in to disengage the stops and lower the glove compartment door to the floor.







3. Carefully pry out the lower assembly.

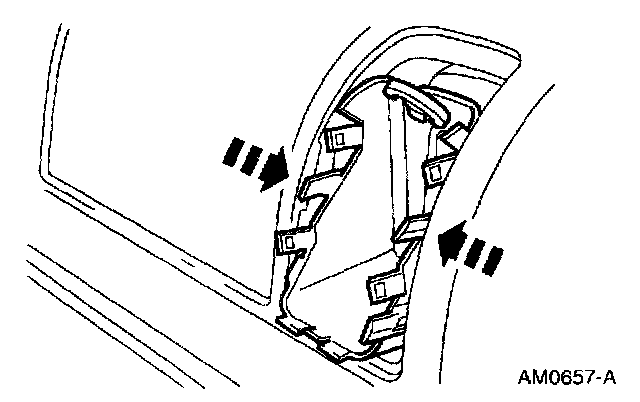

4. Working through the glove compartment opening, press in on the sides of the A/C register and remove the A/C register from the instrument panel.

INSTALLATION

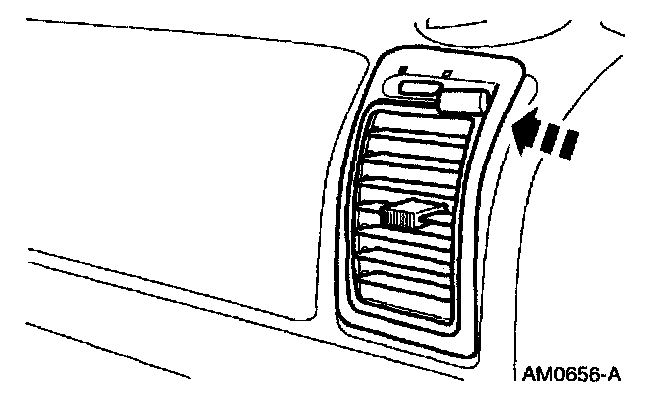

1. Install the louver assembly to the A/C register.







2. Install the A/C register into the instrument panel.







3. Connect the glove compartment door check cable and close the glove compartment.
