Left

REMOVAL

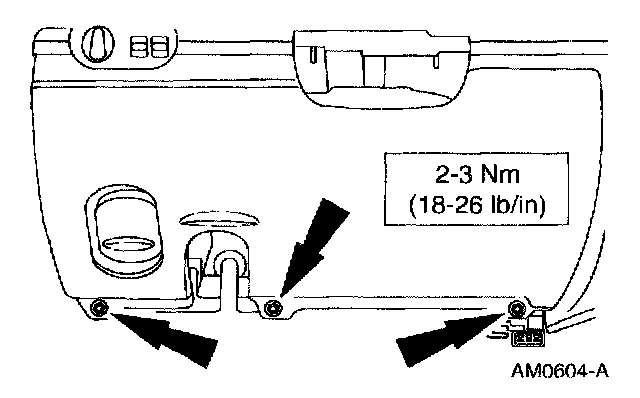

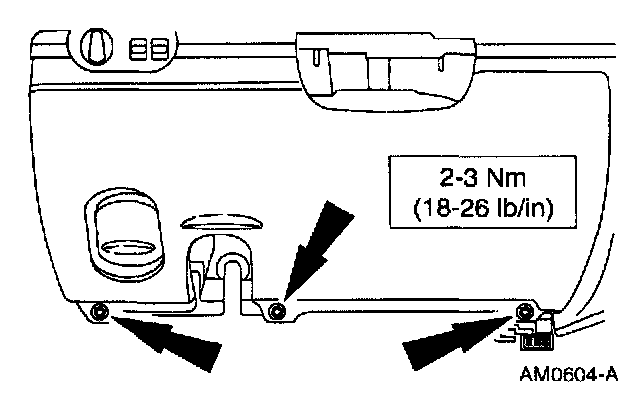

1. Remove the screws and lower the instrument panel steering column cover.







2. Reposition the instrument panel finish panel.

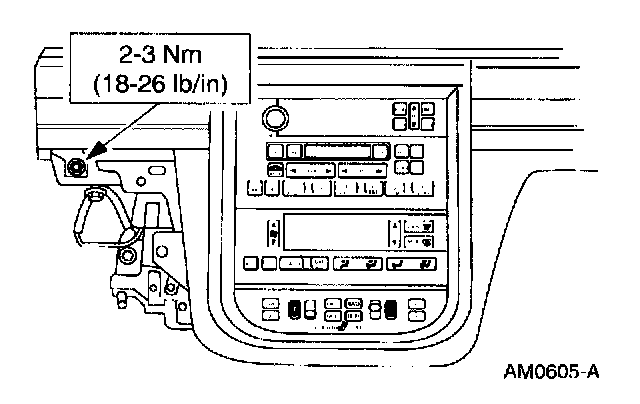

1 Remove the screw.
2 Disengage the clips and reposition the finish panel away from the instrument panel.

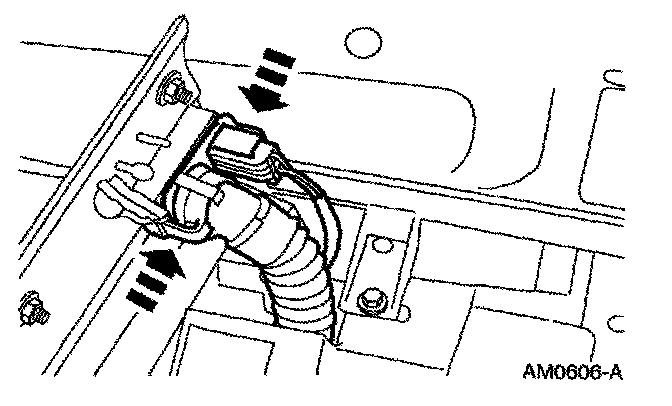

3. Push in on the retaining tabs and remove the automatic temperature Control sensor hose and elbow from the finish panel.

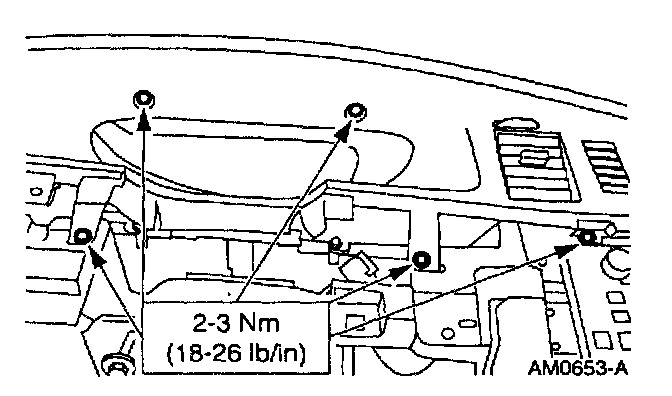

4. Remove the screws and reposition the cluster opening finish panel.

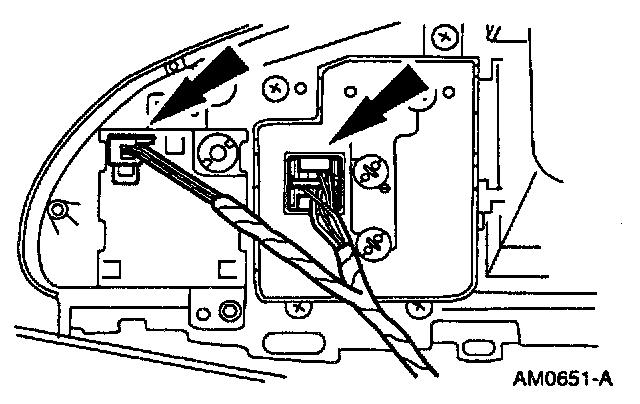

5. Disconnect the electrical connectors.

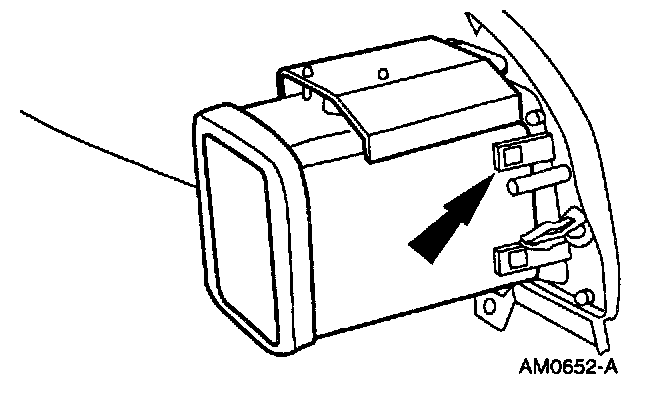

6. Disengage four retaining clips and remove the A/C register.

INSTALLATION

















1. Follow the removal procedure in reverse order.
